Buy Mulin ML19-038A1 Recliner Actuator, 305mm Stroke

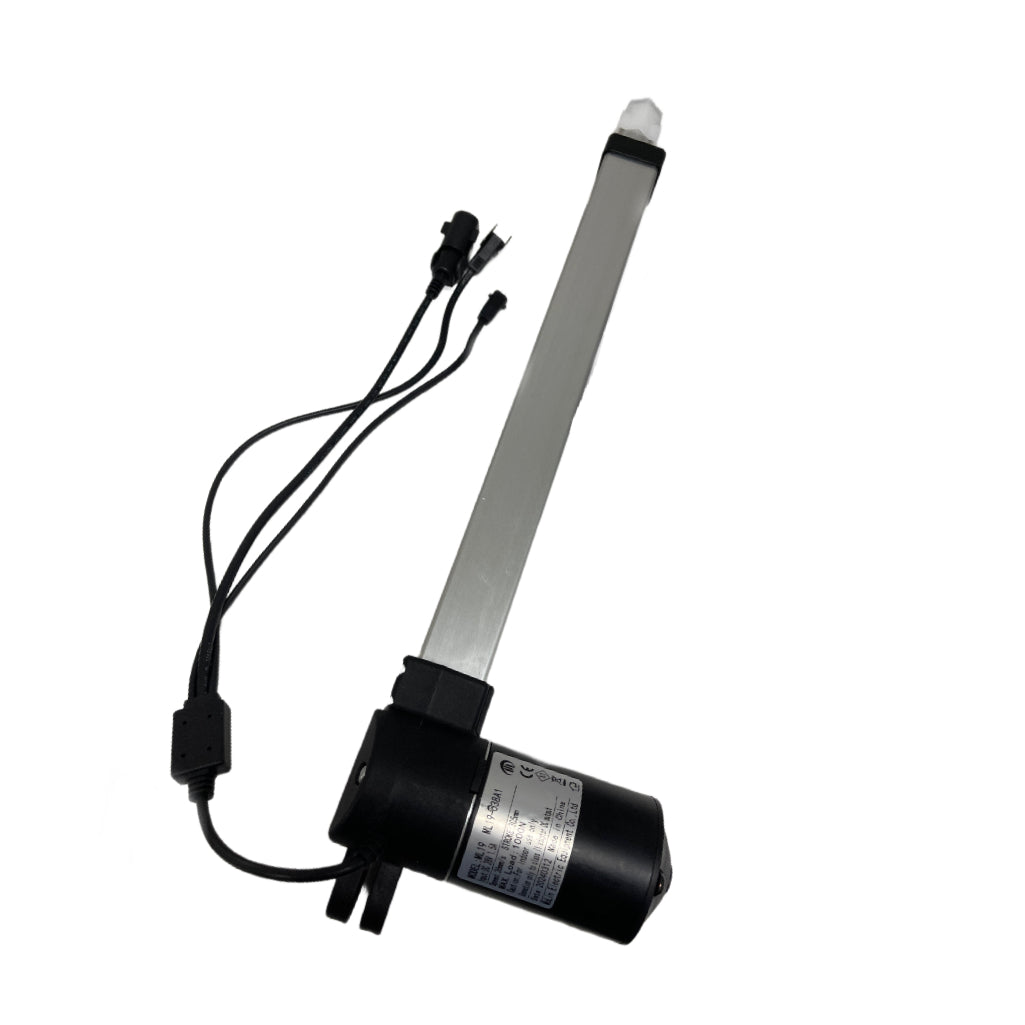

Genuine Mulin ML19-038A1 recliner actuator

Replace a matching electric recliner motor with this Mulin ML19-038A1 actuator from the ML19-038 family. Its 305 mm stroke and integrated W-style wiring must match your original installation. Compare the full model, mounting dimensions, connector layout and electrical system before ordering.

Technical specifications

• Model: ML19-038A1.
• Input: DC 24V–28V.
• Stroke: 305 mm.
• Installation dimension: Approximately 461 mm between mounting points. Compare your original using the same reference points and actuator position.
• Wiring: three cable branches in an integrated W-style configuration.
• Structure: aluminium frame with black plastic housing.

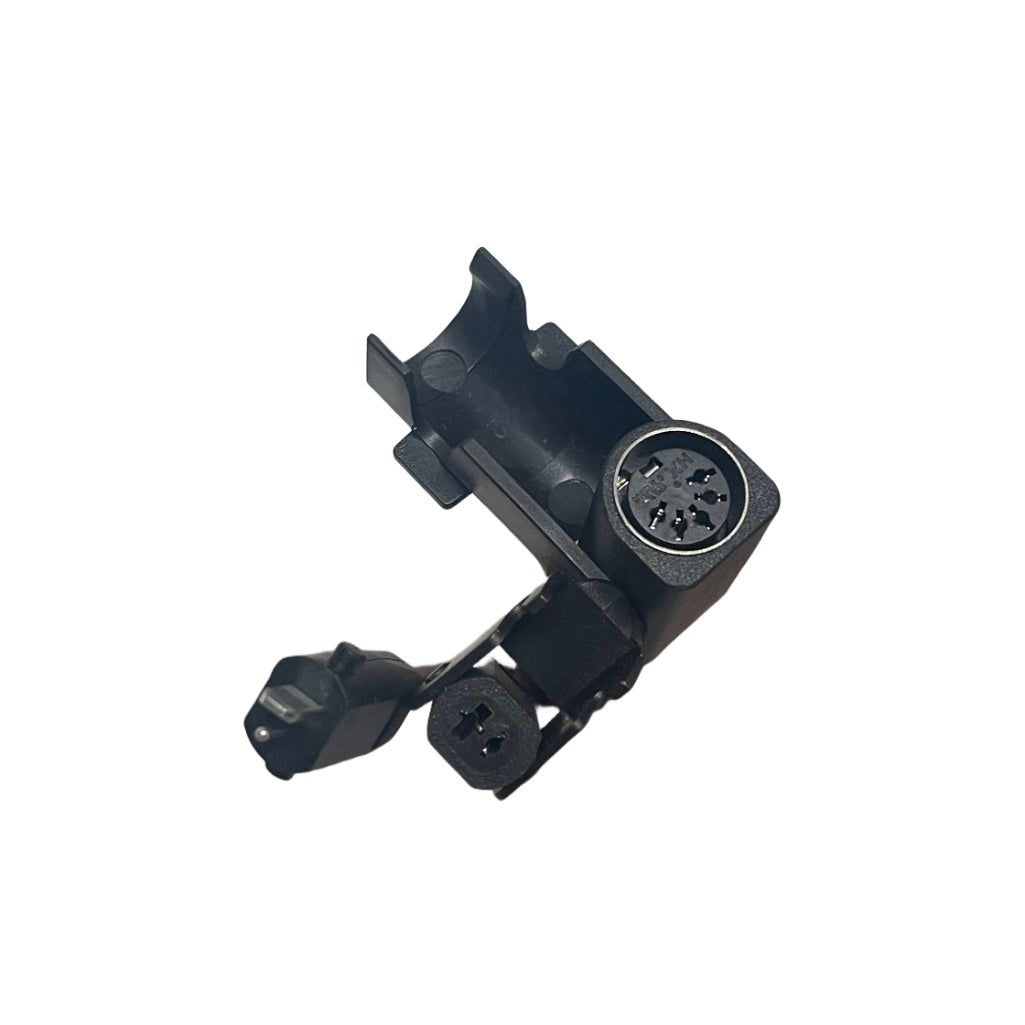

Connections and wiring

• Hand control/switch: one female five-pin connector.
• Power input: one male two-pin flat/round OI plug for the matching transformer line.
• Secondary/auxiliary: one female two-pin OI connection for a compatible sub-motor or accessory supply in a matching installation.

Possible auxiliary uses include compatible cup-holder lighting or USB assemblies. The presence of this connection does not establish that every accessory can be connected directly. Match the original wiring layout and electrical requirements; do not modify wiring or force plugs.

Check compatibility before ordering

Match the complete ML19-038A1 reference, 305 mm stroke, installation dimension, mounting ends, fixing positions and all three connections. Other ML19-038 family models are not automatically interchangeable. If unsure, send CouchGuard photos of the original model label, full actuator, mounting points and connector faces.

Replacement guidance

Disconnect mains power and any battery supply before replacing the actuator. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Plug-and-play replacement applies only when the original system, mounts and connections match.

Frequently asked questions

What model is supplied?
Mulin ML19-038A1, Check your part number for compatibility.

What is the stroke?
305 mm.

What installation dimension is specified?
Approximately 461 mm between mounting points. Compare at the same actuator position and measurement points.

What input voltage is specified?
DC 24V–28V. Match your original electrical system.

What connections does it have?
One female five-pin switch connector, one male two-pin OI power plug and one female two-pin OI auxiliary connection.

Can the auxiliary connection power any USB port or light?
No. Use only an electrically compatible assembly in a matching wiring configuration.

Will any ML19-038 family motor fit?
No. Compare the exact suffix, stroke, dimensions, mounts and connections.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
