Buy Mulin ML20-023 Recliner Headrest Actuator, 50mm Stroke

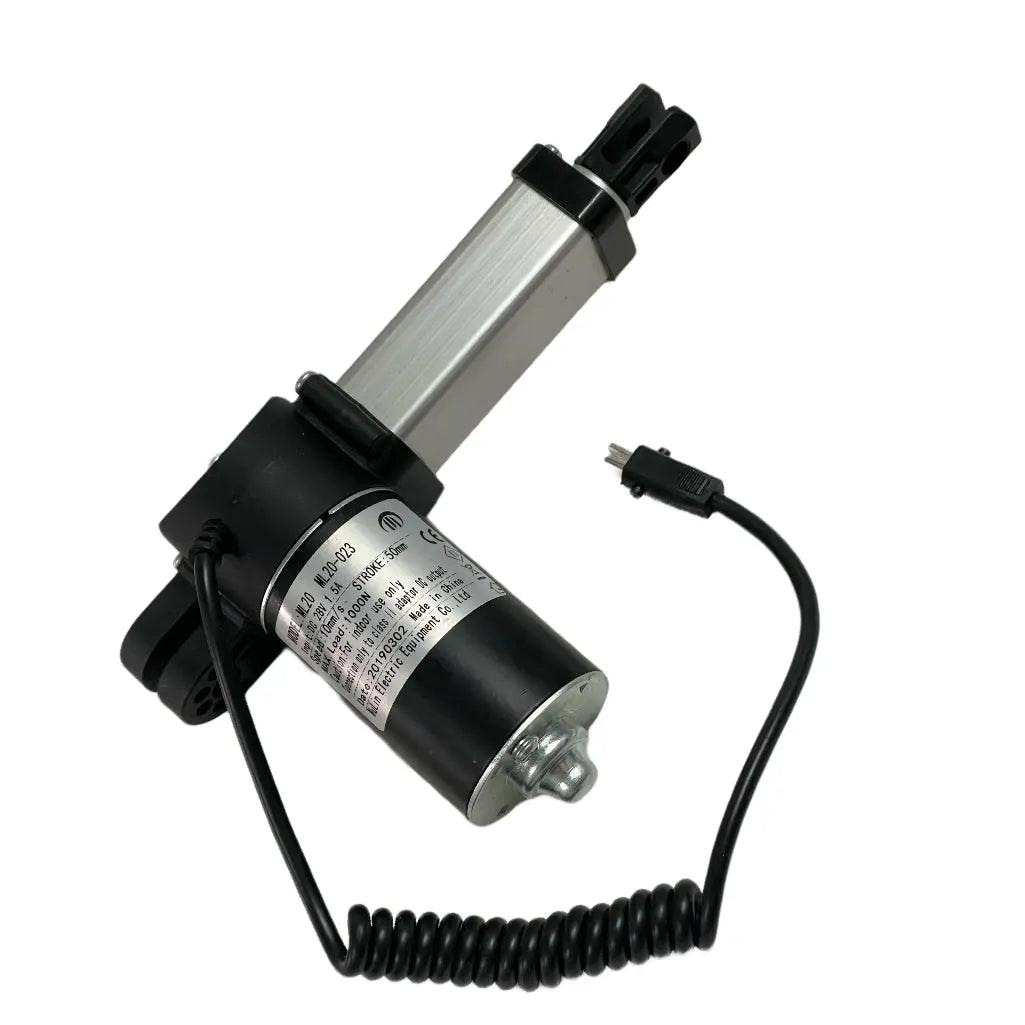

Genuine Mulin ML20-023 recliner headrest actuator

The Mulin ML20-023 is a replacement electric actuator motor for matching recliner headrest installations. Its 50 mm stroke provides linear movement in a compatible mechanism. Supplied with a power lead and one male two-pin I0 connection, it requires matching mounts, dimensions and electrical wiring; it is not a universal-fit motor.

Manufacturer-label specifications

• Exact model: ML20-023, within the ML20 series.
• Input: DC 28V 1.5A.
• Stroke: 50 mm.
• Speed: 10 mm/s.
• Maximum actuator load: 1000 N. This is not the chair's occupant-weight rating.
• Indoor use only.
• Connect only to a matching Class II adapter DC output, as specified on the label.

Connection and compatibility checks

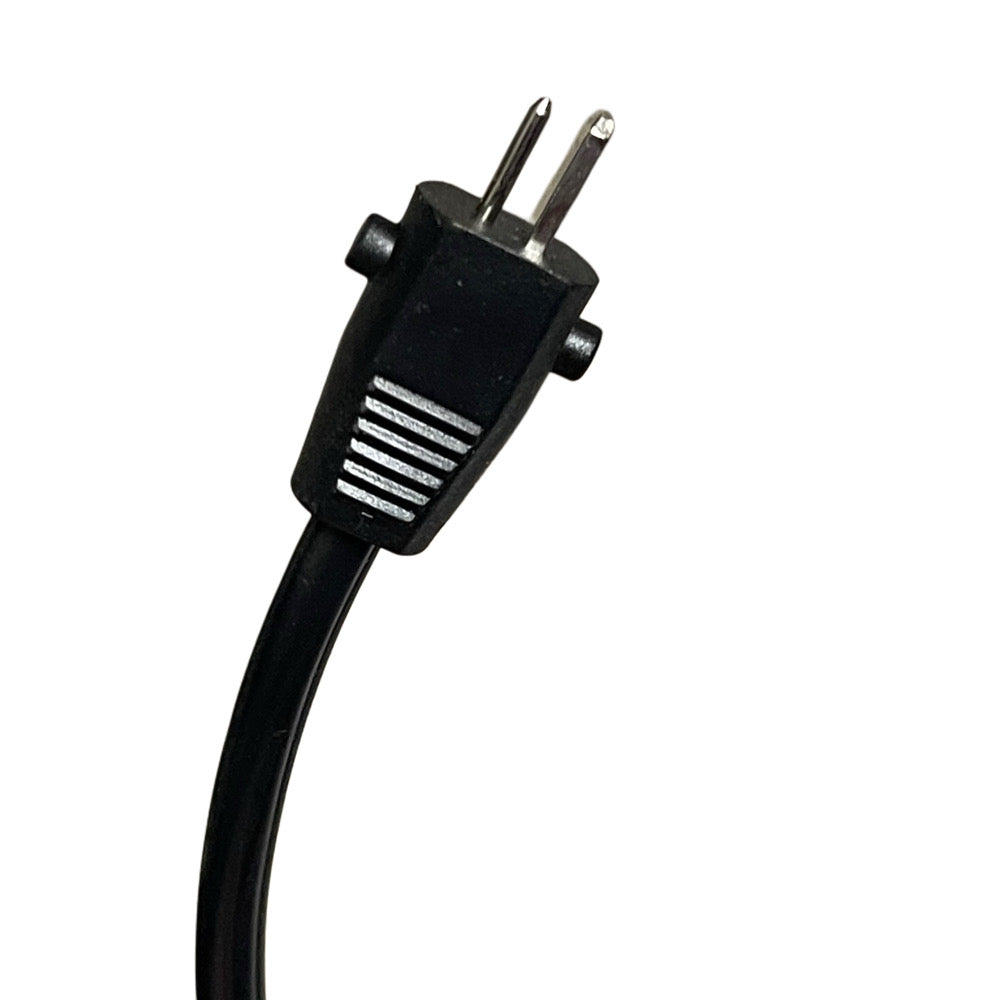

The motor has one male two-pin I0 power connection. Compare the connector face, polarity and lead routing with your original motor. Plug-and-play replacement applies only when the electrical system and mechanical installation match.

• Match the full ML20-023 reference, not only the ML20 family.
• Compare the 50 mm stroke, closed and extended mounting-point distances and fixing ends.
• Check mounting positions, available clearance, plug and electrical requirements.


If unsure, send CouchGuard clear photos of the original model label, complete actuator, mounting points and connector face for help identifying a suitable replacement.

Fault checks and safe replacement

A headrest that will not move does not by itself confirm a failed actuator. The power supply, switch, wiring or mechanism may also require checking. Disconnect mains power and any battery supply before replacement. Keep clear of moving mechanisms and use a qualified repairer if you cannot safely support or repair the chair. Do not force plugs, modify wiring or connect the actuator directly to mains power.

Frequently asked questions

What is the ML20-023 used for?
It is a replacement actuator for matching electric recliner headrest installations.

What electrical rating is printed on the label?
DC 28V 1.5A. Match the original system and use a suitable Class II adapter DC output.

What are its stroke and speed?
The label specifies a 50 mm stroke and 10 mm/s speed.

What does 1000 N mean?
It is the printed maximum actuator load, not the chair's occupant capacity.

How many connections does it have?
One male two-pin I0 power connection. Match the connector face and polarity with the original motor.

Will it fit every recliner headrest?
No. Match the exact model, stroke, mounting dimensions, fixing ends and electrical connection.

Does a non-moving headrest always need a new motor?
No. Switch, power-supply, cable and mechanism faults can also stop movement. Identify the fault before ordering.

Can it be used outdoors?
No. The manufacturer label specifies indoor use only.
