Buy Mulin ML28-018C Recliner Footrest Actuator, 342mm Stroke

Genuine Mulin ML28-018C recliner footrest actuator

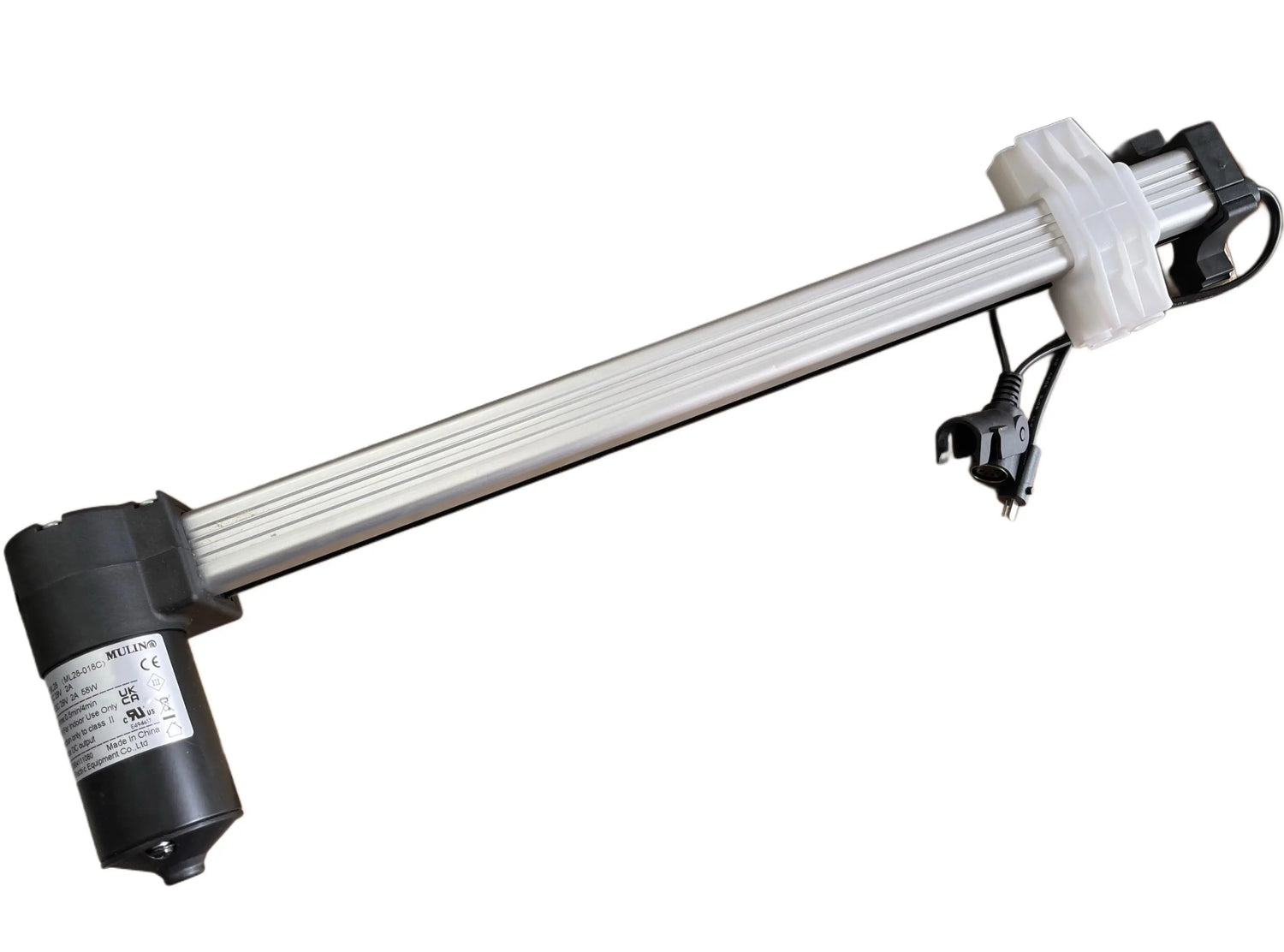

The Mulin ML28-018C is a replacement linear actuator with 342 mm stroke for matching footrest installations in powered recliners and lift chairs. Use the exact ML28-018C label reference and compare the complete installation before ordering. It is not a universal-fit replacement.

Electrical specifications

• Manufacturer model: ML28-018C, within the ML28 family.
• Label input: DC 29V 2A.
• The label also lists output DC 29V 2A, 58W.
• Intermittent duty: 0.5 minute ON followed by 4 minutes OFF.
• Indoor use only.
• Connect only to a suitable Class II adapter DC output, as specified on the label.

Performance and dimensions

• Stroke: 342 mm, confirmed by CouchGuard.

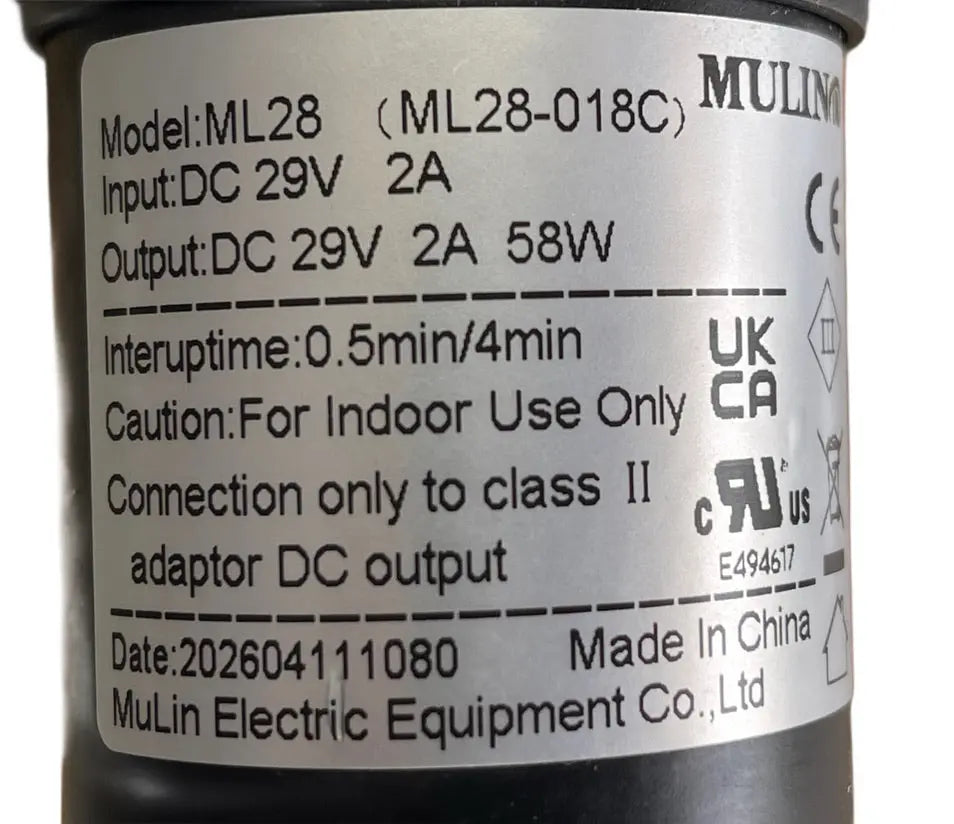

The photographed label does not specify linear speed or maximum load. Do not transfer the different ML28-018 model's speed or load figures to ML28-018C. Check the original specifications before ordering.

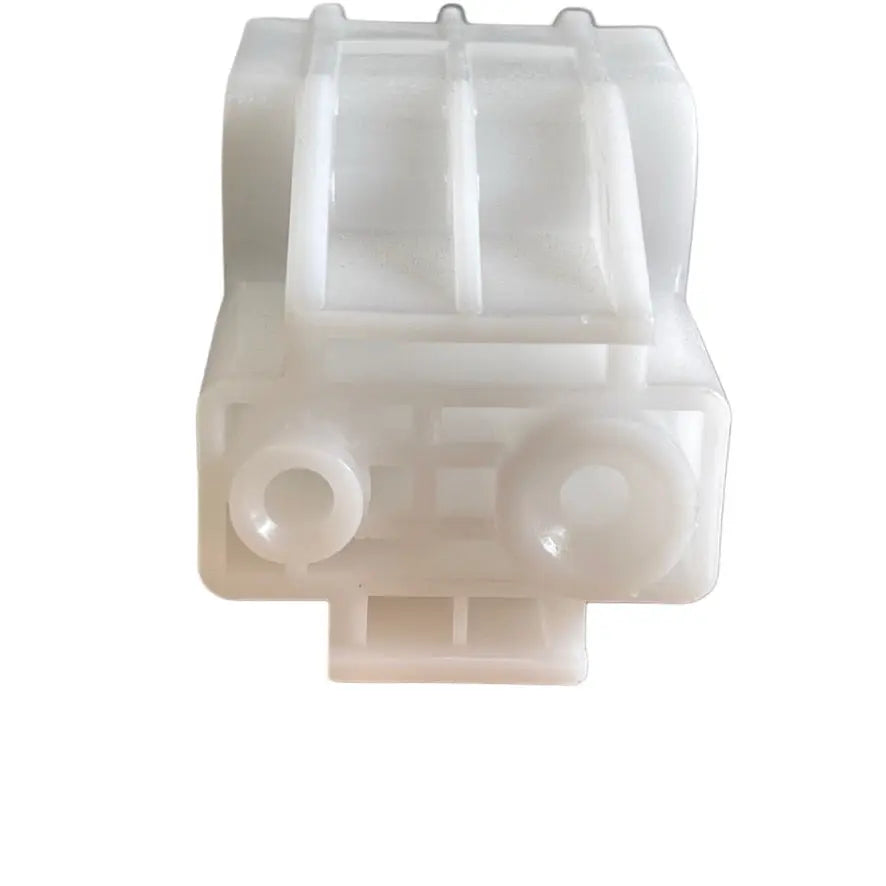

The mounting-block photo shows a white sliding component with fixing holes. Compare its shape and fixing pattern, the actuator body, mounting ends and clearance. Measure retracted and extended mounting lengths centre to centre of pin where applicable, separately from overall length and the 342 mm stroke. Stroke is actuator travel, not overall or mounting length. No mounting lengths are supplied on the label. Actuator force, where specified, is not chair occupant-weight capacity.

Connections

The listing and connector photo identify a male two-pin I0 power plug, with one flat and one round pin, and a female round five-pin switch socket. Compare connector faces, keying, pin arrangement, polarity, wiring and cable routing. Matching pin counts alone do not establish compatibility.

Compatibility and safe replacement

Match the complete ML28-018C model, electrical ratings, 342 mm stroke, mounting block, fixing points, dimensions and both connections. Chair brand or footrest function alone is insufficient. ML28-018 and other similar Mulin actuators are not established as interchangeable. Plug-and-play replacement applies only when the complete mechanical and electrical system matches.

Send CouchGuard clear photos of the original rating label, full actuator, mounting block, mounting ends and both connector faces, together with measurements, if you need help identifying the correct part.

A non-moving footrest may have a switch, cable, power-supply or mechanism fault rather than a failed actuator. Establish the fault before ordering. Disconnect mains and any battery supply before replacement. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Never force connectors, modify wiring or connect directly to mains power.

Frequently asked questions

Is this a genuine Mulin actuator?
Yes. This is the genuine Mulin ML28-018C replacement actuator.

What chair function does it control?
It is offered for footrest movement in matching powered recliner or lift-chair installations.

What is its stroke length?
CouchGuard confirms 342 mm stroke. This is actuator travel, not overall length or mounting length.

What electrical input does the label specify?
DC 29V 2A. Use a matching system and suitable Class II adapter DC output.

Can it run continuously?
No. Observe 0.5 minute ON followed by 4 minutes OFF.

Which power connection does it use?
A male two-pin I0 power plug with one flat and one round pin. Match the connector and polarity.

Which switch connection does it use?
A female round five-pin socket. Compare pin arrangement, keying and control-system wiring.

Are the ML28-018 speed and load figures applicable?
Not automatically. ML28-018C's photographed label does not supply speed or load figures, and its electrical and duty ratings differ from the photographed ML28-018.

Will it replace every ML28 actuator?
No. Match the exact ML28-018C reference, 342 mm stroke, mounting block, fixing dimensions and electrical system.

Can compatibility be identified by chair brand?
No. Different actuators can be fitted within a chair range. Compare the original label, measurements and connections.

What photos should I send for help?
The full actuator, readable rating label, mounting block and ends, and both connector faces, plus mounting measurements and required travel.

Can it be used outdoors?
No. The manufacturer label specifies indoor use only.
