Buy Mulin ML8-001 Recliner Actuator Motor – 333mm Stroke

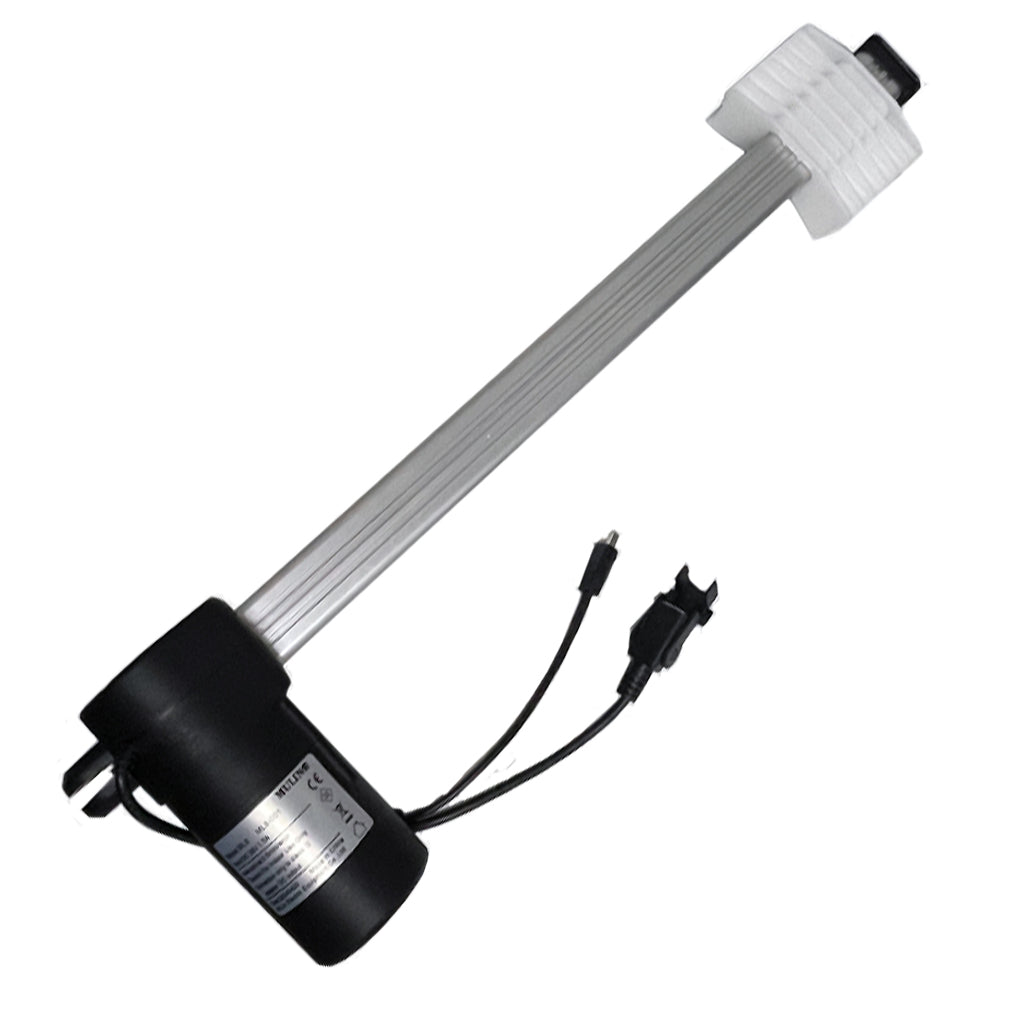

Genuine Mulin ML8-001 recliner motor

Replacing your recliner actuator? The Mulin ML8-001 comes with its Y-cable wiring harness, a female round five-pin socket and a male two-pin OI plug. With a 333mm stroke and 36mm/s speed, it is a replacement option for a matching installation. Compare the complete model, mounting dimensions and wiring before ordering. If you're not sure, send us photos and we'll help you check the match.

Electrical Specs

• Input: DC 28V
• Current: 1.5A
• Duty cycle: maximum 2 minutes ON / 20 minutes OFF.
• Allow the OFF period to help prevent overheating.
• Safety certification: UL Listed, according to our supplied product specifications

Performance

• Stroke length: 333mm
• Speed: 36mm/s
• Actuator load rating: up to 2000N

The force rating is not the chair's occupant weight limit or a torque rating.

Dimensions & Build

• Minimum installation size: 157mm retracted, measured centre to centre of pin
• Model and MPN: Mulin ML8-001
• Included: motor with Y-cable wiring with 2 pin I0 and round 5 pin connections.

The 157mm measurement is the minimum retracted mounting length, not overall motor length. Keep mounting length, 333mm stroke and overall length separate when comparing parts. The specifications above are our supplied listing specifications; they have not been independently read from a clear rating-label photo.

Wiring and plugs

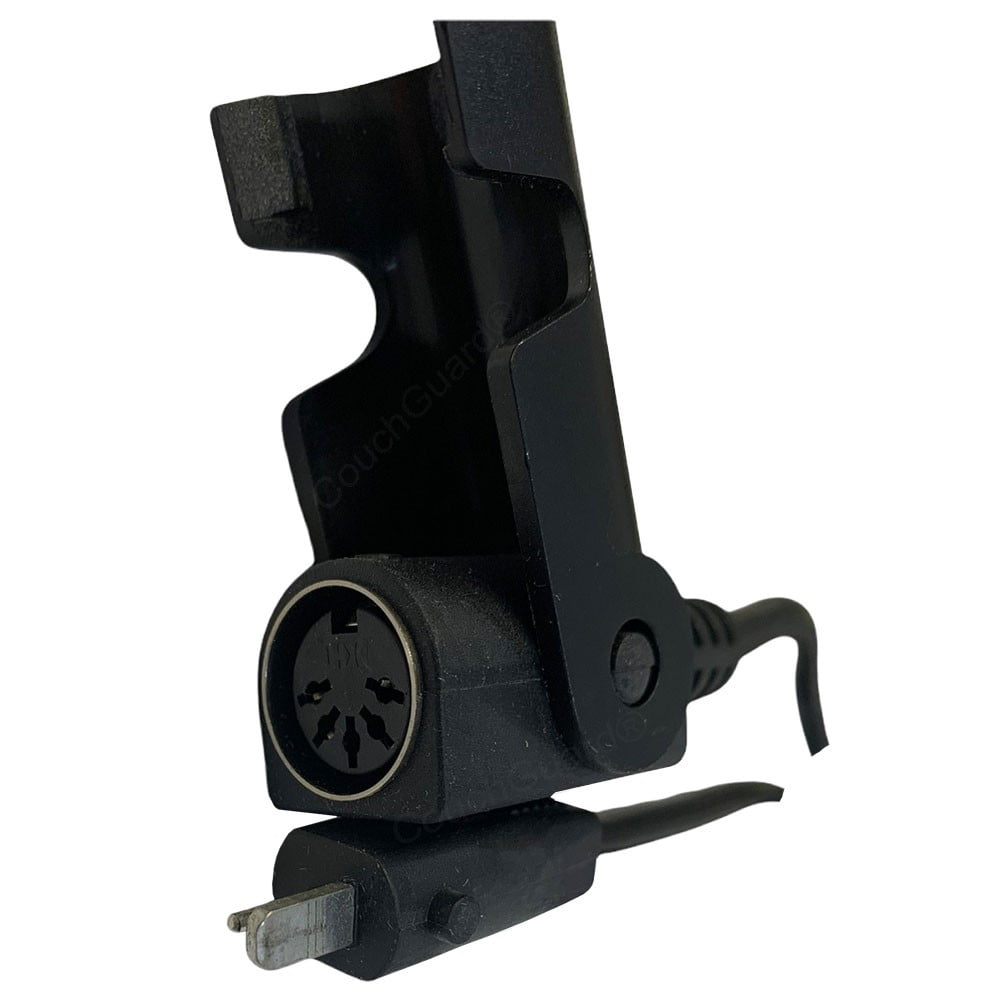

The connector photo shows a female round five-pin socket and male two-pin OI plug. Compare both with your original setup, including gender, keying, polarity and wiring. The same pin count does not guarantee the same electrical connection.

Check the match before ordering

Match the complete ML8-001 model, stroke, retracted and extended mounting dimensions, brackets, clearances, travel limits and electrical arrangement. Similar-looking Mulin motors and chair brands do not establish fit. Plug-in replacement is suitable only when all mechanical and electrical details match.

Need a hand? Call us on 1300 268 244 or email clear photos of your original label, full actuator, mounting points and both plug ends.

Safe replacement guidance

Disconnect mains power and any battery before working on the chair. Securely support the mechanism before loosening the actuator. Photograph the original orientation, hardware and cable routes, and follow your chair manufacturer's removal and mounting instructions. Disconnect plugs by their housings, not the wires. Keep cables clear of hinges and pinch points and don't force plugs or mounts.

Clear hands and tools before restoring power and testing a short movement. Stop if the mechanism binds or behaves abnormally. If you're unsure about safely supporting or fitting it, use a qualified repairer.

Frequently asked questions

Is this a genuine Mulin motor?

Yes. This is a genuine Mulin ML8-001 replacement recliner actuator.

What electrical input does it use?

Our supplied specifications state DC 28V 1.5A. Check your original power system, polarity and wiring for a match.

What are the stroke, speed and load rating?

333mm stroke, 36mm/s speed and up to 2000N actuator force. The force rating is not chair occupant capacity.

What is the minimum installation size?

157mm retracted, measured centre to centre of pin. This mounting length is separate from stroke and overall motor length.

How long can it run?

Our supplied duty cycle is a maximum of 2 minutes ON followed by 20 minutes OFF. Allow the full rest period; it is not designed for continuous operation.

Does it include the wiring harness?

Yes. It comes with its Y-cable harness, female round five-pin socket and male two-pin OI plug.

Is it plug and play?

Only when the complete model, mounting dimensions, travel limits and electrical connections match your installation.

Will it fit any Mulin recliner?

No. Match the complete ML8-001 model and every mechanical and electrical detail. Send us photos if you're unsure.

What photos should I send?

The original label, full actuator, mounting points and both plug ends. Include chair model details if available.

Does a chair that won't move mean motor failure?

Not necessarily. Switches, cables, power supplies and connections can also cause loss of movement. Check the fault before buying a replacement.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.

Selected Product Warranties

The following warranties apply to the listed products:

• 24-month warranty on all compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All actuators supplied by CouchGuard are tested by the manufacturer before leaving its facility. If a defect becomes apparent, contact us promptly with your order details so we can assess the product under the applicable warranty.

Warranty coverage is subject to our Purchase Terms and your rights under Australian Consumer Law.
