Buy Mulin ML8-239 Recliner Actuator – 330mm Stroke

Genuine Mulin ML8-239 recliner motor

Replacing your recliner motor? The Mulin ML8-239 is a genuine slider-block actuator with a 330mm stroke and a three-connection wiring harness. Before ordering, compare the model, fixing points and plugs with your original motor. If you're not sure, send us clear photos and we'll help you check the match.

Electrical specifications

• Model: Mulin ML8-239
• Additional label reference: MOT-AC-65
• Input: DC 28V
• Current: 1.5A
• Duty cycle: maximum 0.5 minute ON, followed by 4 minutes OFF
• Indoor use only
• Connect only to the DC output of a Class II adaptor, as shown on the label

Performance

• Stroke length: 330mm
• Actuator force: 800N
• Speed: 36mm/s

Dimensions and build

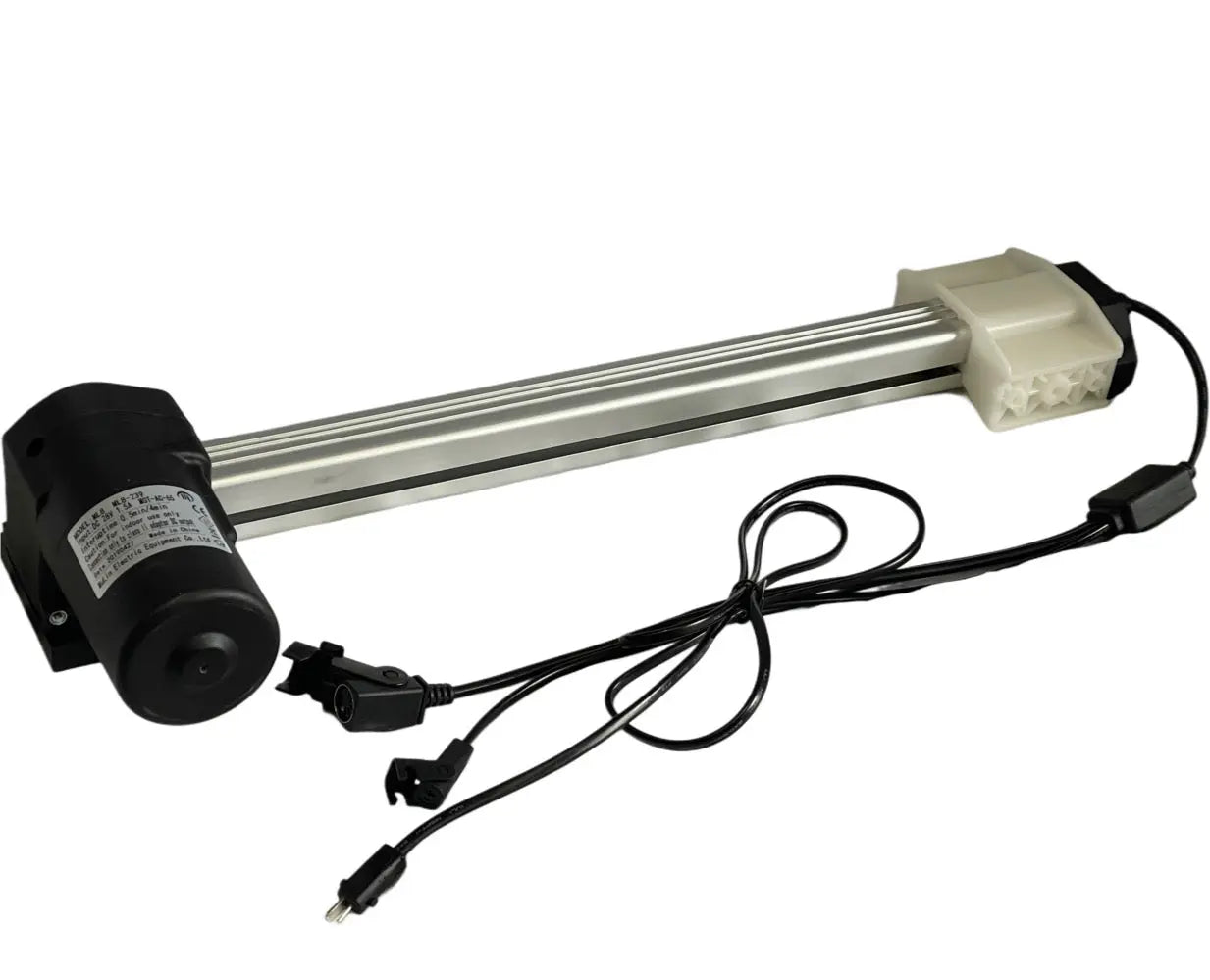

• Style: slider-block mechanism actuator
• Overall unit length: 530mm
• Distance between fixings: 510mm

These are three different measurements: 330mm is the stroke, 530mm is the overall unit length and 510mm is the distance between fixings. Compare the same points on your original motor. Don't use the fixing spacing as a retracted or extended mounting length. For pin mounts, measure centre to centre of pin.

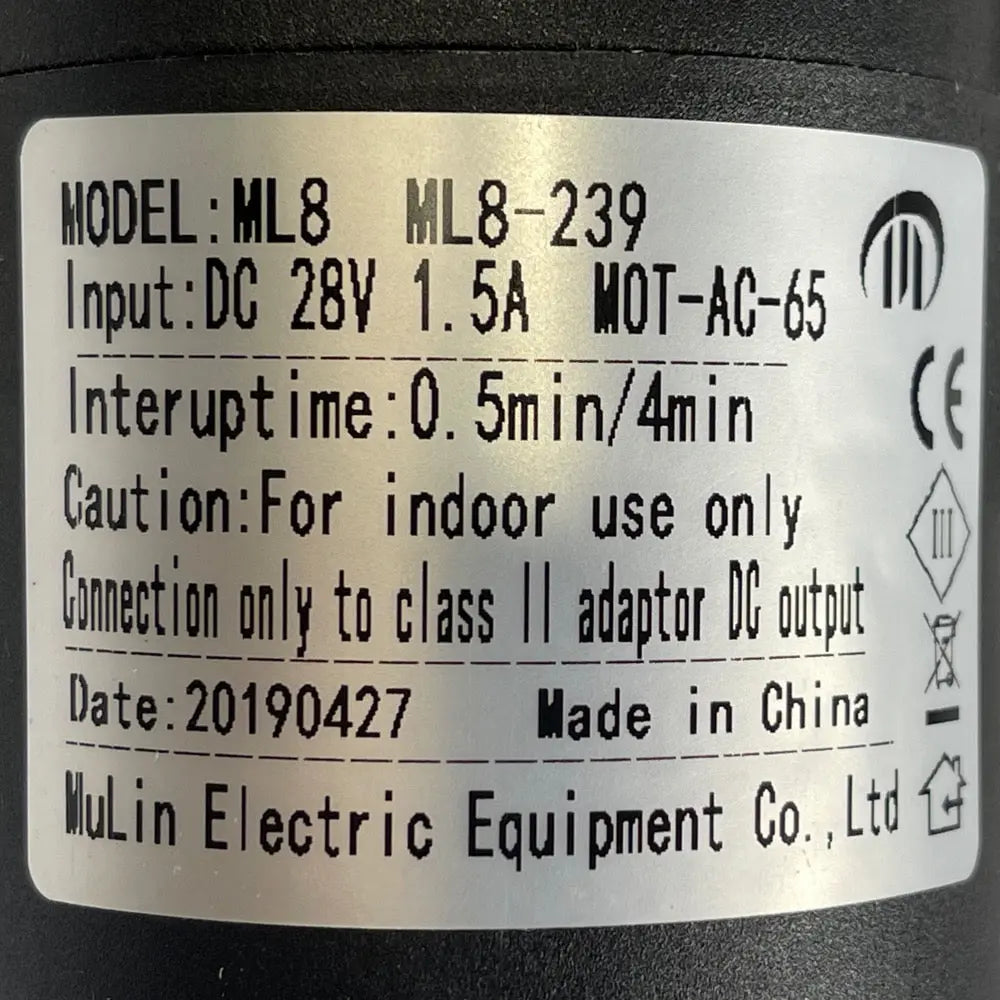

The electrical ratings and duty cycle are shown on the motor label. The mechanical specifications above are our listing specifications, not figures printed on that label. The 800N figure is actuator force, not the chair's occupant weight limit.

Wiring and plugs

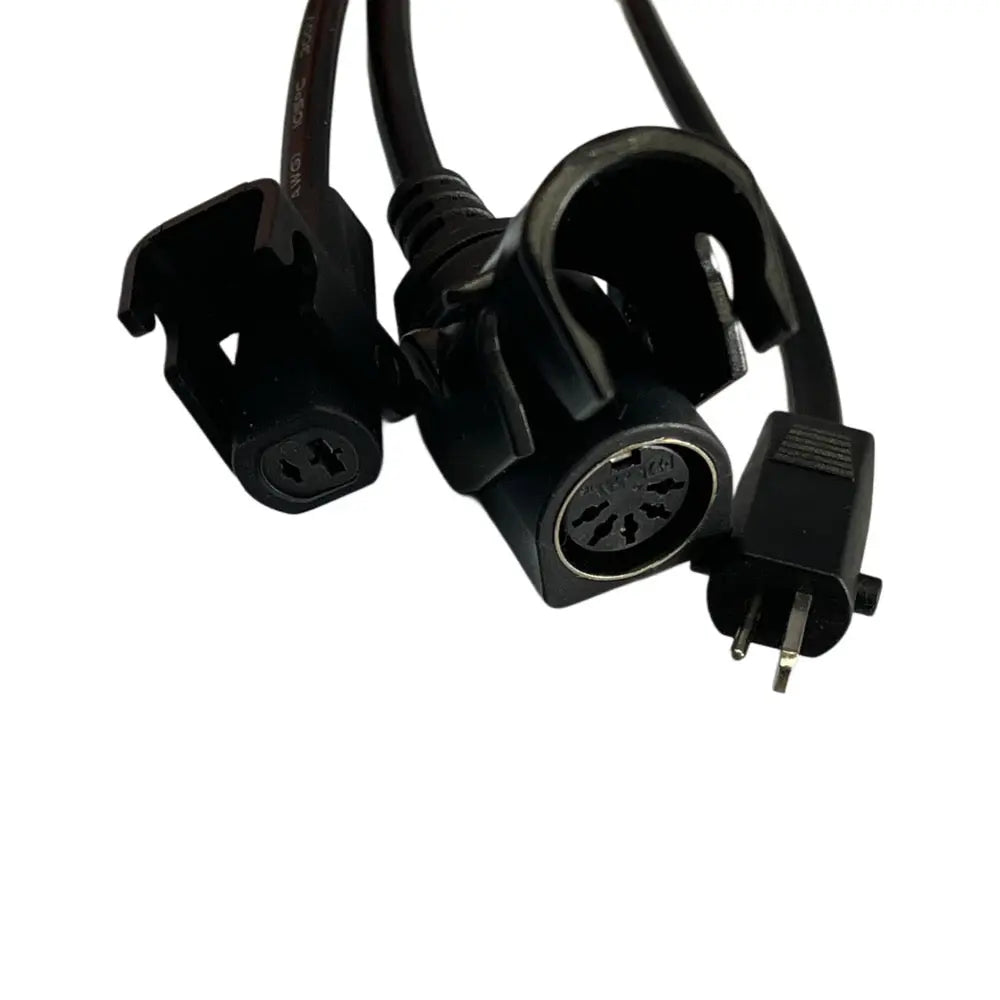

The motor comes with a female round five-pin connector, a male two-pin OI connection and a female two-pin OI connection. These connect into the matching switch, power and headrest/deputy-motor wiring arrangement. Check every plug and lead against your original setup, including gender, keying, polarity and wiring. The same number of pins does not guarantee the same connection.

Check the match before ordering

Match the complete ML8-239 model, stroke, fixing points, slider arrangement, clearances and electrical connections. A similar-looking motor or the same chair brand isn't enough to confirm fit. Plug-in replacement is suitable only when the mechanical and electrical setup matches.

Need a hand? Call us on 1300 268 244 or email clear photos of your motor label, full actuator, fixing points and all plug ends. Our team previously worked as lounge repair technicians, so those photos help us check what you're working with.

Fitting your replacement motor

1. Check the replacement against your original motor before removing anything.
2. Unplug mains power, disconnect any battery and securely support the mechanism before loosening the actuator.
3. Photograph the motor orientation, hardware and cable routes. Follow your chair manufacturer's removal and mounting instructions.
4. Disconnect plugs by their housings, not the wires. Fit the matched motor without forcing the mounts or using unverified fixings.
5. Reconnect the matching leads and keep cables clear of hinges and pinch points.
6. Clear hands and tools, restore power and test a short movement. Stop if the mechanism binds, catches or behaves abnormally.

This is general guidance, not a chair-specific service manual. Never work on a powered or unsupported mechanism. If you're unsure about safely supporting or fitting it, use a qualified repairer.

Frequently asked questions

Which model do I need to match?

Match Mulin ML8-239, not just the ML8 series. MOT-AC-65 also appears on the label, but that reference alone doesn't confirm a replacement will fit.

What are the stroke, force and speed?

Our listing specifications are 330mm stroke, 800N actuator force and 36mm/s speed. Compare them with your original motor's requirements.

What style and dimensions does it have?

It's a slider-block actuator with a 530mm overall unit length and 510mm distance between fixings. Check the same fixing points and slider arrangement on your original.

Is 510mm the stroke or overall length?

No. It's the distance between fixings. The stroke is 330mm and overall length is 530mm.

Is 800N the chair's weight capacity?

No. It describes the force of the actuator, not occupant capacity. Use the weight limit specified by your chair manufacturer.

What power does it require?

The label states DC 28V 1.5A. Your power system, polarity and wiring must match.

How long can it run?

Run it for no more than 0.5 minute, then allow 4 minutes OFF. It's not designed for continuous operation.

Which connections come with it?

One female round five-pin, one male two-pin OI and one female two-pin OI connection. Compare all three plugs and their functions with your existing wiring.

Will it fit any Mulin recliner?

No. Check the complete model, stroke, fixings, slider arrangement, travel limits and electrical connections. Send us photos if you're unsure.

My chair won't move. Does that mean the motor has failed?

Not necessarily. The switch, cables, power supply or connections can also cause loss of movement. Check the fault before buying a replacement motor.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.

Selected Product Warranties

The following warranties apply to the listed products:

• 24-month warranty on all compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All actuators supplied by CouchGuard are tested by the manufacturer before leaving its facility. If a defect becomes apparent, contact us promptly with your order details so we can assess the product under the applicable warranty.

Warranty coverage is subject to our Purchase Terms and your rights under Australian Consumer Law.

Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
