Buy Okin JLDK.02.03.01 2-Button Lift Chair Handset

Genuine Okin JLDK.02.03.01 lift chair handset

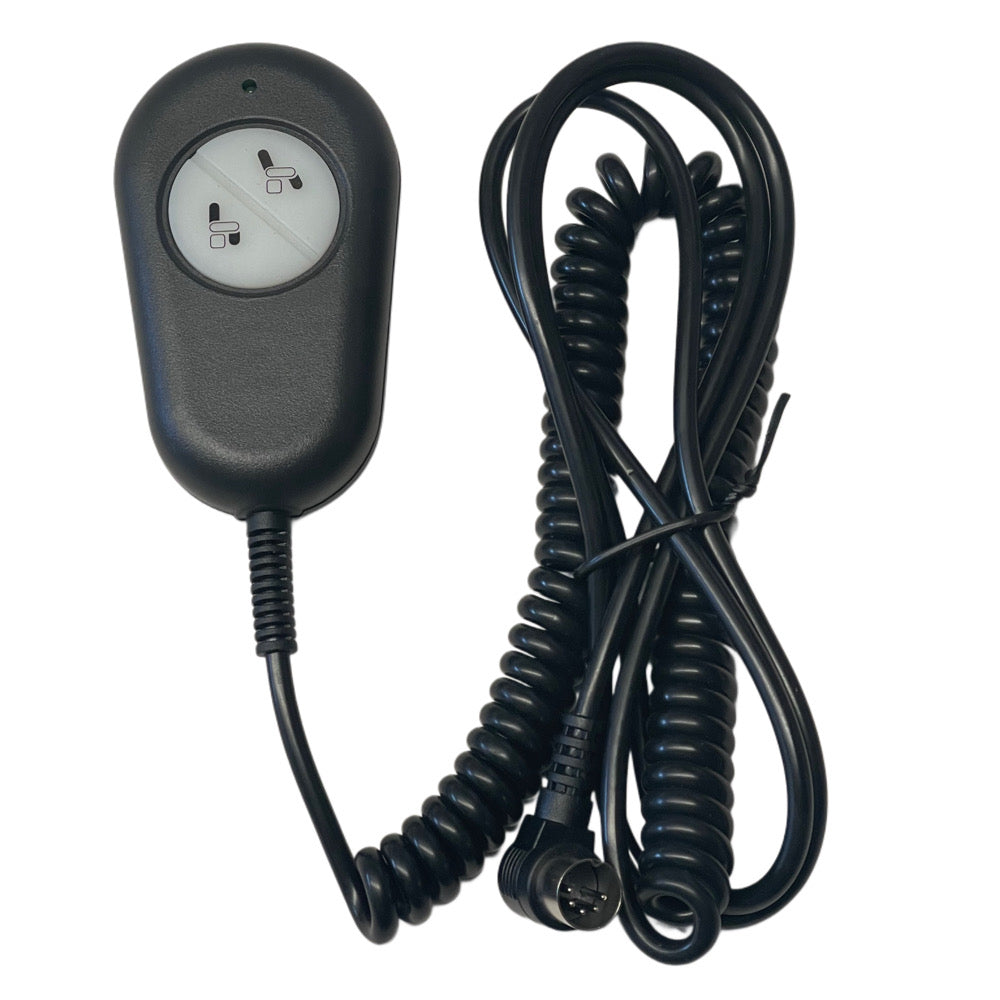

Restore the controls on a matching single-motor lift chair with this genuine Okin JLDK.02.03.01 two-button hand control. Its compact black housing and simple paired chair-motion buttons keep operation straightforward. The handset comes with an attached coiled lead and a round right-angle five-pin plug.

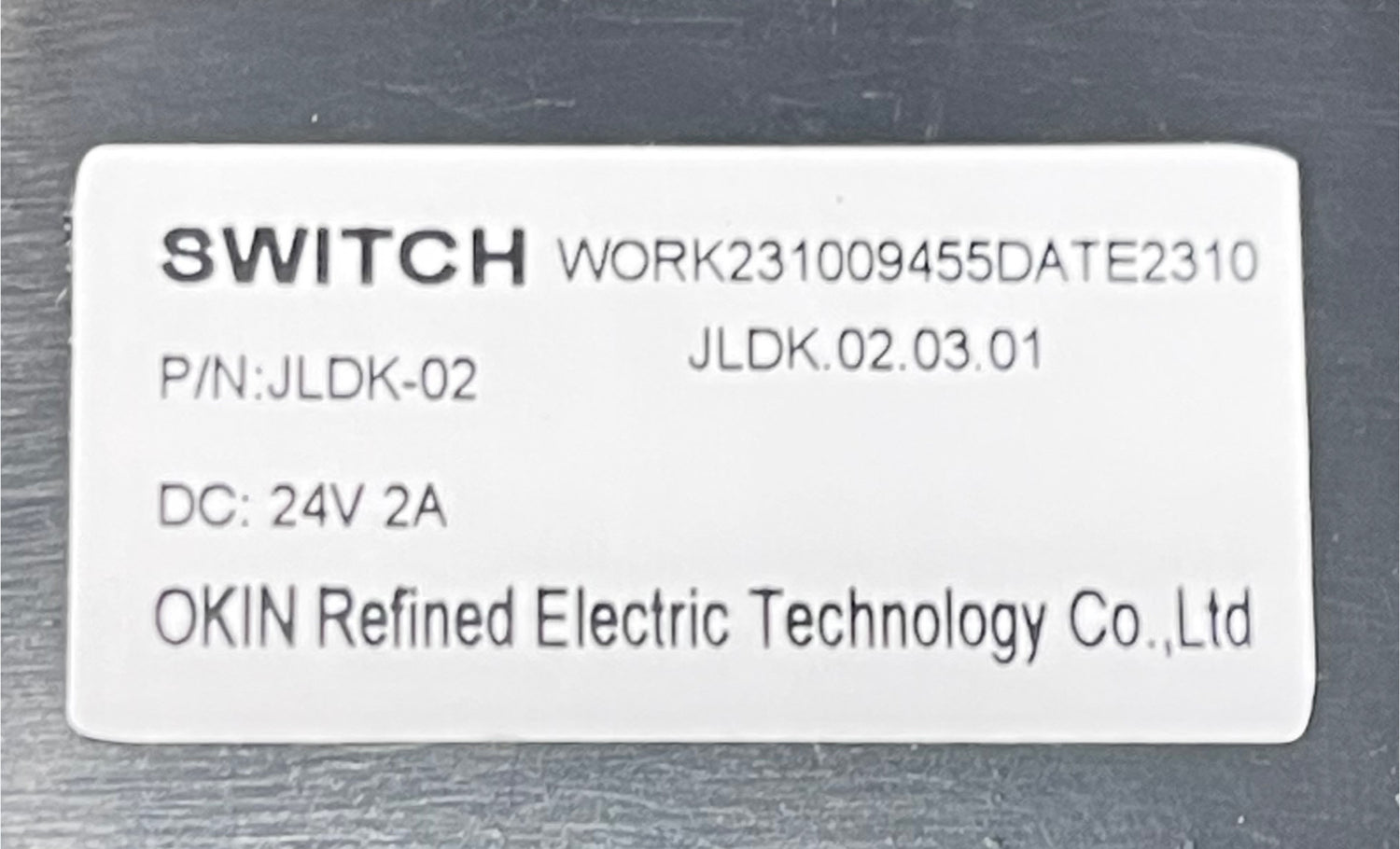

Label-confirmed specifications

• Model: JLDK.02.03.01.
• Part-family reference: JLDK-02.
• Electrical rating: DC 24V 2A.
• Manufacturer: OKIN Refined Electric Technology Co., Ltd.

Controls and connection

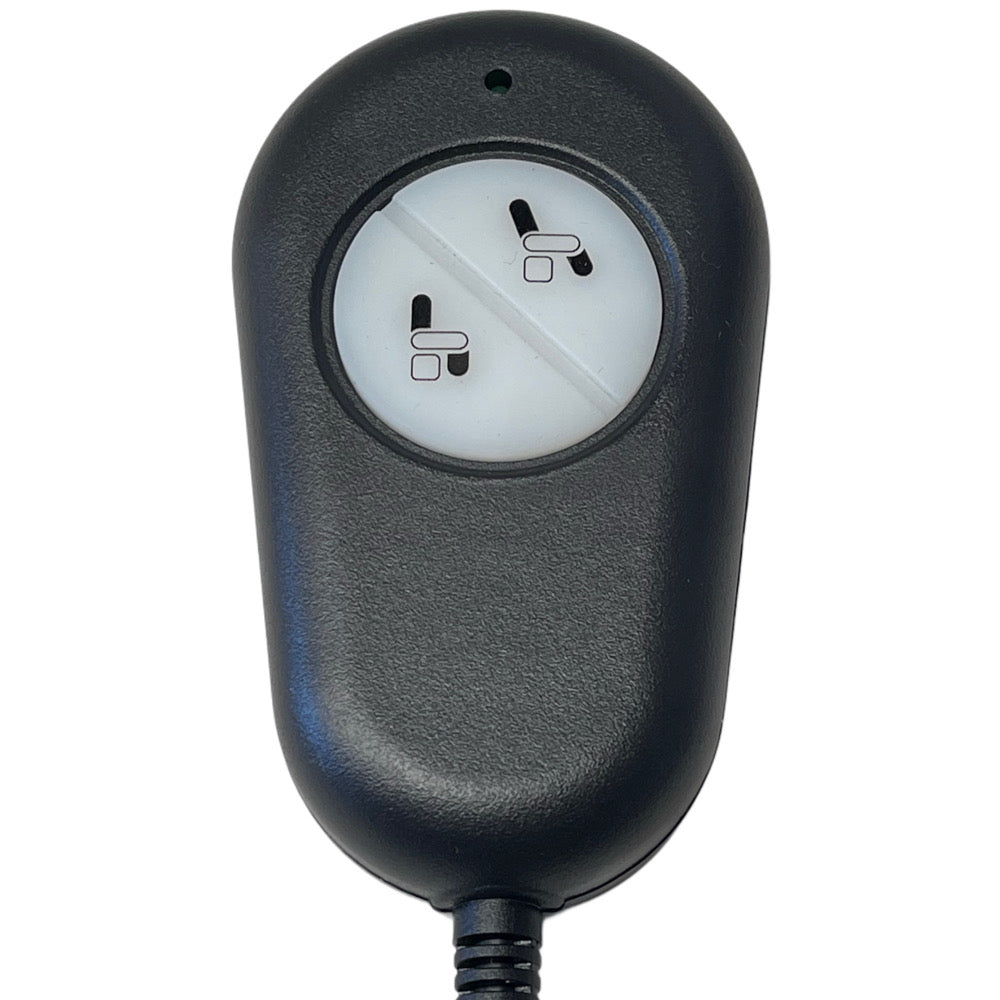

The photos show two chair-motion buttons, an attached coiled cable and a male round five-pin connector with a right-angle cable exit. This is a two-button handset, not a four-button control. The original chair mechanism and electrical system determine the resulting lift and recline movements; the handset does not add independent headrest, lumbar or other motor functions.

Check compatibility before ordering

Match the full JLDK.02.03.01 model on your original label, DC 24V 2A rating, connector pin arrangement and keying, cable layout and original chair control system. A five-pin plug or an Okin brand name alone is not proof of compatibility. Connection through a control box or directly to a motor depends on the matching original installation; do not change the wiring arrangement or use an adaptor without confirming suitability.

If unsure, send CouchGuard clear photos of your original handset label, complete handset, plug face and the component it connects to before ordering.

Safe replacement guidance

Disconnect mains power and any battery supply before unplugging the original handset. Compare the connectors and align the replacement without forcing or modifying the plug. Route the cable clear of moving mechanisms. Restore power only after the matching connection is secure, and keep people and objects clear of moving chair parts during testing. Consult an experienced repairer if system compatibility is uncertain.

Frequently asked questions

Which model is supplied?

The genuine Okin JLDK.02.03.01 two-button handset. JLDK-02 is the part-family reference printed on its label.

Does it have two or four buttons?

Two chair-motion buttons. The earlier four-button wording was incorrect.

What electrical rating is printed on the label?

DC 24V 2A. Match the requirements of your original chair system.

What connector does it use?

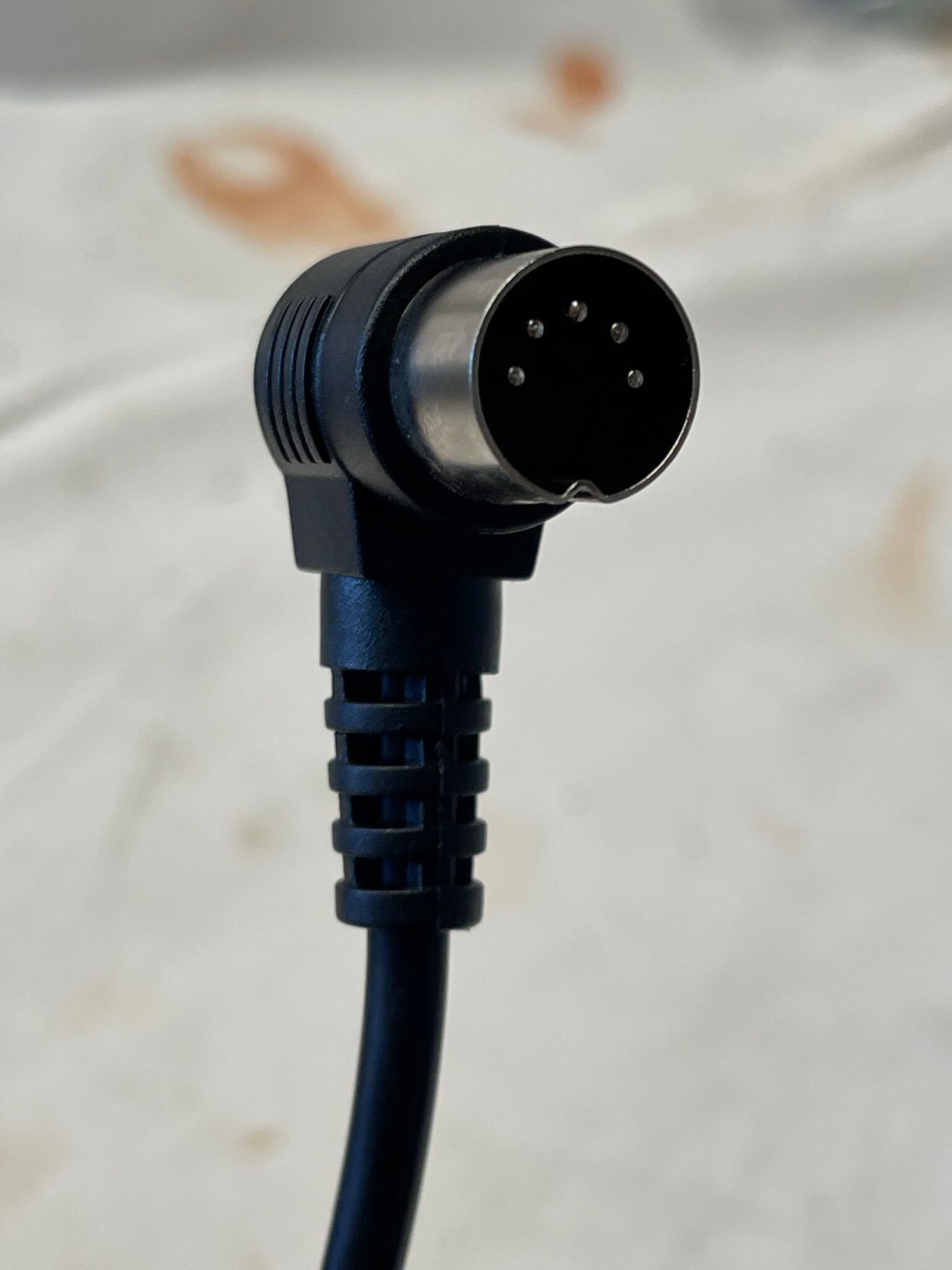

A male round five-pin plug with a right-angle cable exit. Compare the pin arrangement and keying as well as the pin count.

Is the cable included?

Yes. The handset shown has an attached coiled lead and connector.

Will it fit every single-motor lift chair?

No. Match the exact model, electrical rating, plug and original control system before ordering.

Does it provide separate back and footrest controls?

It has a paired two-button layout for a matching chair system, not separate multi-motor controls. The chair mechanism determines how the back and footrest move.

How can I check the correct replacement?

Send CouchGuard photos of the original model label, handset, connector face and connected component before purchasing.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
