Buy Okin JLDK.38.04.04A 9-Button Lift Chair Handset with USB

Genuine Okin JLDK.38.04.04A lift chair handset

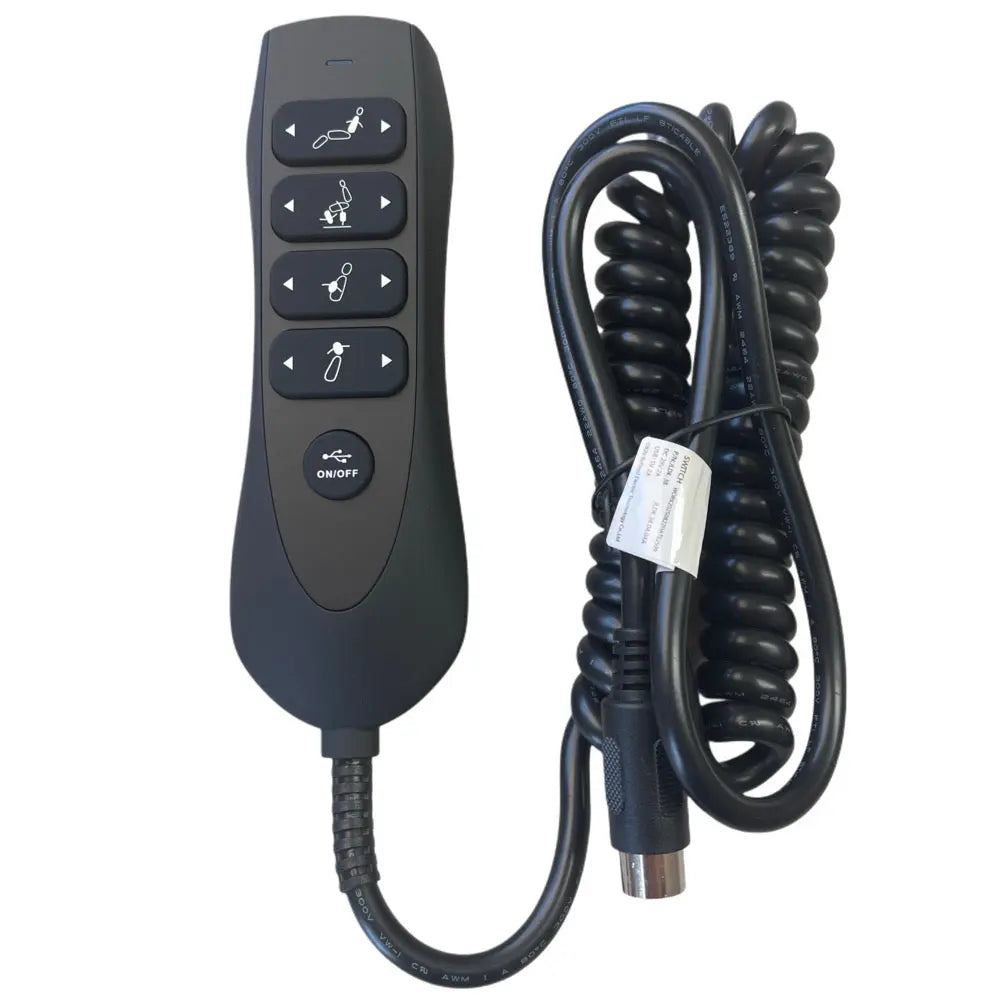

Replace a matching lift chair hand control with the Okin JLDK.38.04.04A nine-button handset. Its black housing, coiled lead and USB charging port keep chair controls and charging close to hand. Match the complete model number, connector and original chair system before ordering.

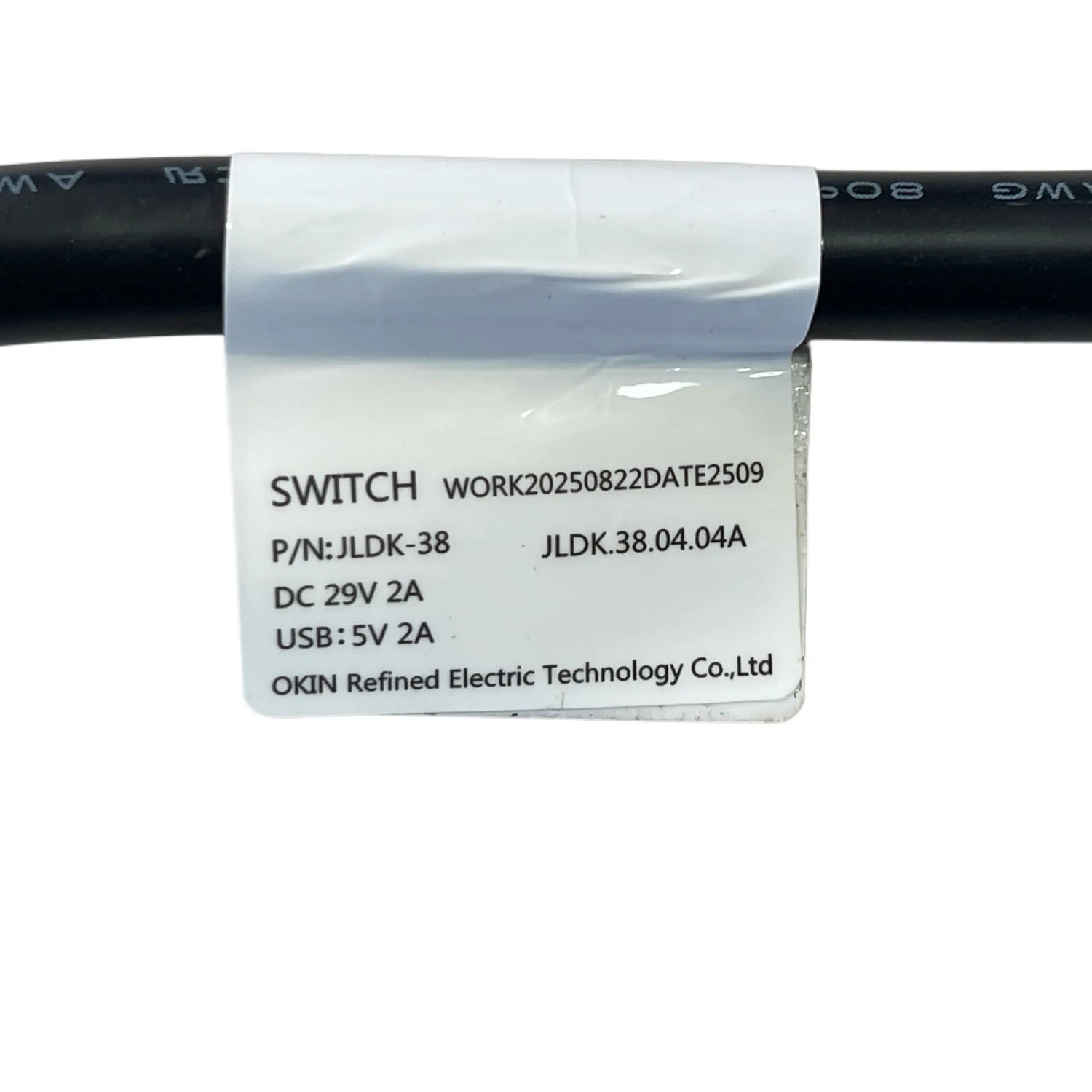

Label-confirmed specifications

• Model: JLDK.38.04.04A.
• Label part-family reference: JLDK-38.
• Input: DC 29V 2A.
• USB output: 5V 2A.
• Manufacturer: OKIN Refined Electric Technology Co., Ltd.

Controls and connector

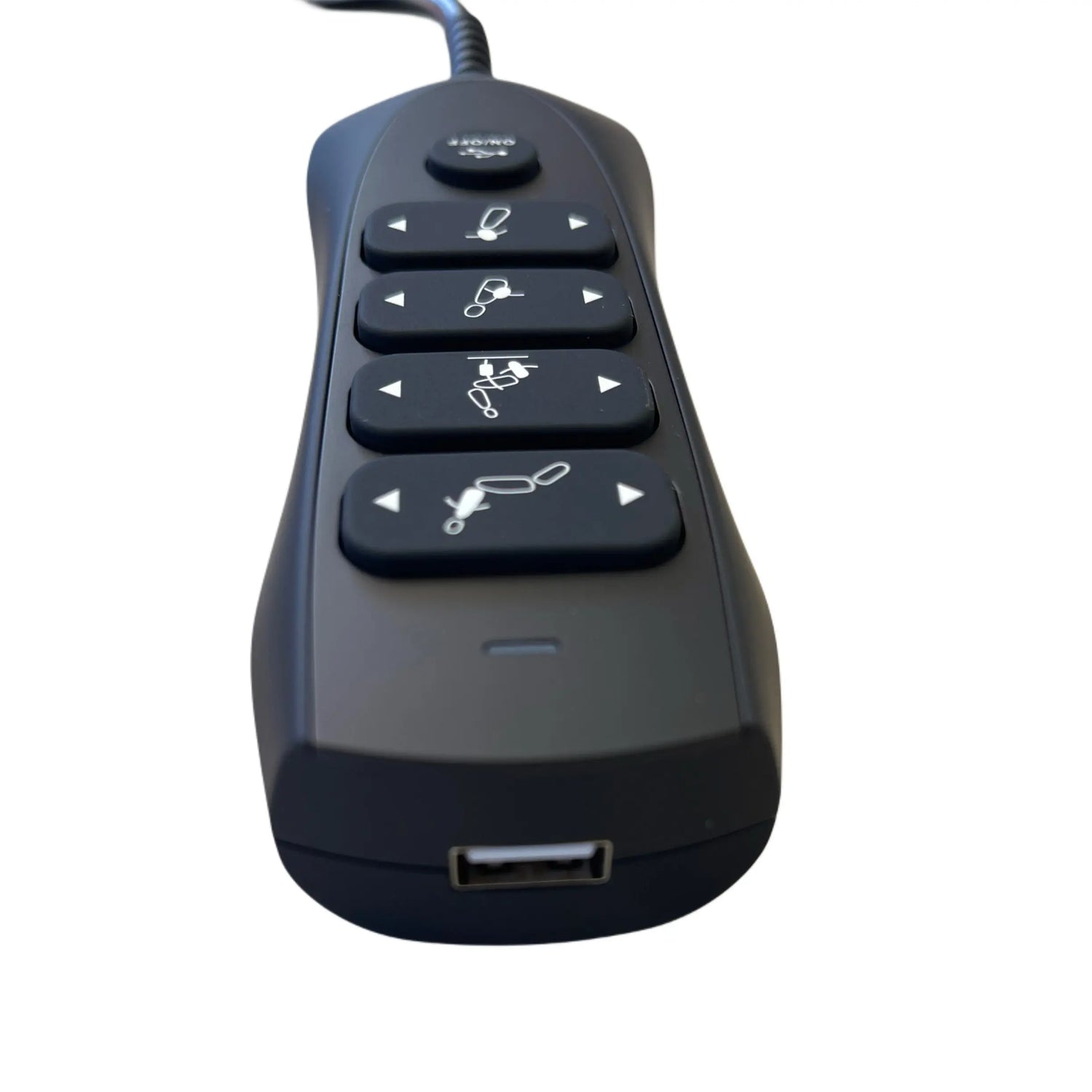

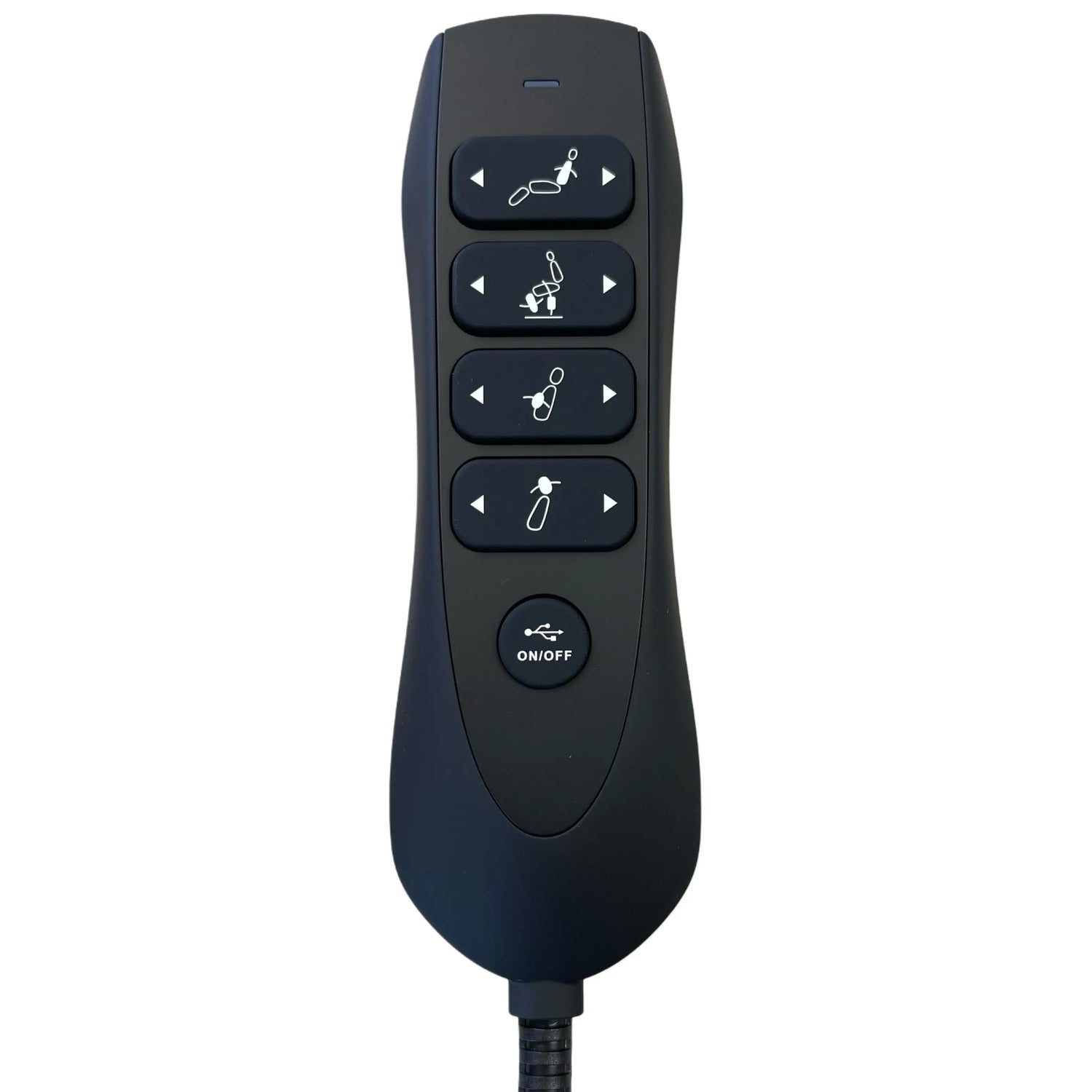

The handset has four paired motion controls and a separate USB ON/OFF button, a USB-A charging port, coiled cable and round nine-pin connector. Chair-motion functions depend on the matching original chair and control system. This handset does not add motors or functions to a chair.

Compatibility checks

Compare JLDK.38.04.04A on your original label, the nine-pin connector layout and keying, electrical ratings and chair control system. Another JLDK-38 suffix or similar-looking handset is not proof of fit. Interchangeability with JLDK.38.04.12 is not confirmed. If unsure, send CouchGuard clear photos of your original handset label, connector face and control box before ordering.

Safe replacement

Disconnect mains power and any battery supply before unplugging the handset. Align the matching connectors without forcing or modifying them. Restore power only after the connection is secure and keep clear of moving chair parts during testing. Consult an experienced repairer if system compatibility is uncertain.

Frequently asked questions

Which model is supplied?

Genuine Okin JLDK.38.04.04A. JLDK-38 is the part-family reference printed on its label.

What plug does it use?

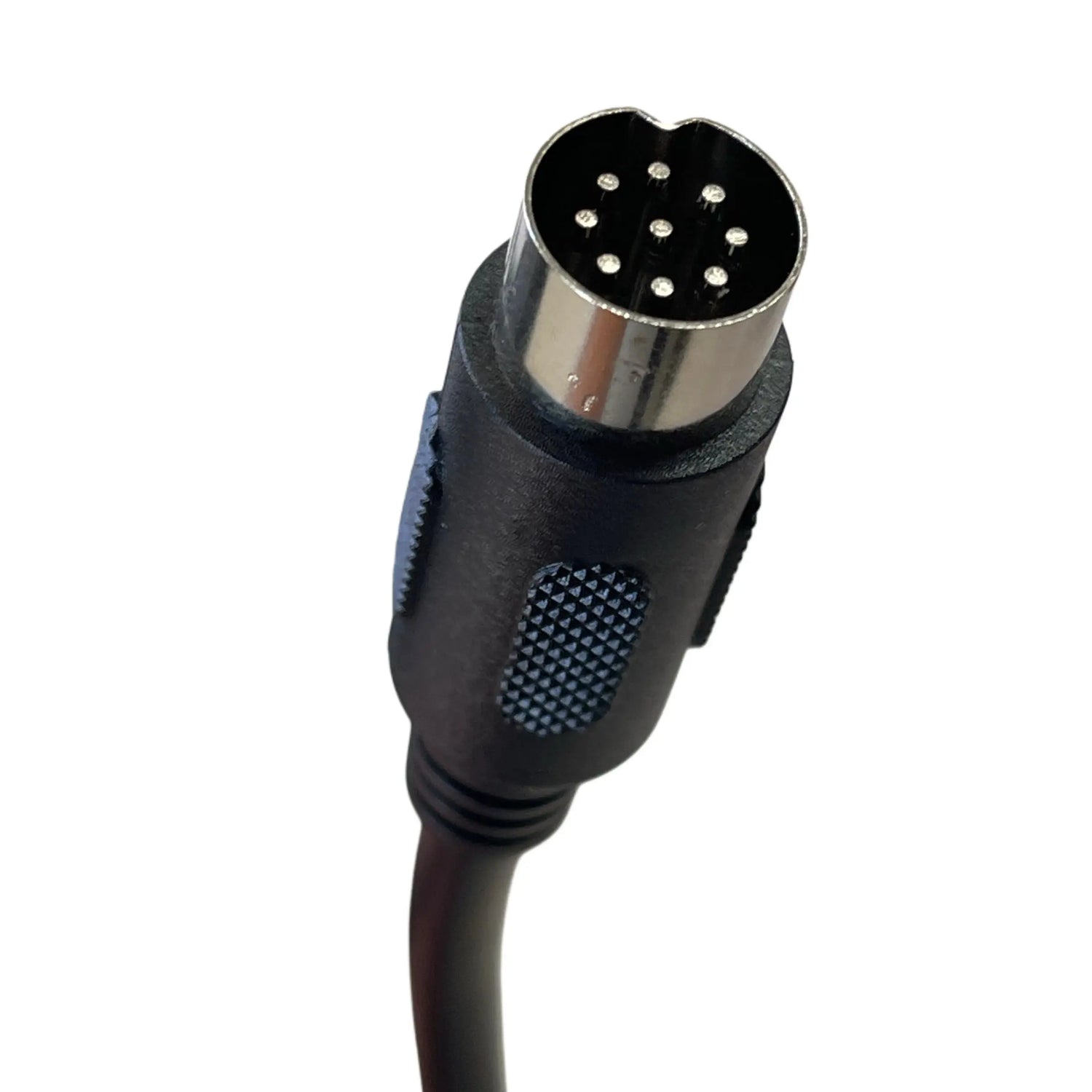

A round nine-pin connector. Match the pin arrangement and keying as well as the pin count.

What are the electrical ratings?

The label specifies DC 29V 2A and USB output of 5V 2A.

Does it have USB charging?

Yes. It has a USB-A port and a separate USB ON/OFF button.

Will it fit every Okin lift chair?

No. Match the complete model, connection and original control system before ordering.

Can I substitute JLDK.38.04.12?

Interchangeability is not confirmed. Do not choose a different suffix solely because the housing looks similar.

Will it add chair functions?

No. The original chair must already have the matching motors and control system.

How do I check the right replacement?

Send CouchGuard photos of your original label, handset, connector face and control box so the model and connections can be checked.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
