Buy Genuine Okin Betadrive 83704 Lift Chair Actuator Motor

Genuine Okin Betadrive 83704 lift chair actuator

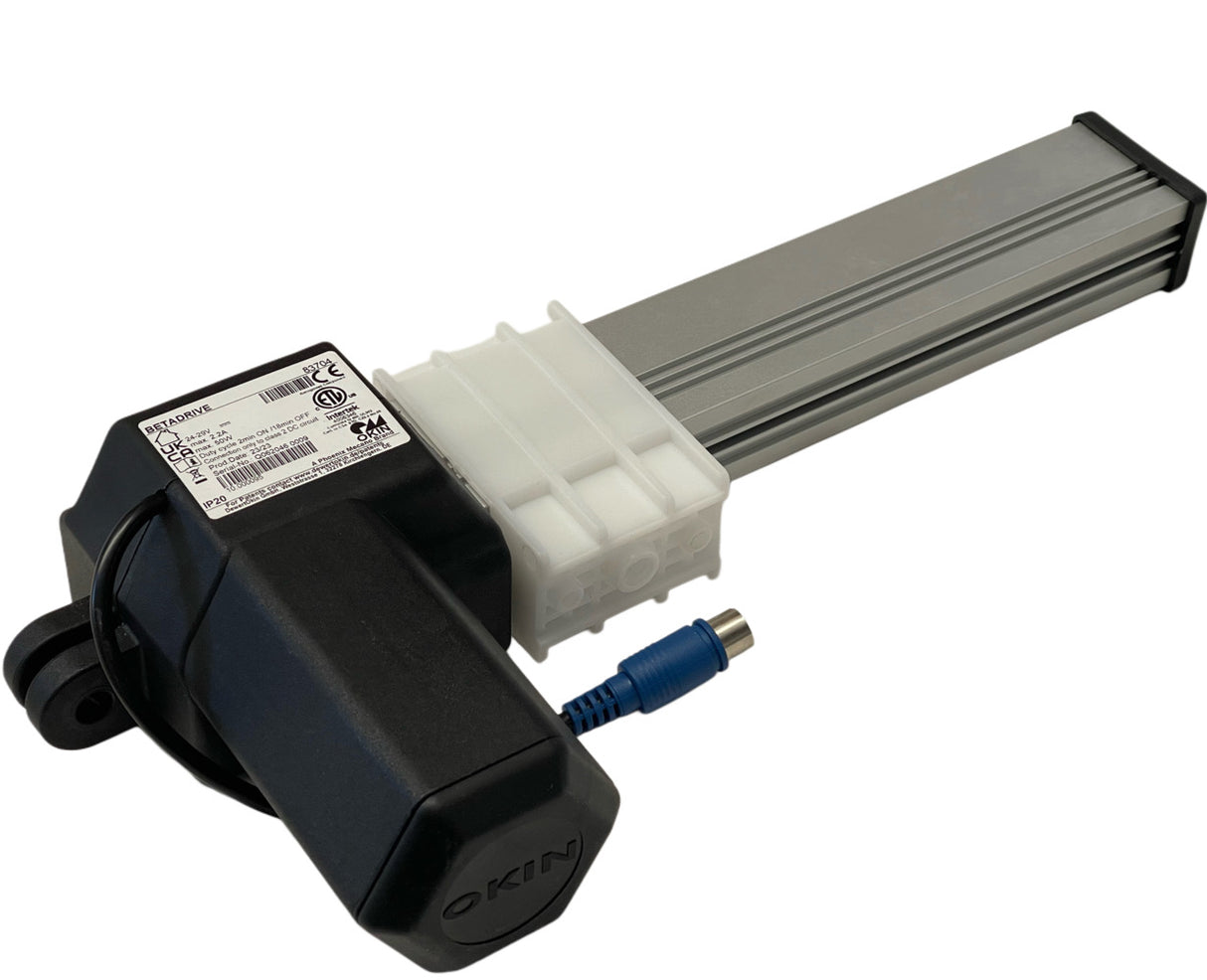

Replace a matching lift chair motor with this genuine Okin Betadrive 83704 actuator. The photographed unit has a black motor housing, metal rail and white sliding assembly, with an attached blue round six-pin plug. This listing is a replacement option for matching installations, including some La-Z-Boy lift chairs; it is not a universal fit.

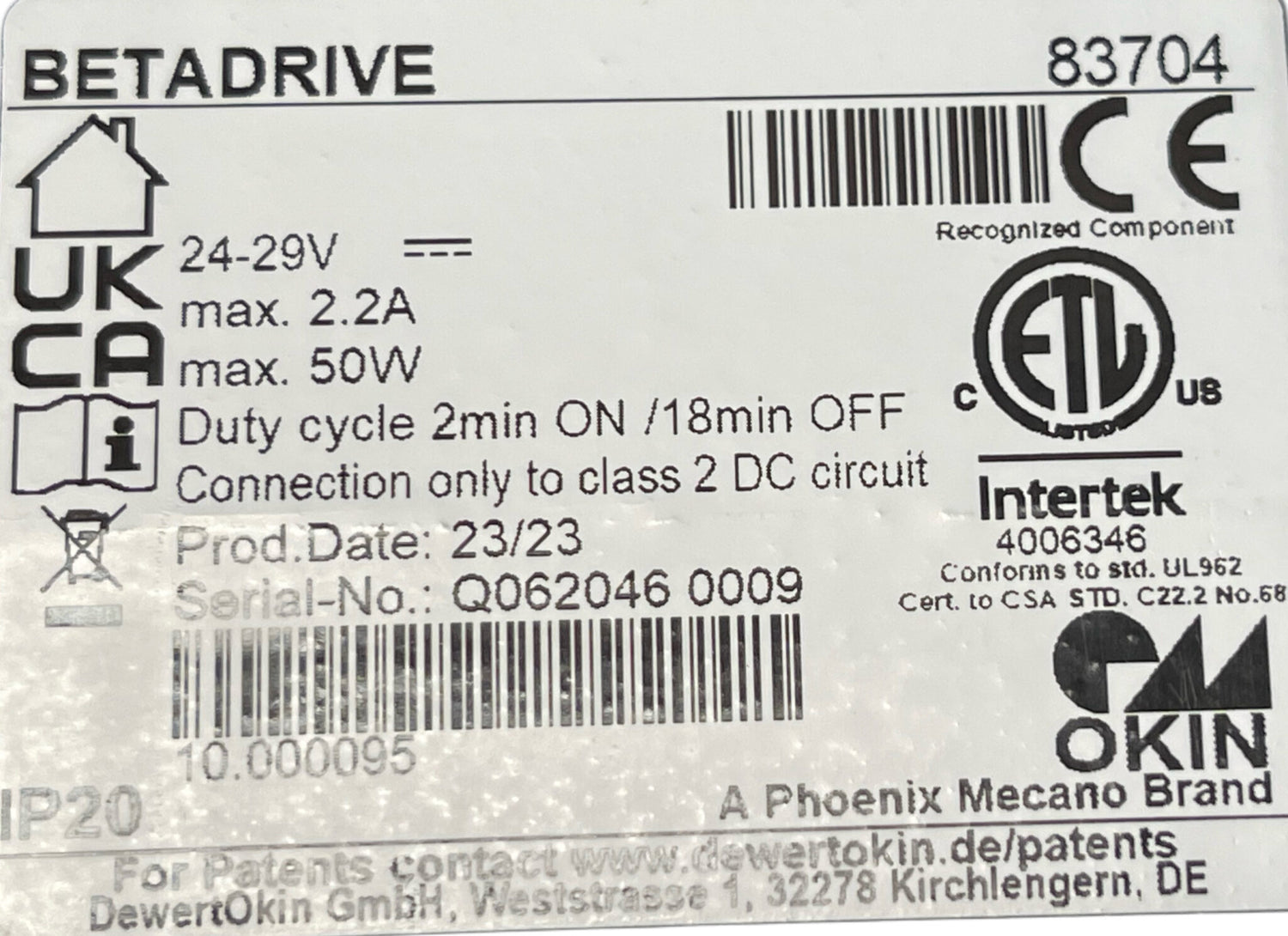

Label-confirmed specifications

• Model: BETADRIVE 83704.
• Voltage: 24–29V DC.
• Maximum current: 2.2A.
• Maximum power: 50W.
• Duty cycle: 2 minutes ON / 18 minutes OFF.
• Connection restriction: only to a Class 2 DC circuit.
• Protection rating printed on label: IP20.
• Additional label reference: 10.000095.

Connector and compatibility

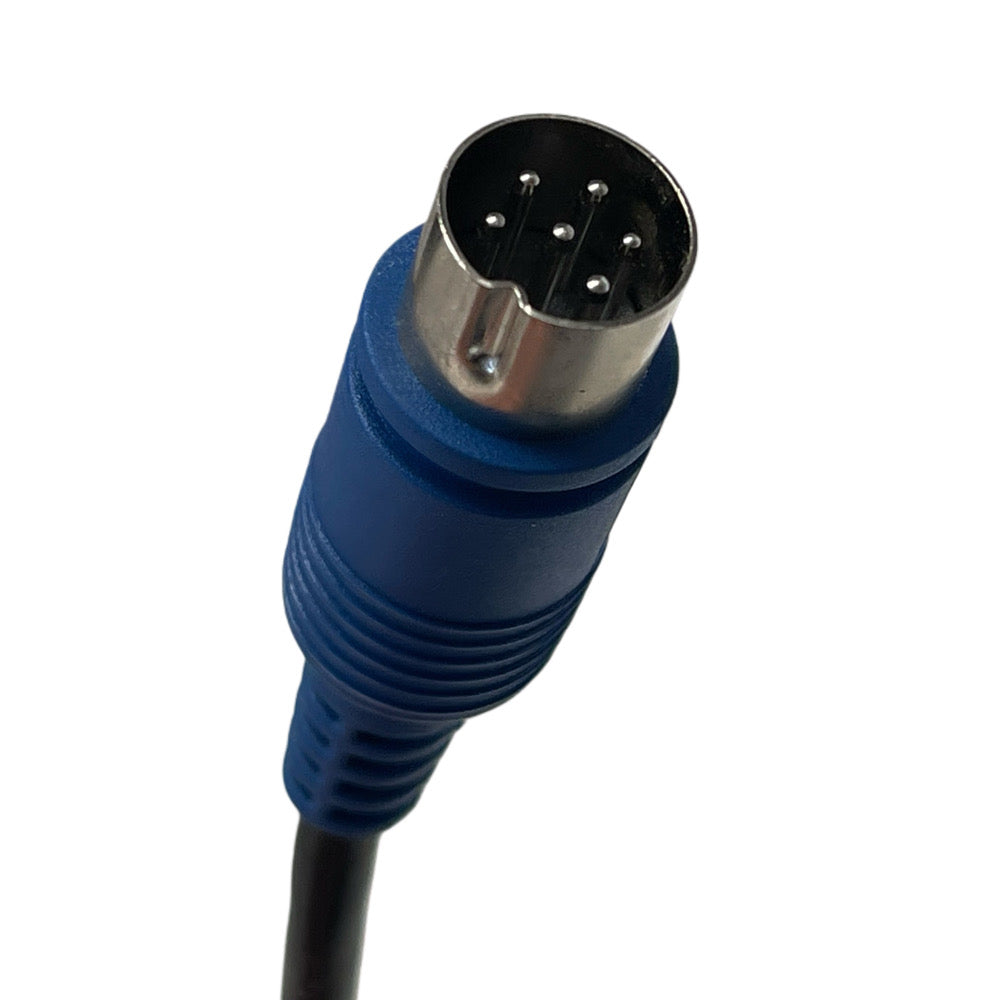

The photos show a blue round male six-pin connector. Match its pin arrangement and keying, not just the colour or pin count. Compare the original 83704 model, electrical requirements, mounting points, travel and dimensions before ordering. The existing listing identifies use in some La-Z-Boy lift chairs, but the chair brand alone does not establish fit.

Other Betadrive models are not automatically interchangeable. Send CouchGuard clear photos of the original label, complete actuator, connector face and mounting points if you need help checking compatibility.

Safe replacement guidance

Disconnect mains power and any battery supply before inspection or replacement. Support the chair mechanism safely and keep clear of moving or loaded parts. Do not dismantle or release a loaded mechanism without appropriate support. Compare the mounting arrangement and matching connector before installation, without forcing plugs or modifying wiring. Use an experienced repairer if the mechanism cannot be safely supported or the connection is uncertain. Observe the label's 2-minute ON/18-minute OFF duty cycle.

Frequently asked questions

Which actuator model is supplied?

Genuine Okin Betadrive 83704. The photographed label also carries reference 10.000095.

What voltage does it require?

The label specifies 24–29V DC, with connection only to a Class 2 DC circuit. Match the original electrical system.

What current and power ratings are printed?

Maximum 2.2A and maximum 50W.

What connector does it use?

A blue round male six-pin connector. Match the pin arrangement, keying and original wiring.

Will it fit every La-Z-Boy lift chair?

No. It is a replacement option only for matching model, mount, travel, dimensions and electrical-system requirements.

What is the duty cycle?

2 minutes ON followed by 18 minutes OFF, as printed on the photographed label.

How can I check the correct replacement?

Send CouchGuard photos of your original label, actuator, connector face and mounting points. Do not select a replacement from plug colour or chair brand alone.

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
