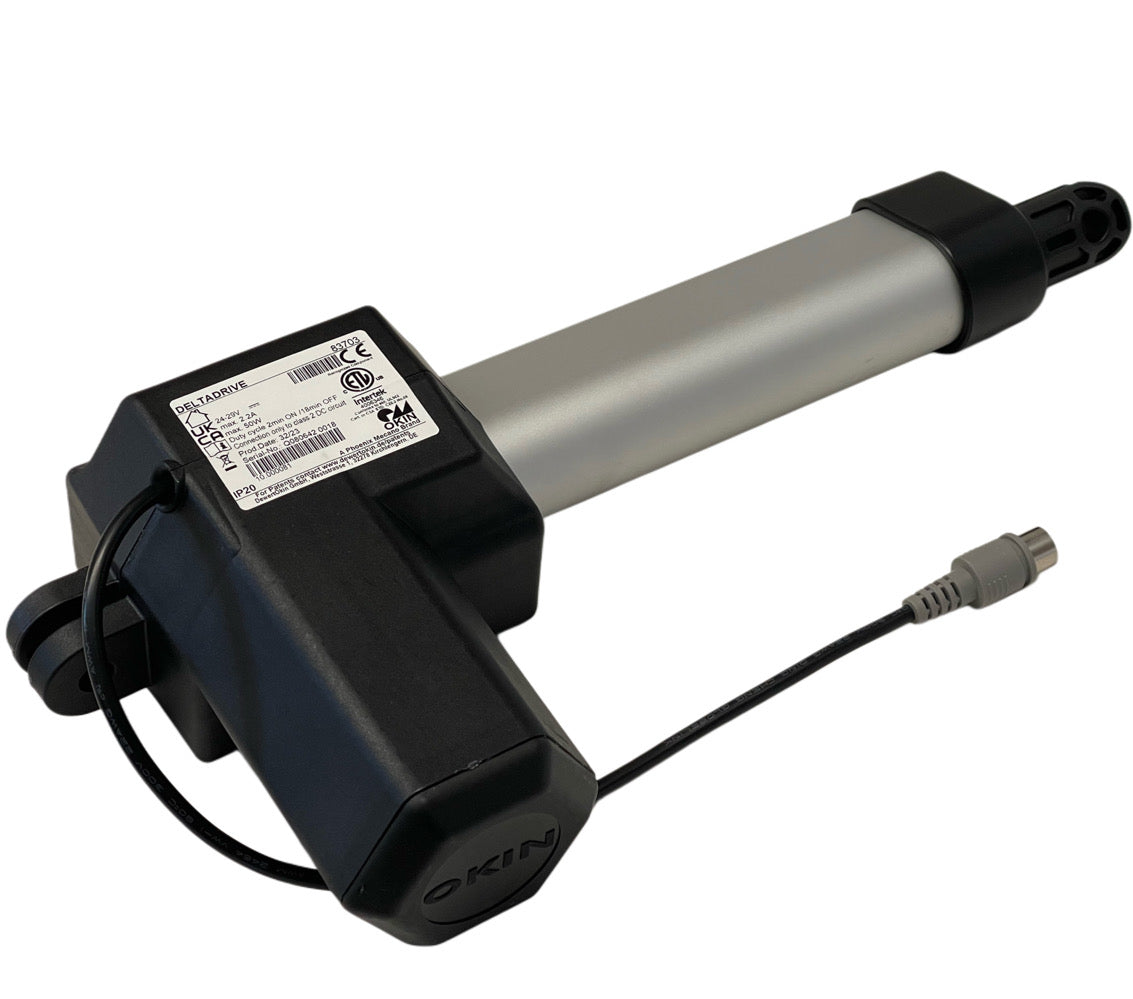

Genuine Okin Deltadrive 83703 Lift Chair Actuator Motor

Restore powered movement to a compatible lift chair with the genuine Okin Deltadrive 83703 replacement actuator motor. This listing records a round grey seven-pin lead and selected La-Z-Boy lift-chair applications.

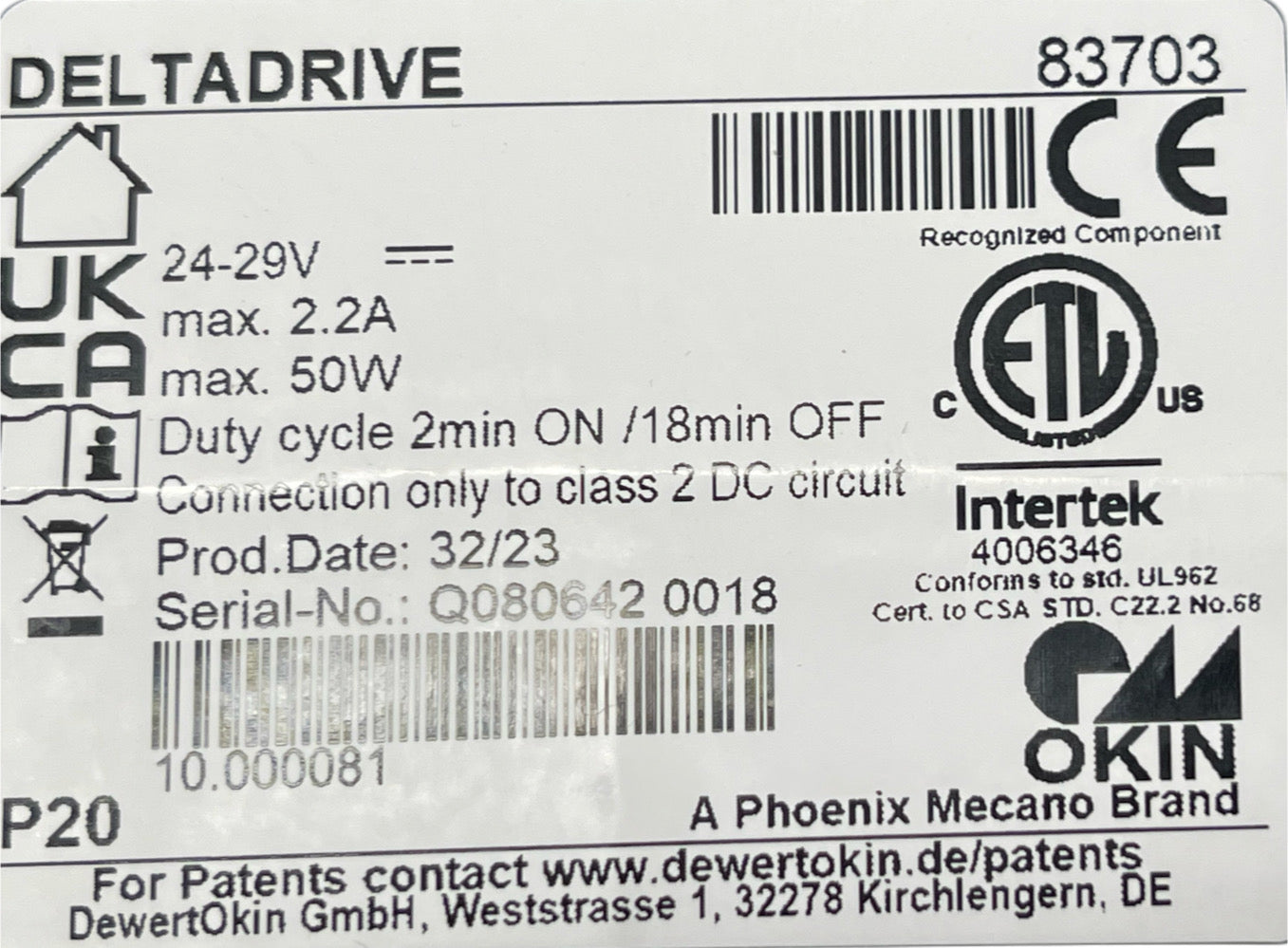

Specifications from the motor label

• Brand: Okin (DewertOkin)
• Motor model and Okin MPN: DELTADRIVE 83703
• La-Z-Boy part number printed on the motor label: 10.000081
• Power rating: 24–29V DC
• Maximum current: 2.2A
• Maximum power: 50W
• Duty cycle: 2 minutes on / 18 minutes off
• Power connection: only to a Class 2 DC circuit
• Connection recorded for this listing: round grey seven-pin lead

Compatibility

Both Okin model 83703 and La-Z-Boy part number 10.000081 appear on the supplied motor label. Order by the exact actuator model and physical configuration, not the chair brand or part number alone. Compare the grey seven-pin connector, mounting points, stroke and installation dimensions with the original motor. La-Z-Boy chair ranges can use different motors and wiring. If unsure, call or email CouchGuard with clear photos of the original label, connector, mounting ends and complete actuator.

How to remove and replace the actuator

1. Disconnect the chair from mains power and any battery supply. Do not work on a powered mechanism.
2. Place the chair in a stable position and safely support any moving sections that the actuator holds; do not rely on the old actuator to support their weight.
3. Photograph the original motor label, both mounting ends, the mounting pins and the cable routing. Confirm the original is 83703 and compare the plug and physical dimensions with the replacement before removing parts.
4. Disconnect the original connector by its housing, without pulling the wires. Free the cable from any clips or ties while noting its original route.
5. With the mechanism and moving sections supported, remove the retaining clips from the mounting pins that hold the actuator motor in the existing mechanism. Withdraw the mounting pins and lift out the old actuator. Keep the pins and clips in order; do not reuse damaged retainers.
6. Position the replacement actuator in the same orientation. Align the mounting holes without forcing the mechanism, reinstall the mounting pins through the actuator and existing mechanism, and securely refit the retaining clips. Route the lead clear of moving linkage and pinch points.
7. Connect the matching plug to a compatible Class 2 DC circuit. Clear tools and hands from the mechanism, restore power, and test movement briefly while watching for binding or pinched wiring. Stop and disconnect power if anything does not move correctly.

Safety: Chair mechanisms can move suddenly or trap fingers. If the mechanism cannot be safely supported or the pins and retainers differ from the original, use a qualified repairer. Respect the motor label's 2-minute on / 18-minute off duty cycle.

Frequently asked questions

What is La-Z-Boy part number 10.000081?

It is the La-Z-Boy part number printed on the supplied Okin Deltadrive 83703 motor label. The Okin motor model and MPN remain 83703. Confirm the original model, connector and mounting configuration before ordering.

What are the electrical ratings?

The label states 24–29V DC, maximum 2.2A and maximum 50W, with connection only to a Class 2 DC circuit.

How long can the motor run?

The labelled duty cycle is 2 minutes on followed by 18 minutes off.

Which connector does this listing use?

It records a round grey seven-pin lead. Compare your original plug and pin arrangement before ordering.

Will it fit every La-Z-Boy lift chair?

No. Match model 83703, its connector, mounting points, stroke and dimensions to your existing actuator.

Can I replace it myself?

Only if you can disconnect all power, safely support moving sections and correctly match and secure the replacement mounting pins and retainers. Otherwise ask a qualified repairer.

What should I photograph for a compatibility check?

Photograph the complete original actuator, its label, connector and both mounting ends.

Can CouchGuard help confirm compatibility?

Yes. Send those photos by email or call so we can help compare the replacement before you order.
