Buy Genuine Okin Deltadrive B15824 Lift Chair Actuator Motor

Genuine Okin Deltadrive B15824 lift chair actuator

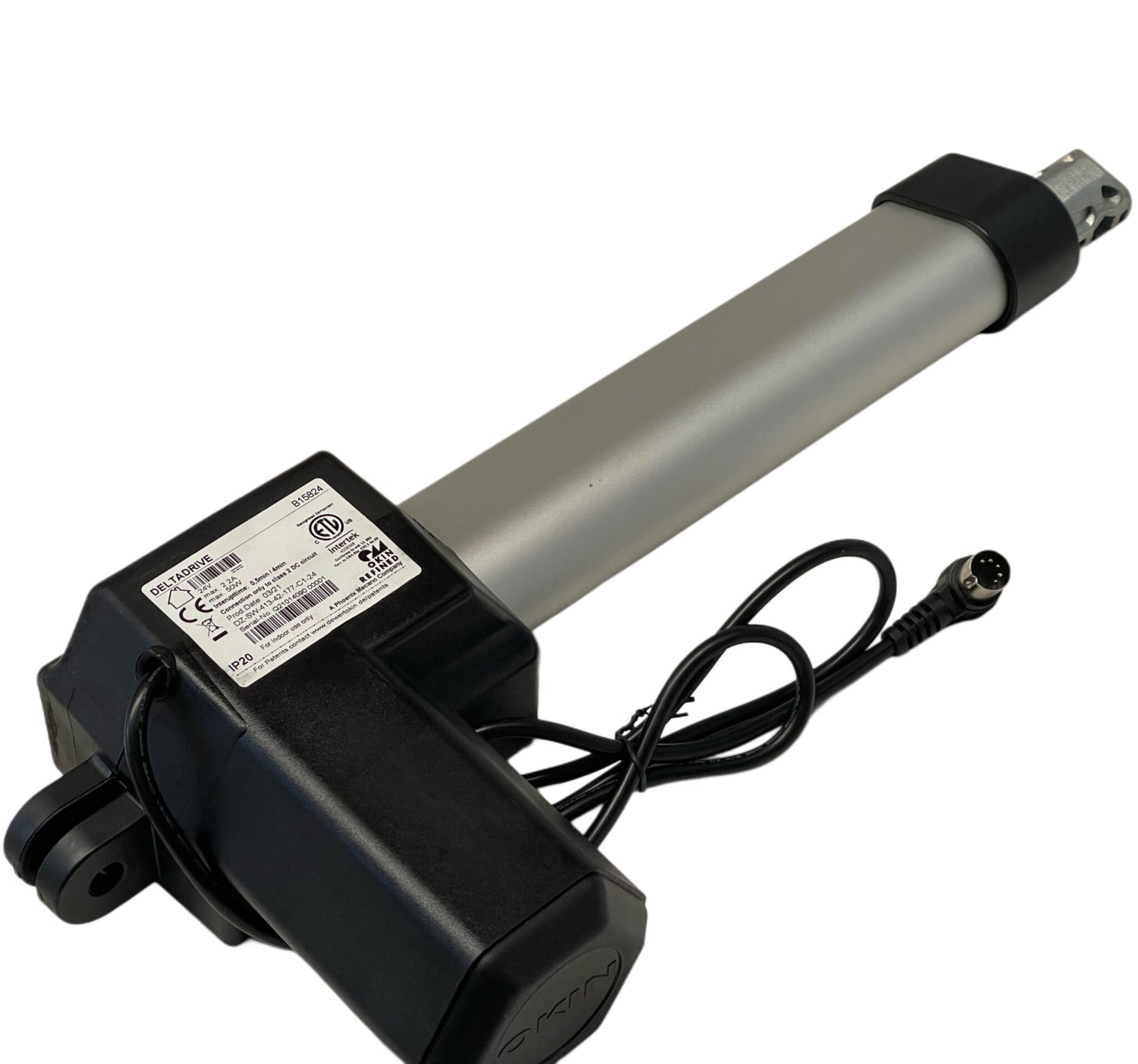

Replace a matching lift chair motor with the genuine Okin Deltadrive B15824 actuator. The photographed unit has a black motor housing, metal ram casing, mounting ends and a round five-pin plug with a right-angle cable exit. Compare the complete original model, mounting arrangement and electrical connection before ordering.

Includes free shipping within Australia.

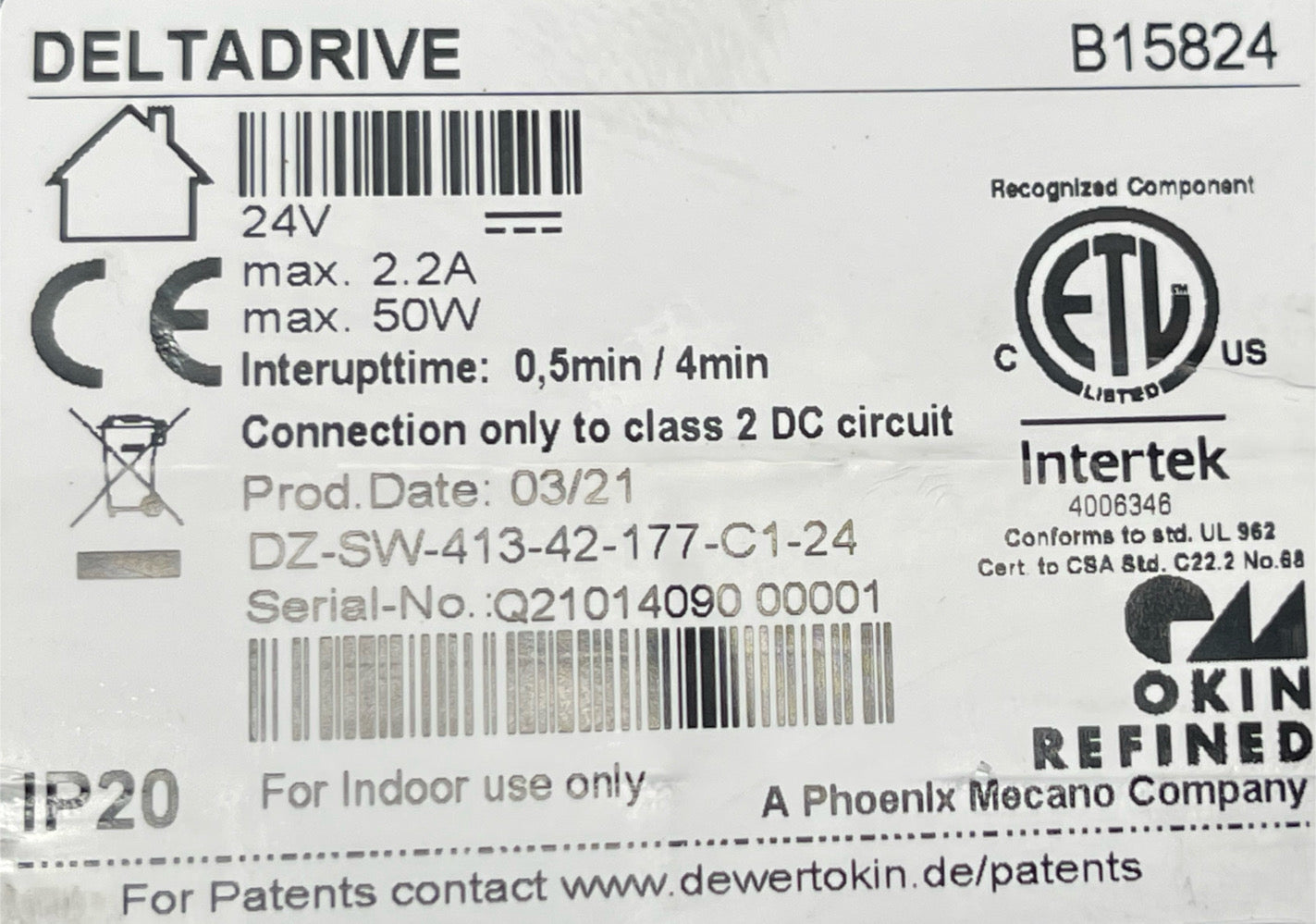

Label-confirmed specifications

• Model: DELTADRIVE B15824.
• Voltage: 24V DC.
• Maximum current: 2.2A.
• Maximum power: 50W.
• Timing printed on label: Interupttime: 0.5min / 4min.
• Connection restriction: only to a Class 2 DC circuit.
• Protection rating: IP20.
• Use: indoor use only.
• Additional label reference: DZ-SW-413-42-177-C1-24.

Connector and compatibility

The photos show a male round five-pin connector with a 90-degree cable exit. Match the pin arrangement and keying as well as the pin count. Compare the B15824 model, 24V electrical system, mounting ends, fixing positions, travel and dimensions with your original actuator. Similar-looking Okin motors and other Deltadrive models are not automatically interchangeable.

The listing previously noted that the supplied part may vary in appearance from the image. Confirm the exact model and installation requirements rather than relying on appearance alone. If unsure, send CouchGuard clear photos of the original label, full actuator, plug face and mounting points before ordering.

Safe replacement guidance

Disconnect mains power and any battery supply before inspection or replacement. Safely support the chair mechanism and keep clear of loaded or moving parts. Do not remove fixing pins from an unsupported mechanism. Compare the replacement mounts and connection before installation, and do not force plugs or modify wiring. Route the lead clear of the mechanism. Use an experienced repairer if the mechanism cannot be safely supported or electrical compatibility is uncertain. Observe the operating/rest timing shown on the original actuator label.

Frequently asked questions

Which model is supplied?

Genuine Okin Deltadrive B15824. The photographed label also carries reference DZ-SW-413-42-177-C1-24.

What voltage is specified?

24V DC, with connection only to a Class 2 DC circuit.

What are the current and power ratings?

The label specifies maximum 2.2A and maximum 50W.

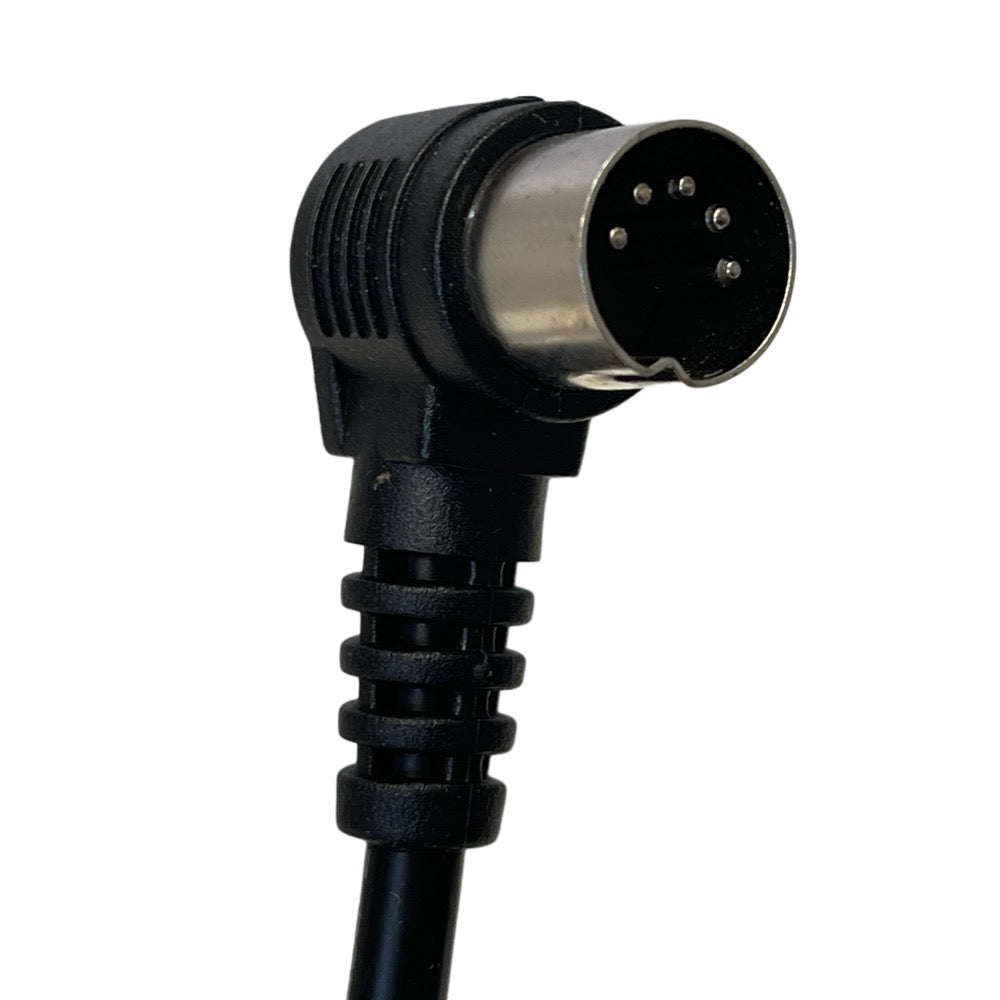

What connector does it use?

A male round five-pin plug with a right-angle cable exit. Compare pin arrangement and keying with your original.

What operating timing is printed?

The photographed label reads Interupttime: 0.5min / 4min. Follow the applicable operating and rest requirements for the matching original system.

What are the stroke, mounting length, speed and force?

These measurements are not explicitly specified on the photographed label. Check the original part and installation; do not derive specifications from digits in the reference code.

Will any Okin Deltadrive motor fit?

No. Match the exact model, mounts, travel, dimensions, connector and electrical system before ordering.

How can I confirm compatibility?

Send CouchGuard photos of the original label, complete actuator, connector face and mounting points before purchasing.
