Okin JLDK.15.08.11-DCS Right-Hand Recliner Switch

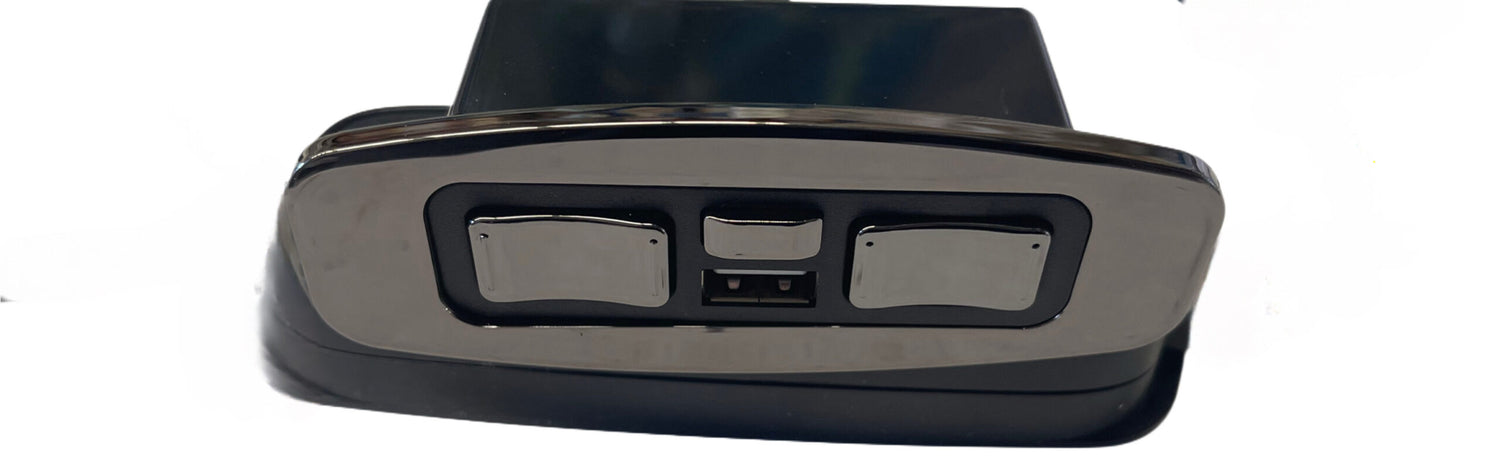

Replace a matching recliner control with this genuine Okin four-button switch. The JLDK.15.08.11-DCS combines chair controls, a home function and built-in USB charging in an elegant mirror-finish face.

Key features

• Model: JLDK.15.08.11-DCS
• Brand: Okin
• Mounting side: Right-hand side when seated
• Controls: Four buttons including home function
• Charging: Built-in USB port
• Finish: Mirror finish

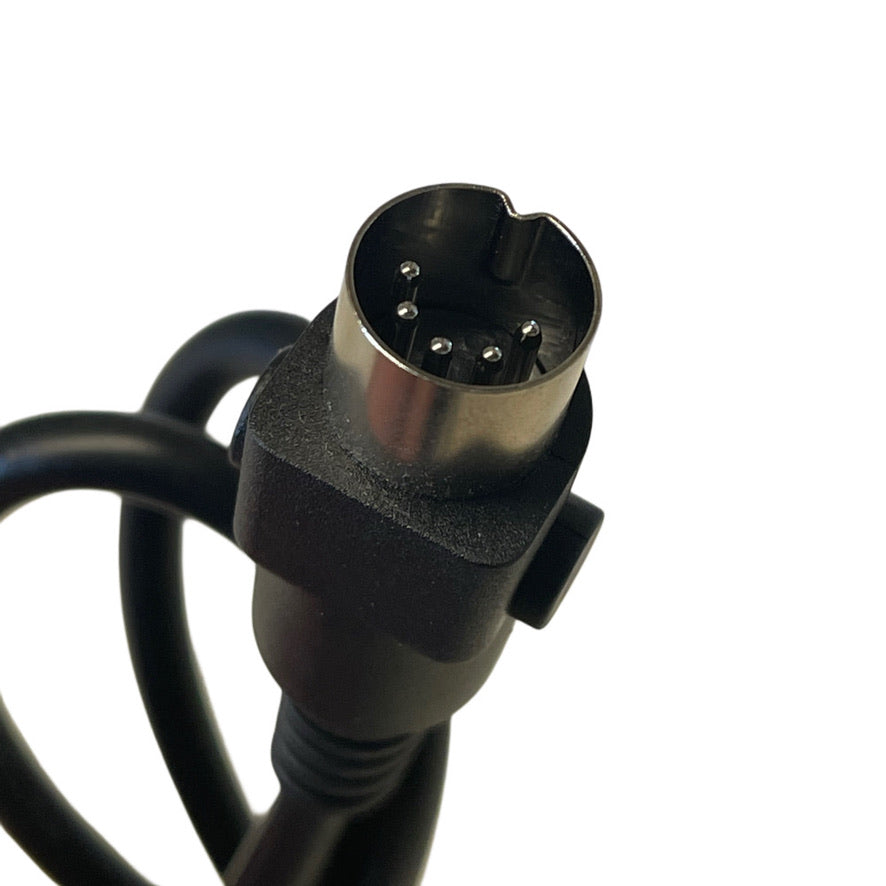

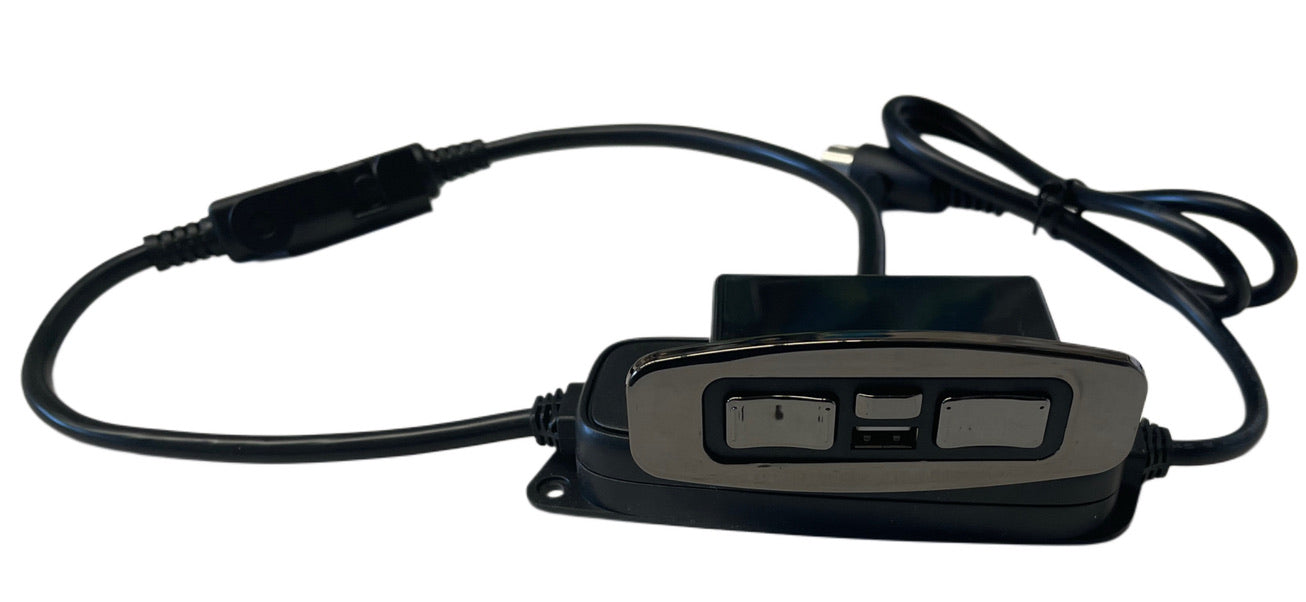

• Connection: Right-angled 5-pin plug with wiring

Check compatibility before ordering

Confirm JLDK.15.08.11-DCS on your original switch or system. Check that you need the right-hand version, then compare the 5-pin plug, wiring and mounting dimensions. The matching left-hand model is JLDK.15.08.12-DCS.

Frequently asked questions

Which side of the chair does this switch fit?
It is the right-hand version when sitting in the chair.

What functions are included?
It has four chair-control buttons including a home function, plus a built-in USB charging port.

Will it fit any electric recliner?
No. It is intended for compatible recliners using the Okin JLDK.15.08.11-DCS configuration. Check the model, mounting side, plug, wiring and dimensions before ordering.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
