Buy Okin JLDK.38.04.19 Lift Chair Handset | 7-Pin & USB

Okin JLDK.38.04.19 replacement lift chair handset

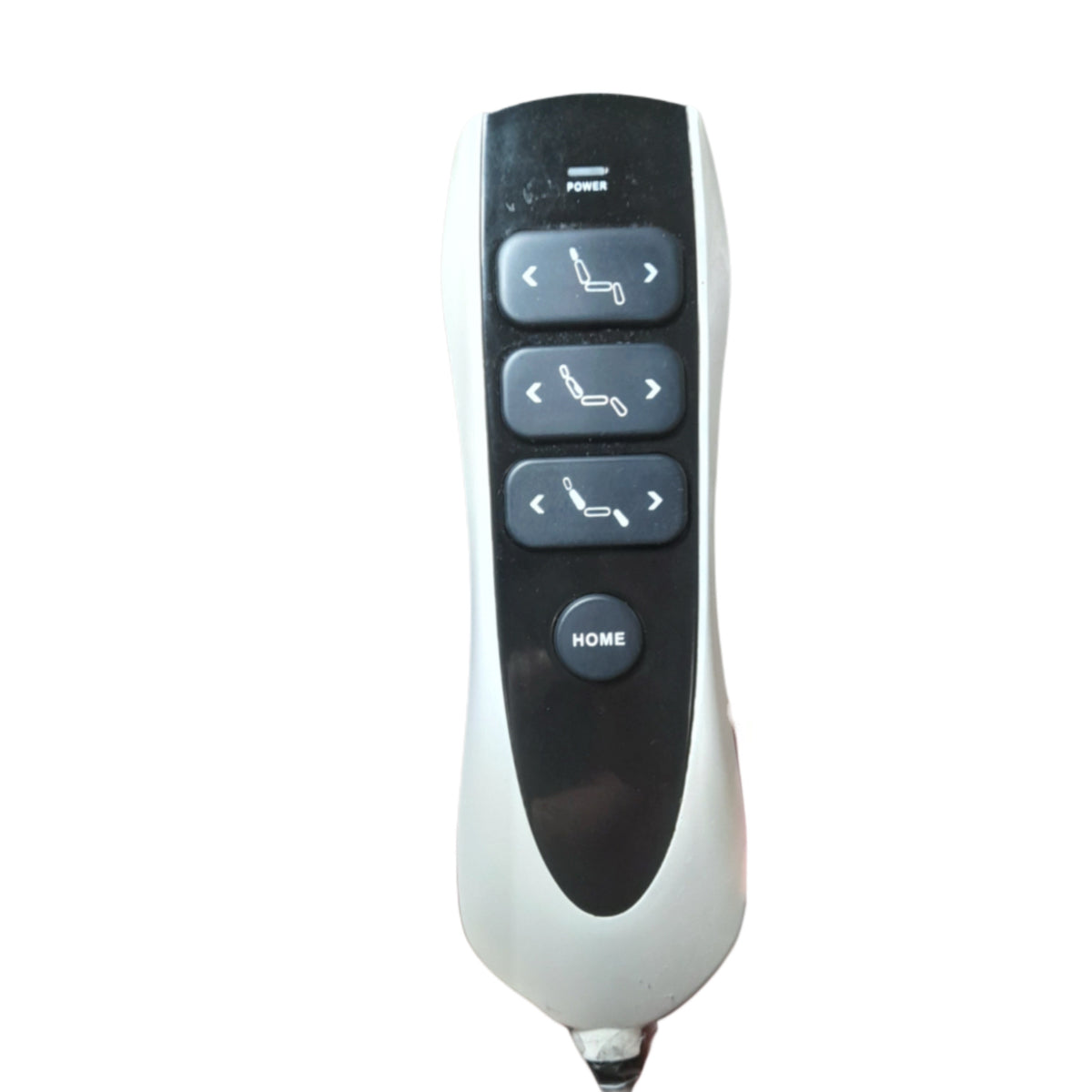

The genuine Okin JLDK.38.04.19 is a replacement handset for compatible three-motor lift chair and electric recliner control systems. Its black-and-silver housing has three paired rocker controls, a separate HOME button and a POWER indicator, with a coiled cable and round seven-pin male plug.

Replace a damaged or worn handset with the correct model for your chair. Match the complete model reference, button functions, connector and control system rather than choosing by appearance or pin count alone.

Product details

• Brand: Okin
• Model / manufacturer part number: JLDK.38.04.19
• Series: Atlas family / JLDK-38
• Input: DC 29V, 2A
• USB charging output: 5V, 2A
• Controls: three paired rocker controls and a separate HOME button
• Indicator: POWER
• Connection: round seven-pin male DIN-style plug

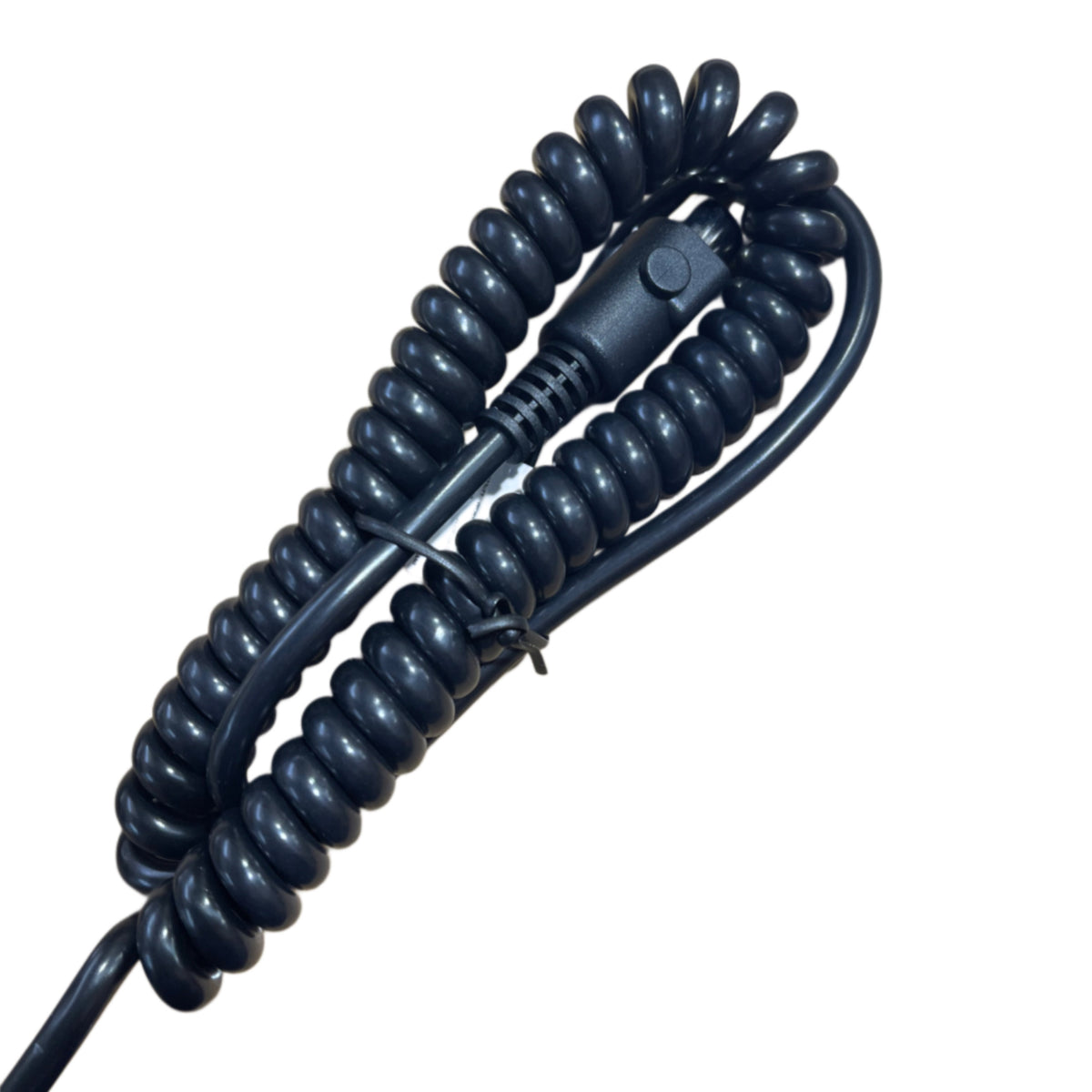

• Cable: coiled, approximately 1.8m total length
• Backlit button text or icons
• Application: matching three-motor chair systems

Check compatibility

This handset is intended for matching triple-actuator systems with independent backrest, footrest and powered headrest or lumbar adjustment, depending on the chair configuration. Compare every button icon and function with your original handset. It is not a universal controller for all Okin-equipped chairs or all JLDK-38 models.

Check the full JLDK.38.04.19 model reference, plug face, pin arrangement, keying and chair control-box requirements. A matching seven-pin plug does not establish matching wiring. If unsure, contact CouchGuard on 1300 268 244 with clear photos of your original handset, rear label, plug and control-box label before ordering.

Replacing a matching handset

Disconnect the chair from mains power and any battery backup before unplugging the original handset. Follow the chair manufacturer's service instructions, align the connector correctly and never force the pins or alter wiring. Route the cable away from moving mechanisms and pinch points. Use a qualified repair technician if access or compatibility is uncertain.

Frequently asked questions

What is the Okin JLDK.38.04.19?

It is a replacement lift chair handset for matching three-motor control systems, with three paired rocker controls and a separate HOME button.

What connector does it use?

It has a round seven-pin male DIN-style plug. Match the connector keying, pin layout and chair control system, not just the pin count.

Does it have a coiled cable?

Yes. This handset has a coiled cable, with an approximate total cable length of 1.8m.

Does it include USB charging?

Yes. The USB charging output is 5V, 2A. This is separate from the handset input rating of DC 29V, 2A.

Which chair movements does it control?

It is configured for matching three-motor systems covering backrest, footrest and powered headrest or lumbar adjustment, depending on the chair. Match the original button functions before ordering.

Will it work with any Okin lift chair?

No. Okin-equipped chairs can use different handsets, wiring and control boxes. Match the complete JLDK.38.04.19 reference and installation.

Will a replacement handset fix a chair that has stopped moving?

Not necessarily. Power-supply, cable, control-box and actuator faults can cause similar symptoms. Identify the fault before replacing parts.

What information helps confirm the correct replacement?

Provide clear photos of your original handset front, rear model label, plug face and control-box label, plus the chair model and a description of any failed functions.
