Buy Genuine Okin JLDQ.11.156.700A Actuator Motor

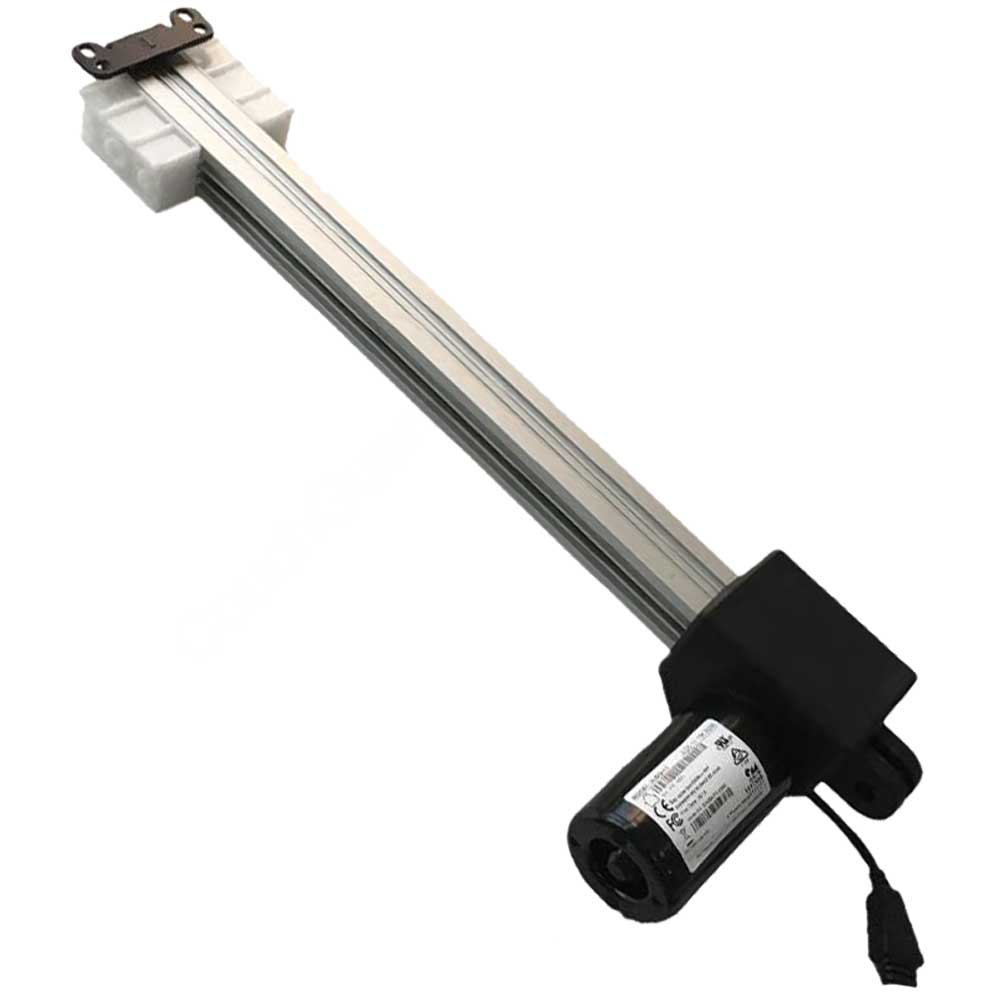

Genuine Okin JLDQ.11.156.700A actuator motor

Replacement actuator motor for a powered recliner fitted with an Okin JLDQ.11.156.700A. The white block travels 700 mm along its track. Match the complete model number on your existing motor before ordering; motors within the JLDQ.11 family can differ in mounting and connectors, so the family name alone does not establish fit.

JLDQ.11.156.700A specifications

• Stroke (white-block travel): 700 mm
• Rated push force: 750 N
• Rated pull force: 750 N
• Input voltage: 24–29V DC
• Maximum power consumption: 50 W
• Maximum travel speed: 42 mm per second
• Duty cycle: maximum 1 minute running, followed by at least 8 minutes off

The force ratings describe the actuator, not a chair weight capacity. Overall retracted and extended installation dimensions have not been supplied; measure and compare the original assembly before ordering.

Check your original actuator

• Confirm the full JLDQ.11.156.700A model code on the original motor label.
• Compare the original motor's 700 mm white-block travel, installed dimensions, mounting points, connector and wiring. Do not derive the overall installed dimensions from the model code.
• If the label is hard to read or any detail differs, send CouchGuard clear photos of the motor label, connector, both mounting ends and the installed assembly for a fit check.

Replacing the actuator

Disconnect power and support moving chair sections before working beneath the recliner. Photograph the original wiring and mounting arrangement. While supporting the mechanism, remove the retaining clips and mounting pins, then take out the old motor. Fit the replacement in the same orientation, reinstall the pins and secure their clips, reconnect the matching plug and cautiously test with hands clear of moving parts. If wiring, mounts or travel do not match, stop rather than forcing the connection; seek qualified help if needed.

Frequently asked questions

Will every JLDQ.11 motor fit my chair? No. Match the complete JLDQ.11.156.700A model, 700 mm white-block travel and the original motor's physical and electrical connections.

What does 700 mm stroke mean? The white block moves 700 mm along the track. This is its travel, not the motor's overall installed length.

What are the electrical ratings? The specified input is 24–29V DC with maximum power consumption of 50 W. Match the original system and connector.

What are the force and speed ratings? Rated push and pull force are 750 N each; maximum travel speed is 42 mm per second. The force rating is not a chair weight rating.

Can the motor run continuously? No. Run it for no more than 1 minute, then allow at least 8 minutes off.

Can I choose a replacement by chair brand? Not by brand alone. Compare the complete motor model, 700 mm travel, mounting and connector.

Will a new actuator fix a recliner that does not move? Not necessarily. The switch, power supply, wiring or control system may also be involved.
