Buy Genuine Okin JLDQ.12.133.226E Recliner Actuator, Replaces 226C

Genuine Okin JLDQ.12.133.226E recliner actuator

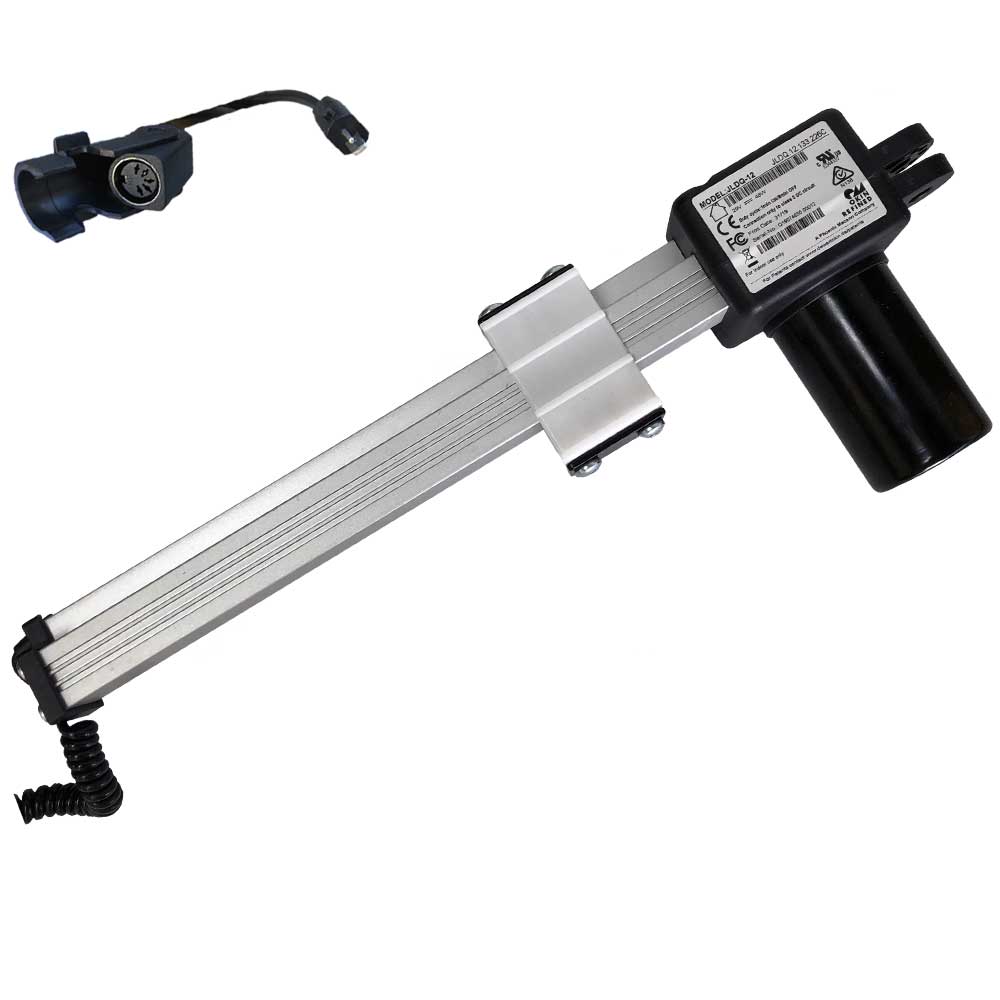

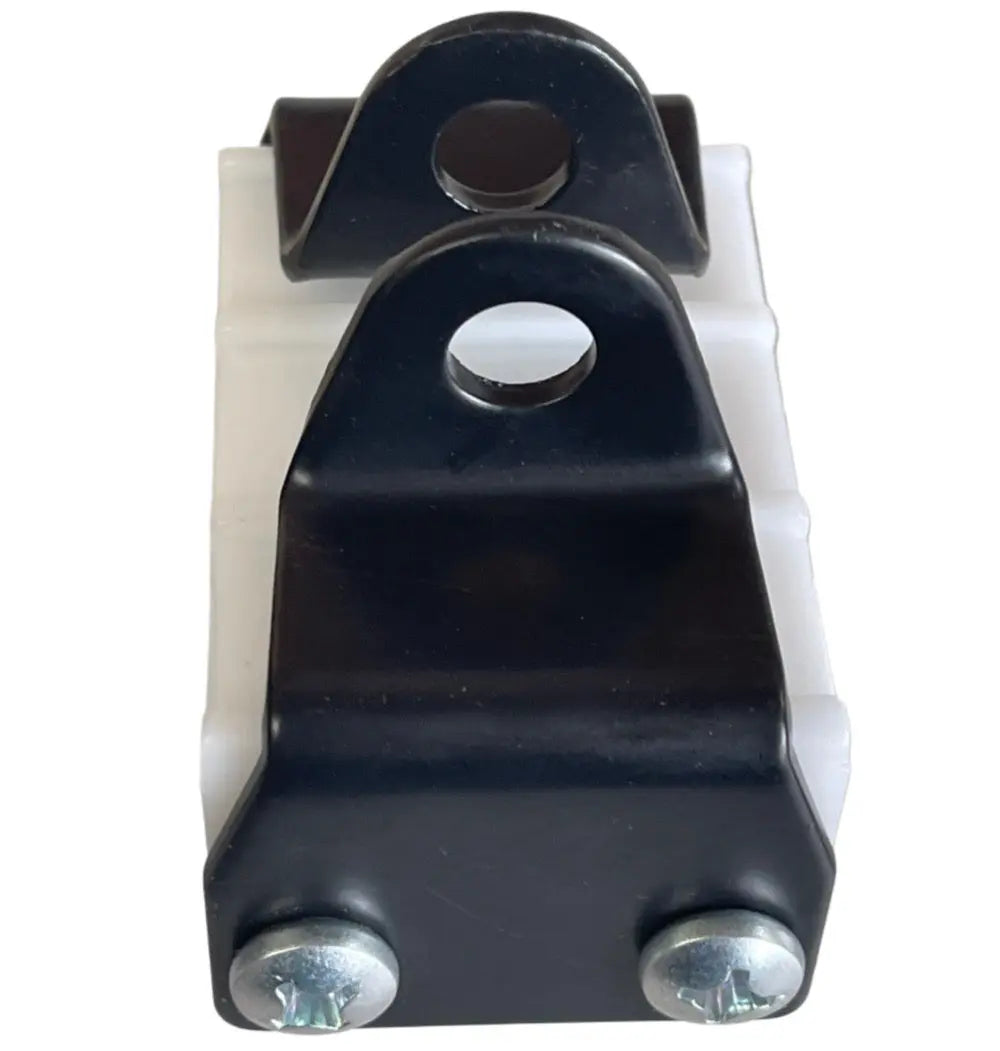

The newer JLDQ.12.133.226E model replaces JLDQ.12.133.226C in matching electric recliner installations. This genuine Okin rail actuator has a sliding mounting assembly, a round five-pin female handset socket and a two-pin flat-blade/round-pin I/O power connection. Match the original installation before ordering.

Okin JLDQ.12.133.226E Specifications

• Device Type: Electric Recliner Actuator Motor.
• Model / Series: JLDQ-12.
• Part Number: JLDQ.12.133.226E.
• Previous Model Reference: JLDQ.12.133.226C.
• Power Rating: 29V DC, 48W.
• Duty Cycle: 1 min ON / 8 min OFF.
• Electrical Connection Requirement: Class 2 DC circuit only.

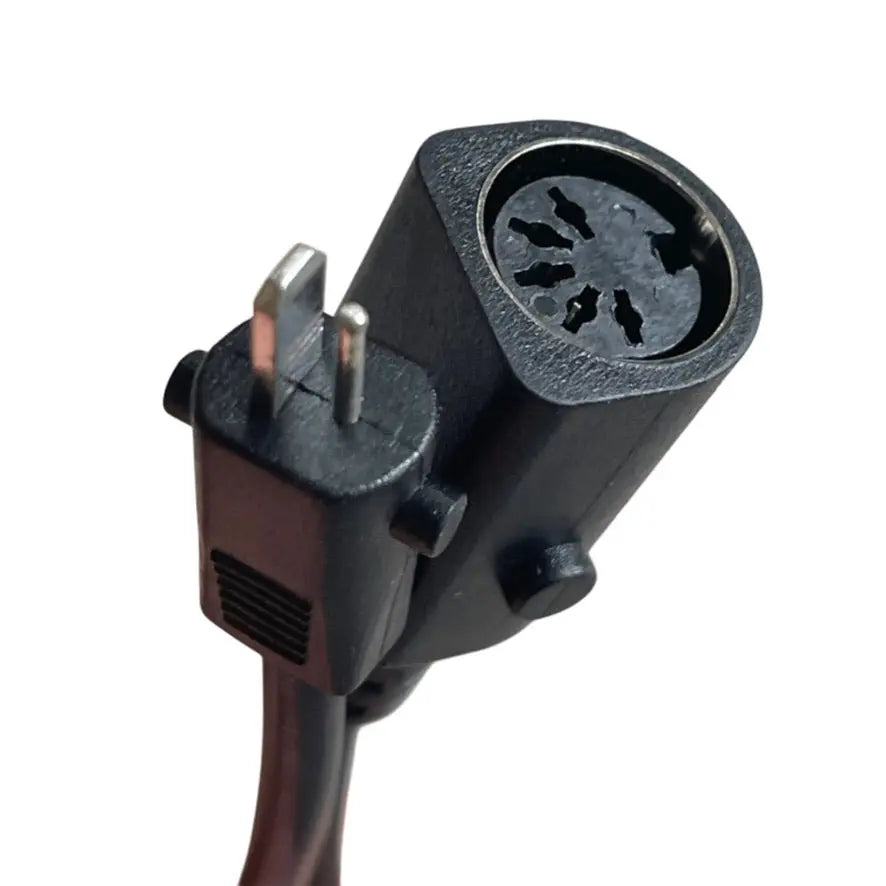

• Handset Connection: Round five-pin female socket.
• Power Connection: Two-pin flat-blade/round-pin I/O plug.
• Overall Length: 405mm, as recorded for this listing.
• Stroke: 226mm, as recorded for this listing.
• Power Lead Length: 400mm, as recorded for this listing.

Replacement and compatibility checks

The supplied model is JLDQ.12.133.226E, not the earlier C model. Compare the original actuator label, mounting points, overall dimensions, travel, connector keying, wiring and electrical requirements. Similar model numbers or a five-pin connection alone do not establish fit. Send CouchGuard photos of the original label, complete actuator, mounts and connector faces if you need help choosing.

Replacement guidance

Disconnect mains power and any battery supply before inspection or replacement. Safely support the mechanism before removing mounting hardware; do not release a loaded mechanism without appropriate support. Match connectors without forcing plugs or modifying wiring, and keep leads clear of moving parts and pinch points. Observe the 1-minute ON / 8-minute OFF duty cycle. Use an experienced repairer if safe support or compatibility is uncertain.

Frequently asked questions

Which model is supplied?

Genuine Okin JLDQ.12.133.226E, the newer model identified for this listing.

Why does the original listing refer to 226C?

JLDQ.12.133.226C is the previous model reference. The listing now supplies JLDQ.12.133.226E for matching installations.

What voltage and power does it require?

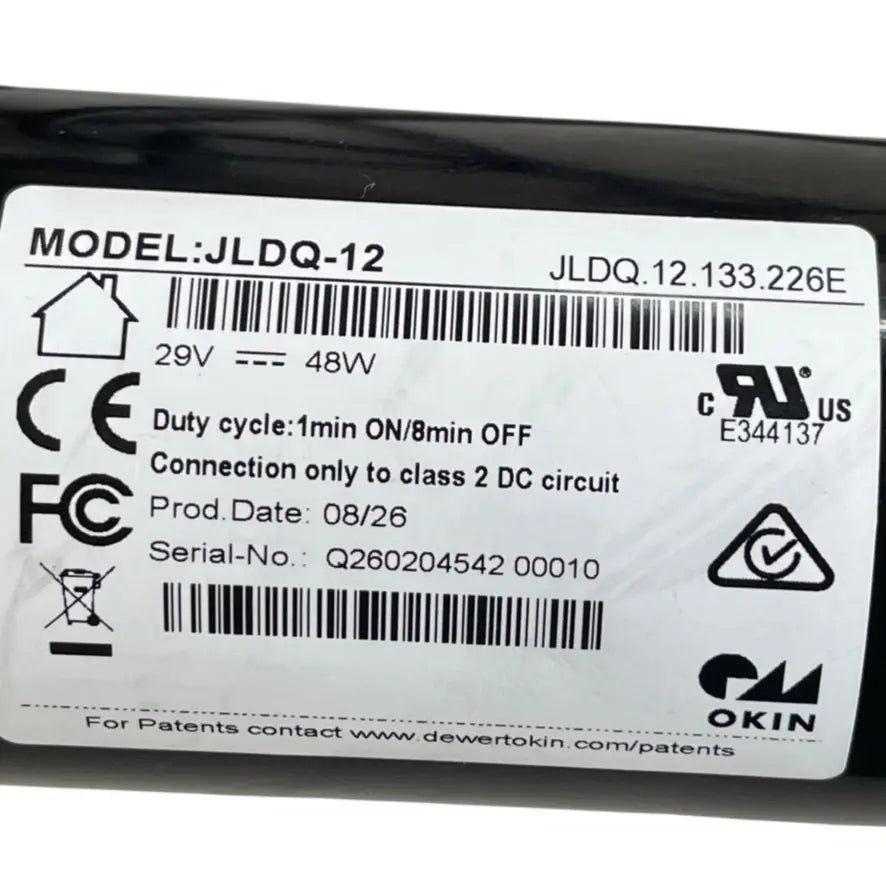

The label specifies 29V DC and 48W, with connection only to a Class 2 DC circuit.

What is the duty cycle?

1 minute ON followed by 8 minutes OFF.

How does the handset connect?

Through a round five-pin female socket. Match the original keying, pin arrangement and wiring.

What power plug does it use?

A two-pin flat-blade/round-pin I/O plug. Match the supply requirements and polarity.

What dimensions are recorded for this listing?

405mm overall length, 226mm stroke and a 400mm power lead. Compare the original mounting arrangement and travel before ordering.

How can I confirm the correct replacement?

Send CouchGuard photos of the original label, complete actuator, mounts and both connector faces.

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
