Buy Okin JLDQ.12.157.333P Recliner Actuator

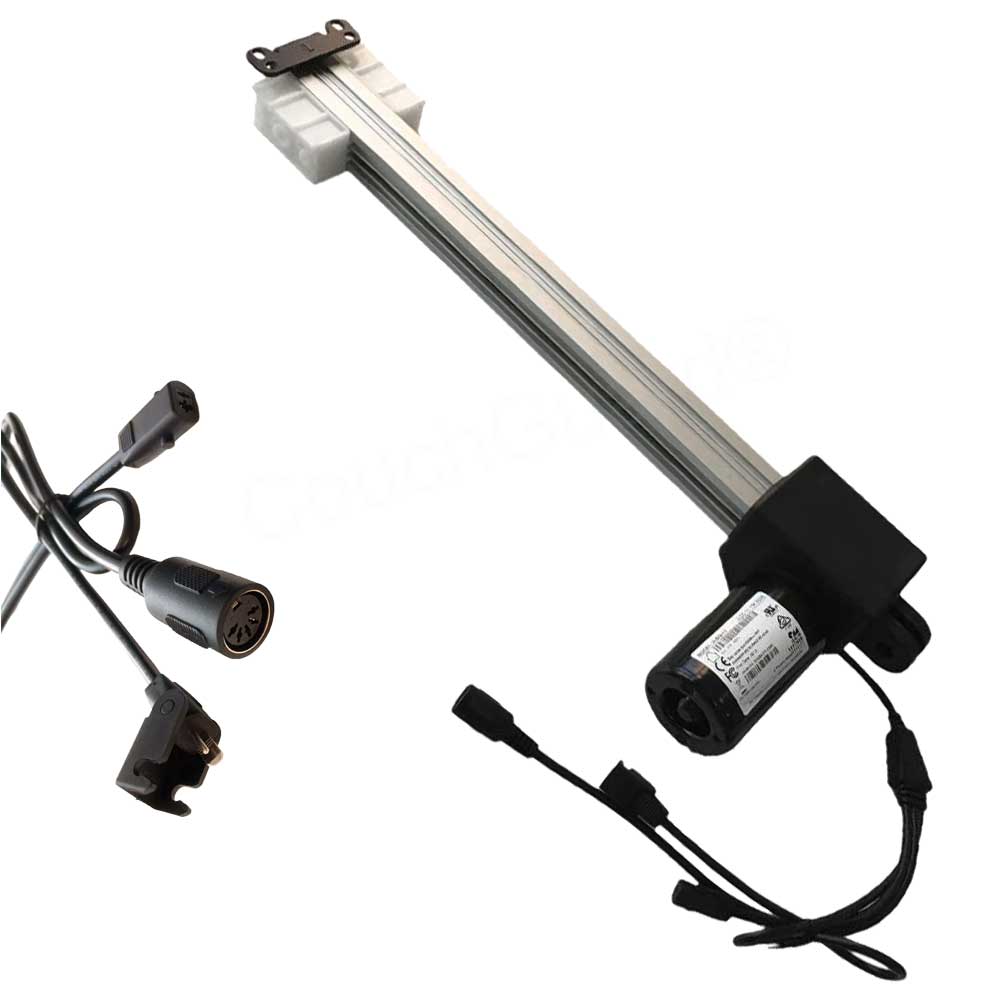

Okin JLDQ.12.157.333P recliner actuator

This genuine Okin linear actuator motor is a replacement option for compatible electric recliner mechanisms. It has a 333mm stroke and W cable configuration. Match the complete original model and the mechanical and electrical connections before ordering.

Okin JLDQ.12.157.333P Specifications

• Device Type: Linear Actuator Motor
• Model Number: JLDQ.12.157.333P
• Stroke Length: 333 mm
• Min Installation Size: 157 mm
• Max Extended Size: 490 mm
• Rated Voltage: DC 29V
• Power Rating: 48W
• Load Capacity: 750N (Push/Pull)
• Duty Cycle: 10.5% (1 min ON / 8 min OFF)
• Interfaces: 1 x 5-Pin Female DIN (Remote), 1 x Male 2-Pin OI (Power), 1 x Female 2-Pin OI (Auxiliary)

JLDQ.12 replacement checks

Existing replacement references include JLDQ.12.156.333K and 333-series suffixes A, D, E, F, I, L, M, P, Q, R, S, U, V, X and Z. Treat these as references to check, not a guarantee that every JLDQ.12 motor is interchangeable. Suffix differences can relate to cable configuration, so compare the plugs and wiring as well as the mechanical fit.

If your original is JLDQ.12.157.333W, confirm the required cable configuration before ordering this P listing. Compare stroke, installation dimensions, mounting ends, rating label, connectors and wiring. Send CouchGuard clear photos of the original label and connections for help checking suitability.

Installation and troubleshooting

Disconnect mains and backup power before changing the actuator. Support the mechanism safely, keep hands clear of pinch points, preserve the correct mounting arrangement and route wiring away from moving parts. Use a qualified repairer if unsure. A non-responsive recliner may also have supply, handset or wiring faults.

Frequently asked questions

What model is this actuator?

Okin JLDQ.12.157.333P.

What are its stroke and installation sizes?

333mm stroke, 157mm minimum installation size and 490mm maximum extended size. Match your original mounting arrangement.

What electrical and load ratings does it have?

DC 29V, 48W and 750N push/pull.

Which connections does it have?

A five-pin female DIN remote connection, male two-pin OI power connection and female two-pin OI auxiliary connection.

Can it replace another 333-series suffix?

Other suffixes are replacement references to check. Confirm the mechanical fit and electrical connections with CouchGuard before ordering.

What if my original ends in 333W?

Send the original label and connector photos so the required configuration can be checked against this listing.

Will replacing the actuator fix every recliner fault?

No. Power-supply, handset and wiring faults can also prevent movement.

How can I check compatibility?

Send photos of the original label, plugs and mounting ends, together with the stroke and installation measurements.

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
