Buy Genuine Okin Metal Fork Head / Front Clevis Mount, 25mm Left-Hand Thread

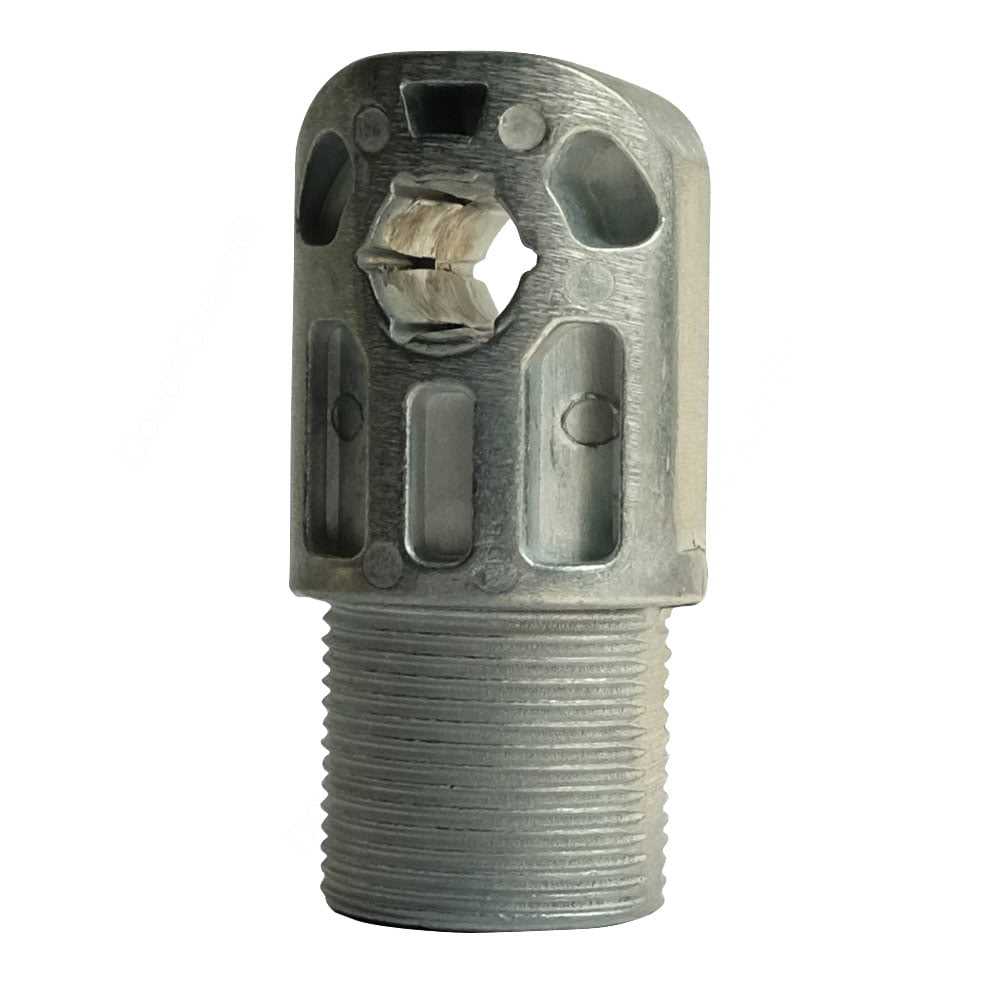

Genuine Okin metal fork head / front clevis mount

Replace a damaged matching actuator end fitting with this genuine Okin metal fork head, also called a front clevis mount. It screws into the end of the actuator stroke tube and connects that end of the motor to the chair mechanism through the clevis-pin mounting arrangement.

Specifications and application

• Part type: metal fork head / front clevis mount.
• Thread: 25mm left-hand thread.
• Material: metal.
• For matching Okin actuators, including compatible Deltadrive installations.
• Not suitable for the Dewert Megamat range.

Check the original fitting

Compare the original fork head, actuator model, thread diameter and direction, pin-hole arrangement and mounting dimensions before ordering. The Okin brand alone does not establish fit. Do not assume that a plastic fork head or another manufacturer's clevis mount is interchangeable.

Send CouchGuard photos of the original fitting, actuator label and mounting arrangement if you need help choosing the correct replacement.

Important installation guidance

Disconnect mains power and any battery supply, and support the chair mechanism safely before working on the actuator mount. Do not remove a clevis pin or release a loaded mechanism without appropriate support. Use an experienced repairer if you cannot safely support the mechanism.

Do not grip the very end of the fork head with multi-grips or similar tools. If such tools are needed, grip close to the threaded section. A left-hand thread tightens counter-clockwise and loosens clockwise. Do not force a mismatched thread. Check the pin and retaining hardware are correctly secured before returning the chair to service.

Frequently asked questions

What is a fork head?

It is the actuator end fitting that connects the stroke tube to the chair mechanism through a clevis-pin mount.

What is the thread specification?

25mm left-hand thread. Compare the original thread and mounting arrangement before ordering.

Which way does a left-hand thread tighten?

Counter-clockwise to tighten and clockwise to loosen, opposite to a standard right-hand thread.

Is it suitable for every Okin actuator?

No. It is for matching Okin installations. Check the actuator model, thread, fitting dimensions and pin arrangement.

Will it fit a Dewert Megamat?

No. This fork head is not suitable for the Dewert Megamat actuator range.

Can it replace a plastic fork head?

Do not assume interchangeability. Confirm the original actuator and matching thread, dimensions and mounting arrangement first.

Where should tools grip during installation?

If multi-grips or similar tools are required, grip close to the threaded section, not at the very end of the fork head.

How can I check the correct fitting?

Send CouchGuard photos of the original fork head, actuator label and chair mounting arrangement.
