Buy Okin PD12 65444 Power Supply

Okin PD12 65444 Power Supply

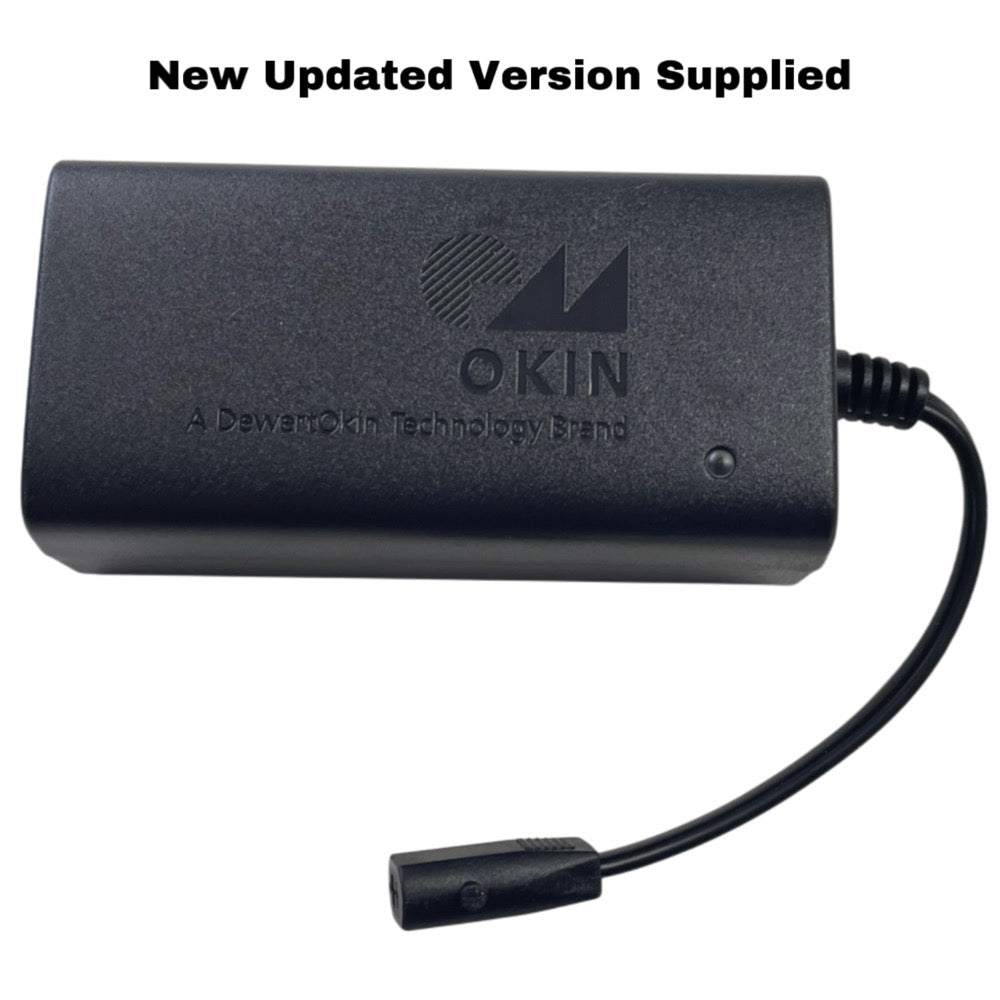

Updated version supplied: Orders for the Okin PD12 65444 will receive the updated-shape Okin power supply or equivalent specification shown in the new-version photos, model DOT-Z-290018A, article PW.20.18.000. This replaces the older housing design supplied under this listing.

Choose a replacement for your matching PD12 65444 lift-chair or electric-recliner installation using the familiar original reference. The updated unit has DC 29V 1.8A output and the straight flat-blade/round-pin connection. Match the original electrical requirements, connector and polarity before ordering.

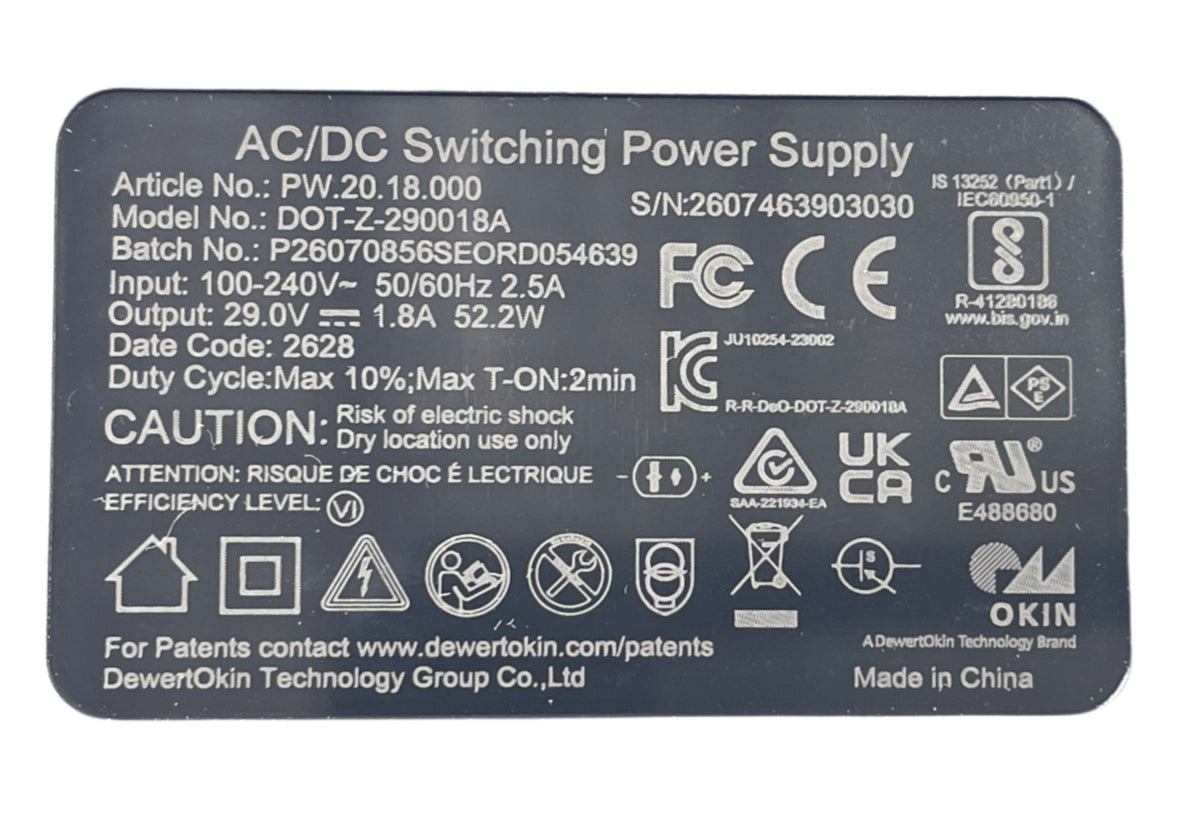

Specifications of the updated unit supplied

• Brand: Okin
• Original replacement reference: PD12 65444
• Supplied model: DOT-Z-290018A
• Article number: PW.20.18.000
• Input: 100–240V AC, 50/60Hz, 2.5A
• Output: DC 29V, 1.8A, 52.2W
• Connection: straight flat-blade/round-pin type, also described as OI
• Mains inlet: figure-8
• Duty cycle: maximum 10%; maximum continuous on-time 2 minutes
• Use: dry indoor locations only

Select the required option

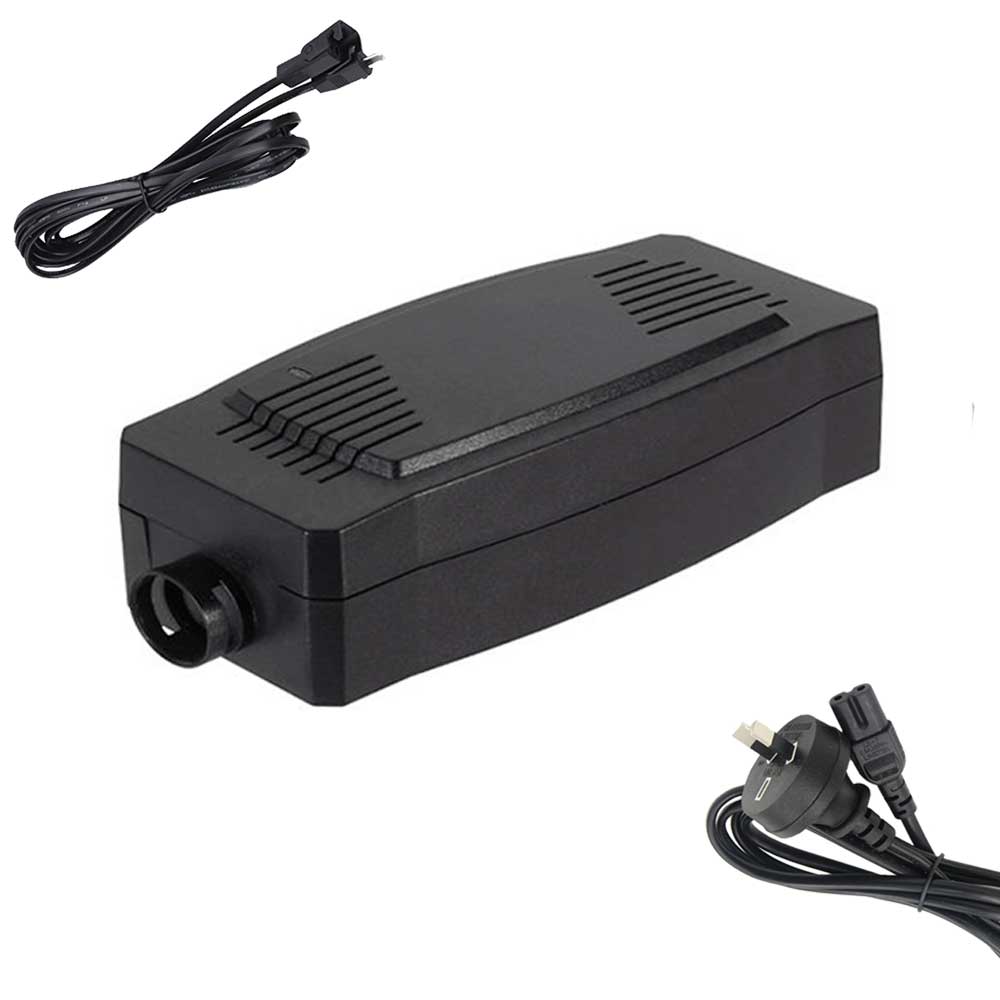

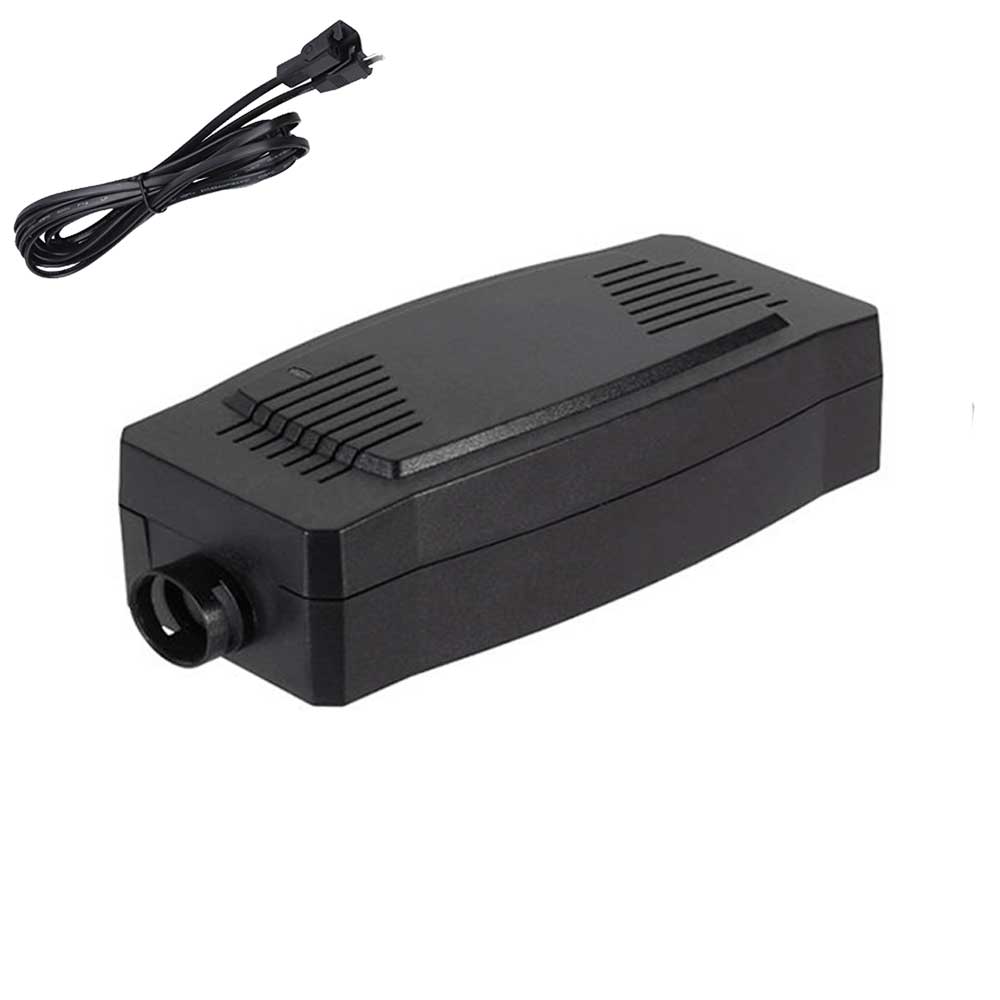

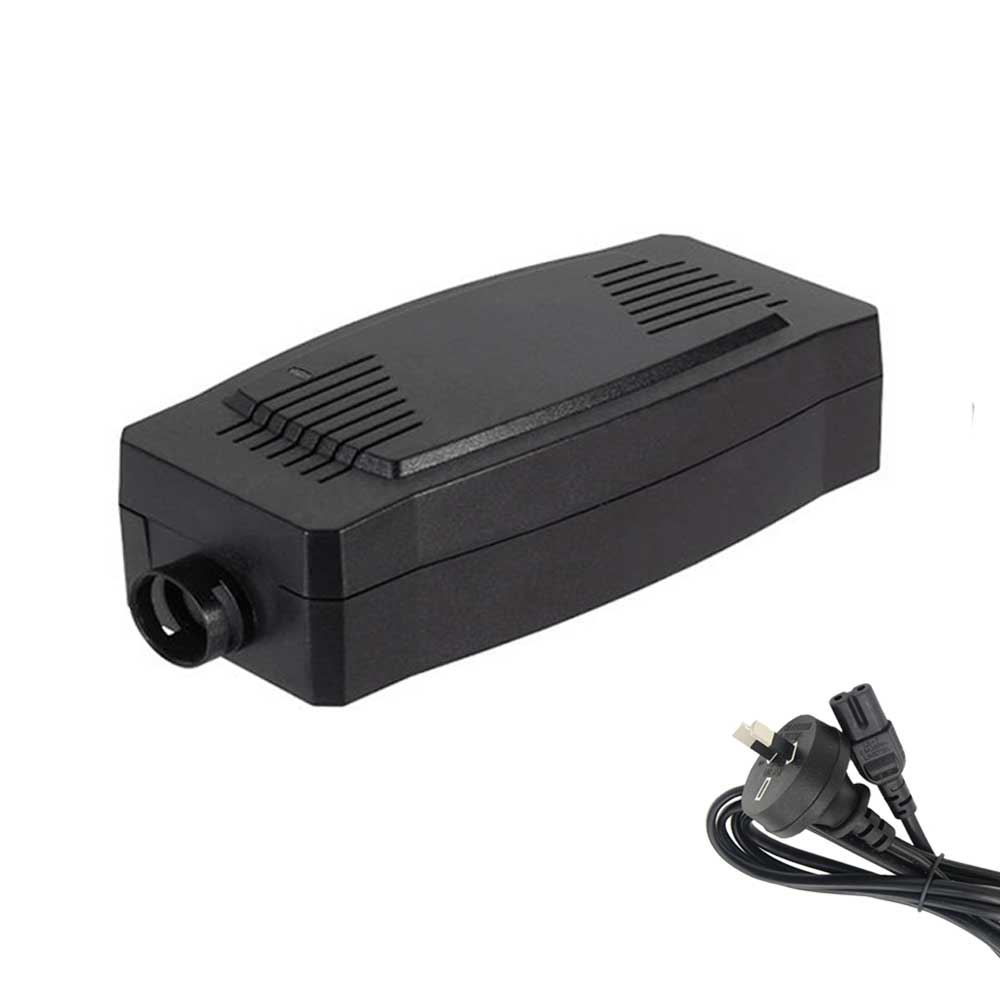

Choose from the existing power supply only, power supply with AU power lead, power supply with OI extension lead, or complete kit-form options. Check the selected option and its accessory inclusions before ordering. An Australian mains lead is not included with every option.

PD12 65444 versus PD12 65445

The PD12 65444 listing uses the straight flat-blade/round-pin connection. The PD12 65445 listing uses the angled connection. Compare the connector at the end of your original lead rather than choosing by housing shape alone. These are different connection configurations, not automatically interchangeable versions.

Check compatibility before ordering

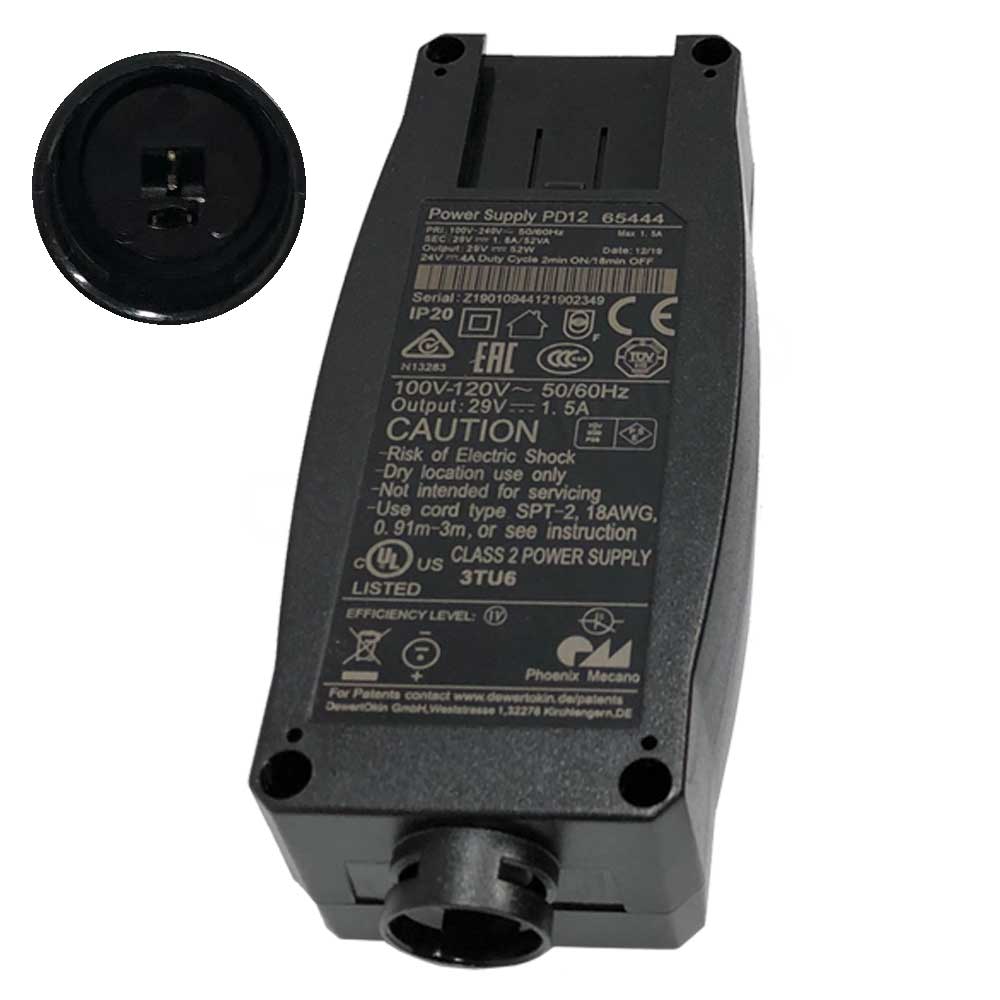

Check your original PD12 model reference, output voltage, current requirements, connector housing, pin arrangement and polarity. The supplied casing differs from the older design. A similar plug or the Okin brand alone does not confirm fit.

If you are unsure, call CouchGuard on 1300 268 244 with clear photos of your original power-supply label and connector. Movement faults can also involve the handset, wiring, actuator or control box, so identify the fault before replacing parts.

Frequently asked questions

Will I receive the original PD12 65444 housing shape?

No. The updated-shape Okin DOT-Z-290018A, article PW.20.18.000, is now supplied under this listing. Refer to the new-version photos for the current appearance.

Why does the heading still say PD12 65444?

PD12 65444 is the familiar original replacement reference. The current unit supplied has the model DOT-Z-290018A on its label. Match the listed specifications and connection with your installation.

What is the new version’s output?

The updated unit is rated DC 29V 1.8A, 52.2W. These are the specifications of the current version supplied, rather than the older 1.5A housing.

Which connector does this listing use?

The PD12 65444 uses the straight flat-blade/round-pin connection. Choose the PD12 65445 configuration if your installation requires the angled connection, after checking electrical compatibility.

Does every option include an Australian power lead?

No. Select the option explicitly including an AU power lead if required. Check accessory inclusions for the selected supply, extension-lead or kit-form option.

How should I connect the replacement?

Disconnect mains power before changing the supply. Use the appropriate mains lead, keep the unit dry and route cables clear of moving parts. Do not open the power-supply housing.

Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
