Buy Pride CTL150060 6-Button Lift Chair Handset with USB

Pride CTL150060 6-Button Lift Chair Handset with USB

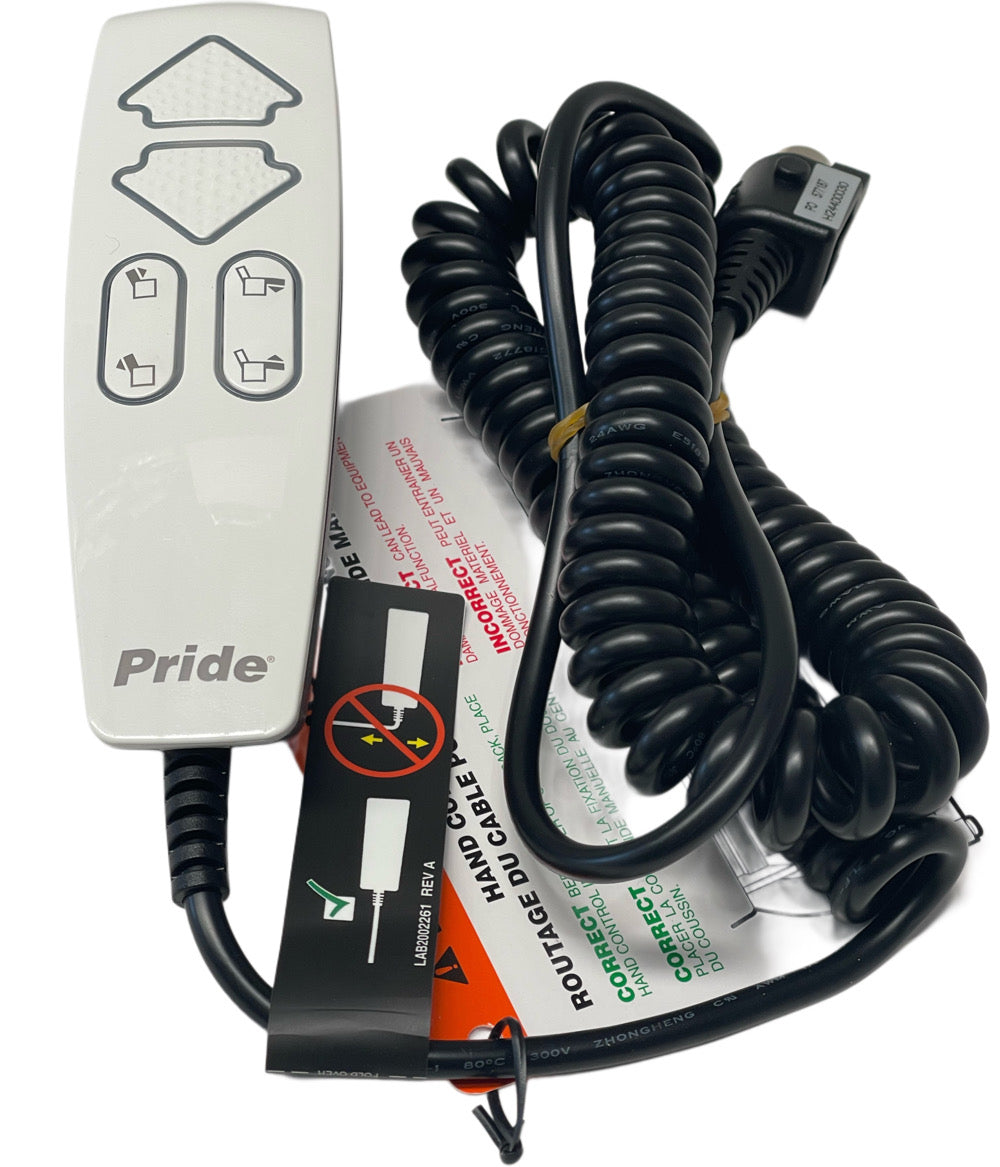

Genuine Pride CTL150060 wired replacement handset for a matching lift-chair system. This lift chair remote is listed with six control buttons, a USB port and a straight four-pin plug. Match the original handset reference and connections before ordering rather than choosing by appearance or chair brand alone.

Product details

• Brand: Pride
• Model / manufacturer part number: CTL150060
• Control type: wired lift chair handset

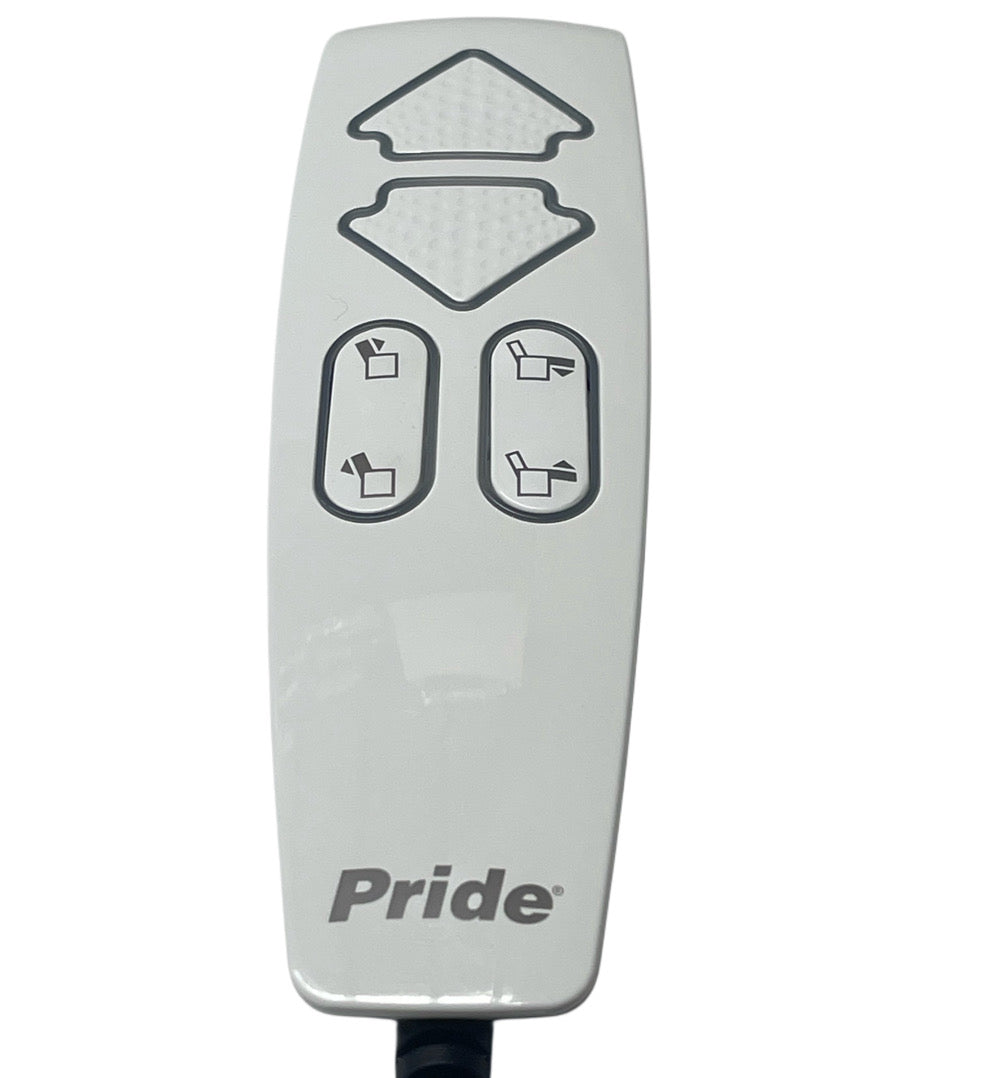

• Controls: six buttons, as described in the listing

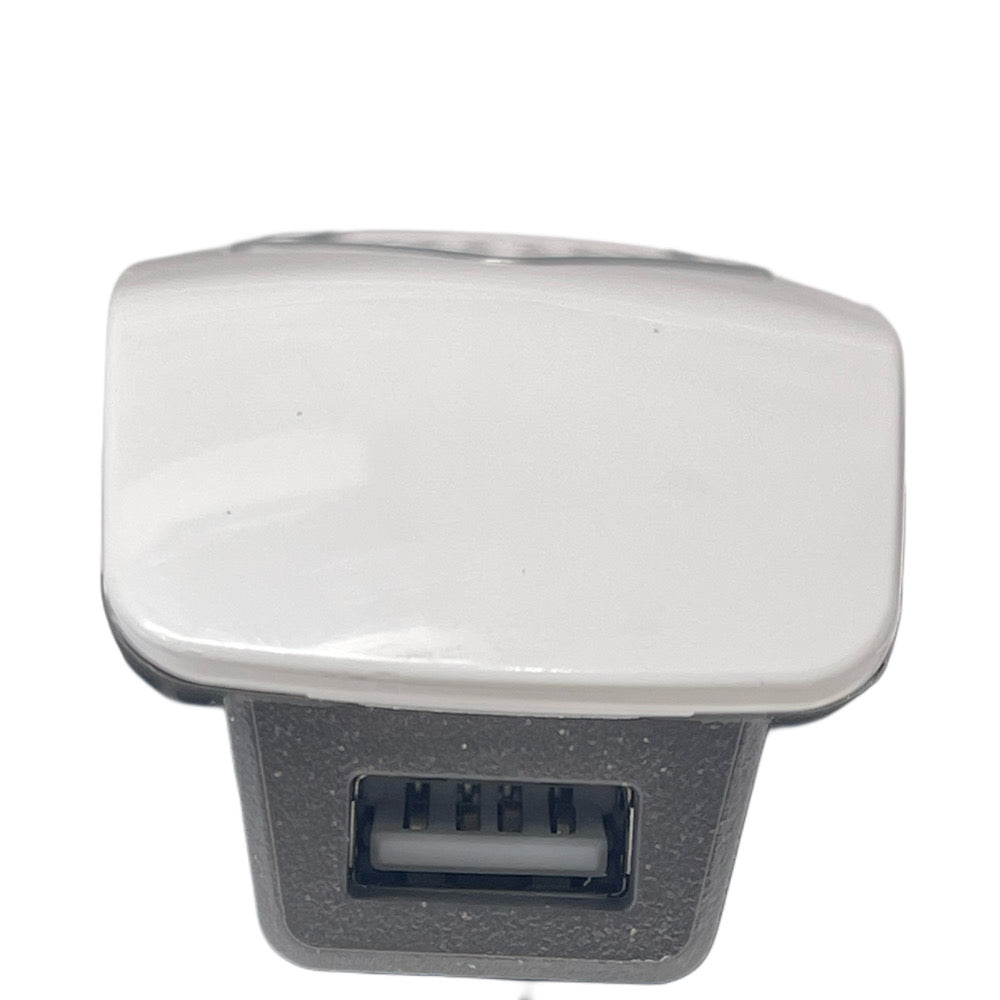

• USB port: included; output rating is not confirmed

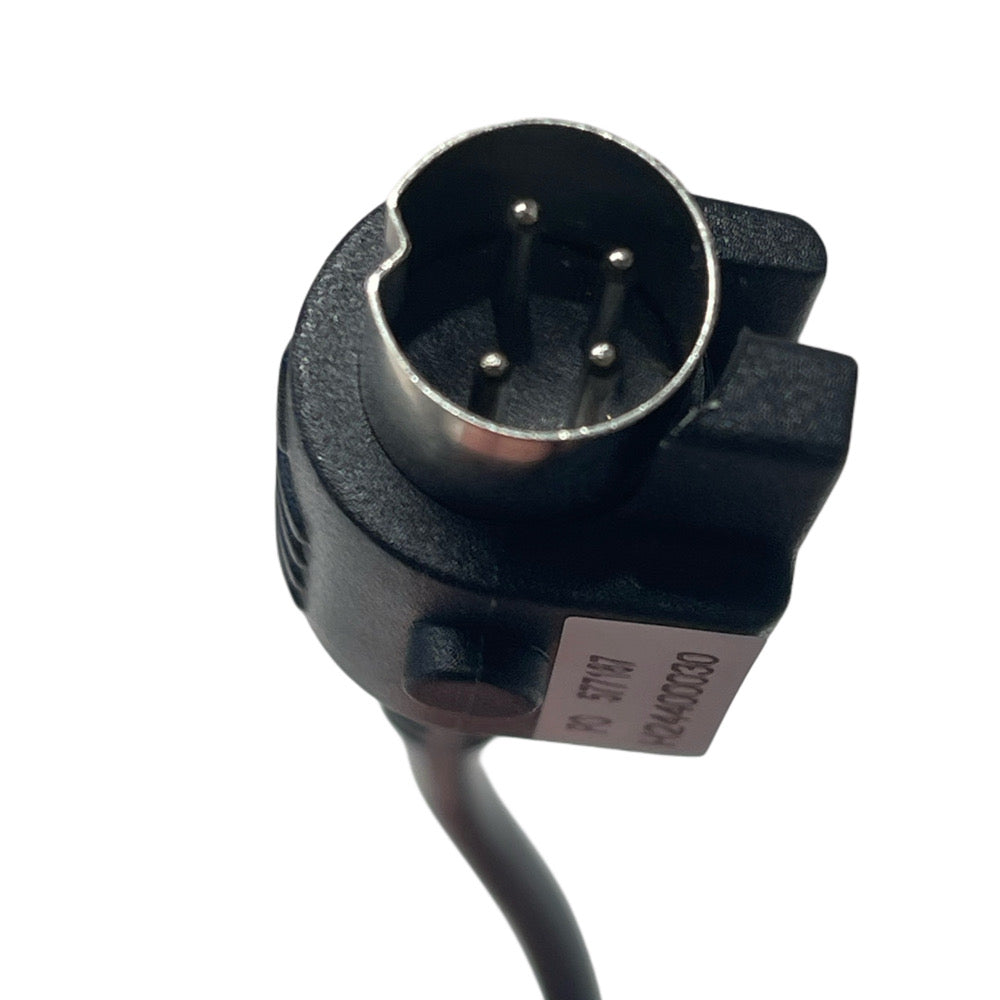

• Connection: listing-described straight four-pin plug

Individual button functions and electrical ratings are not specified here. Compare your original control and chair documentation. The model number and pin count alone do not establish compatibility with a different chair system.

Check compatibility before ordering

• Match CTL150060 against the original handset label or chair documentation.
• Compare all six buttons and their functions with the original layout.
• Match the straight four-pin connector shape, keying, pin arrangement and cable route.
• Confirm that the chair's control system accepts this exact handset. A plug that looks similar may have different wiring.

This is not a universal Pride handset. No interchangeability with the separate ELEASMB7120017 two-button, round five-pin handset is confirmed. If your reference differs or is unreadable, send clear photos of the original handset front, label, plug and chair details to CouchGuard, or call 1300 268 244 before ordering.

Replacing a matching handset

1. Unplug the chair from mains power and ensure it is stable and safe to access.
2. Photograph the original handset, connector and cable routing before disconnecting anything.
3. Follow the chair manufacturer's instructions to remove the original handset. Handle the plug body, not the wires.
4. Connect only a confirmed matching handset. Do not force a plug or modify the wiring.
5. Route the cable clear of moving parts and pinch points. Restore power and test each function from a safe position.

Stop if movement differs from the expected operation. Use a qualified repair technician if access, compatibility or wiring is uncertain.

Check the fault before replacing parts

A chair that does not respond may have a power-supply, wiring, control-box, actuator or handset fault. A replacement remote is not a guaranteed fix. Note which functions work and seek assistance if the cause is unclear.

Frequently asked questions

What is the Pride CTL150060?

It is a genuine Pride wired replacement lift chair handset, listed with six buttons and a USB port, for a matching CTL150060 system.

How many buttons does it have?

The listing specifies six buttons. Compare the complete layout and each button's function with your original handset; do not assume the same functions from button count alone.

What connector does it use?

The listing describes a straight four-pin plug. Match its shape, keying, pin arrangement and system wiring before ordering.

Will it fit every Pride lift chair?

No. Match CTL150060 and confirm the original chair's controls and connections. Pride chairs can use different handset systems.

Does it include USB?

Yes, a USB port is listed. Its output rating is not confirmed, so check the handset or chair documentation before connecting a device.

Can it replace ELEASMB7120017?

No interchangeability is confirmed. ELEASMB7120017 is a separate two-button handset listed with a round five-pin connection.

Will replacing the handset fix a chair that has stopped working?

Not necessarily. The power supply, cables, control box or actuator may be responsible. Identify the fault before purchasing replacement parts.

What information helps confirm fit?

Send clear photos of the handset front, readable model label and plug, plus the chair model or paperwork if available. CouchGuard can help compare the details before ordering.
