Buy Universal Recliner Extension Lead – 2-Pin O/I

Universal 2-Pin O/I Recliner and Lift Chair Extension Lead

This genuine Okin universal recliner extension lead carries power between the power supply and actuator motor, or the matching power connection at the back of the chair. It has the standard O/I two-pin connection with one round pin and one flat blade, used on electric recliners and lift chairs.

Lengths and connectors

• Available lengths: 300mm, 1.2m, 2.5m and 3.5m.
• Connection: O/I two-pin plug and socket, with one round pin and one flat blade.
• Application: extends the connection between the recliner power supply and actuator or chair power inlet.

Which recliners does it fit?

This universal connector fits 99.9% of recliners on the market and is suitable for electric recliner chairs and electric lift chairs. It is compatible with Okin, Kaidi, Limoss, Dewert and eMoMo actuator systems using this connection.

Compare the connector ends with your existing lead before ordering and choose a length that allows the chair to move without pulling or trapping the cable. For installations where the lead plugs into the back of the chair, the plastic retaining clip may need to be removed.

Checking and replacing your lead

A loose or damaged lead can interrupt power even when the power supply is working. Disconnect the power supply from the wall before inspecting or changing connections. Check for cuts, kinks, damaged connectors or loose plugs. Do not use damaged cables.

If the power supply and actuator have matching connections, a direct connection can help isolate a fault in the extension-lead path. Switch off and unplug before changing connections, keep clear of moving mechanisms and do not force mismatched plugs. If unsure, contact CouchGuard with photos of the connectors and power supply.

Recliner extension lead FAQs

What is a recliner extension lead?

It is the cable between the recliner power supply and actuator motor or chair power inlet. This lead extends that connection using a two-pin O/I plug and socket.

Which lengths can I choose?

The available variants are 300mm, 1.2m, 2.5m and 3.5m. Select the length needed for your setup without leaving the lead stretched or trapped during chair movement.

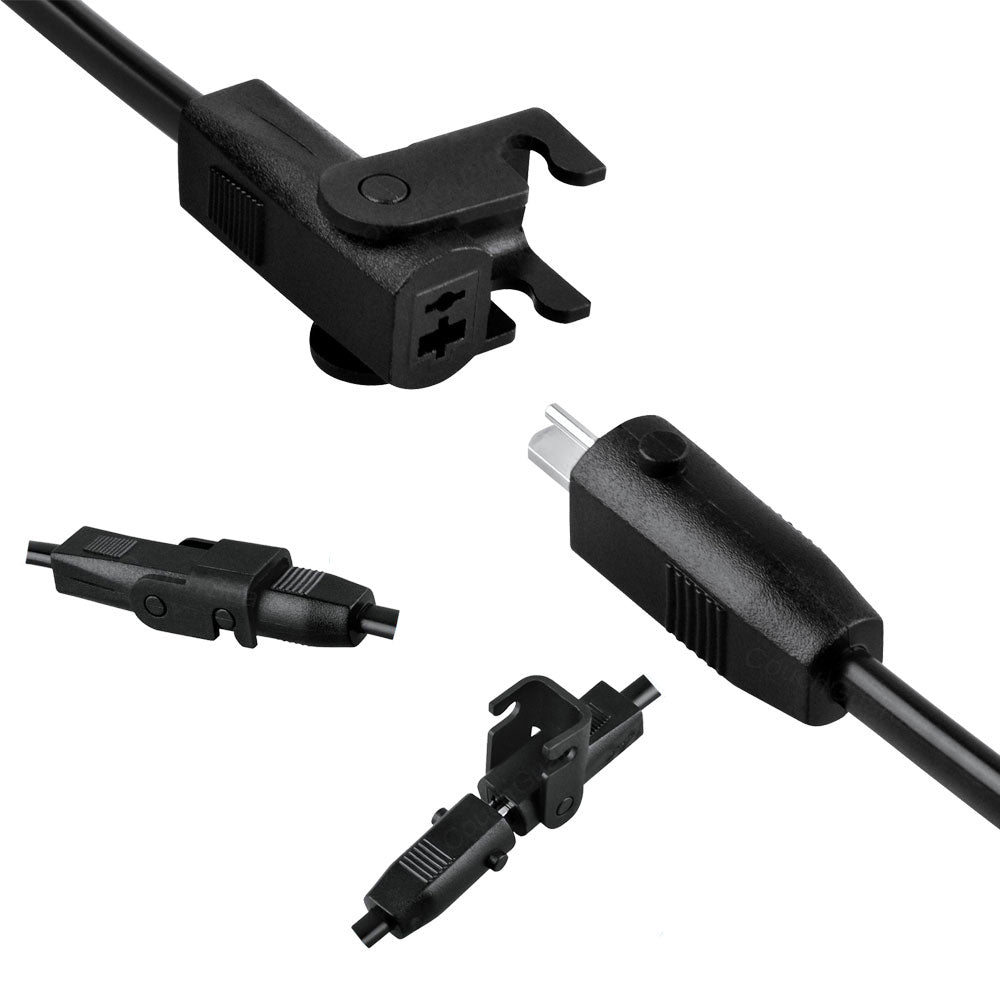

What does the O/I connector look like?

It has two contacts: one round pin and one flat blade. Match both ends to the existing lead rather than relying on the chair brand alone.

Can I use this cable with an electric lift chair?

Yes. It suits electric lift chairs and electric recliners using the matching standard two-pin round-pin/flat-blade connection.

Could a faulty lead stop my recliner working?

Yes. A damaged cable or loose connection can interrupt power. Inspect with the mains supply disconnected. A successful direct connection between a compatible power supply and actuator points to a problem in the extension-lead path, including its connections.

Is the extension lead plug-and-play?

Yes, for a matching installation. Disconnect the mains power, unplug the old lead and connect the replacement securely. No wiring modifications are required.
