Description
Description
Universal Recliner Parachute Pull Cable — D-Style Options

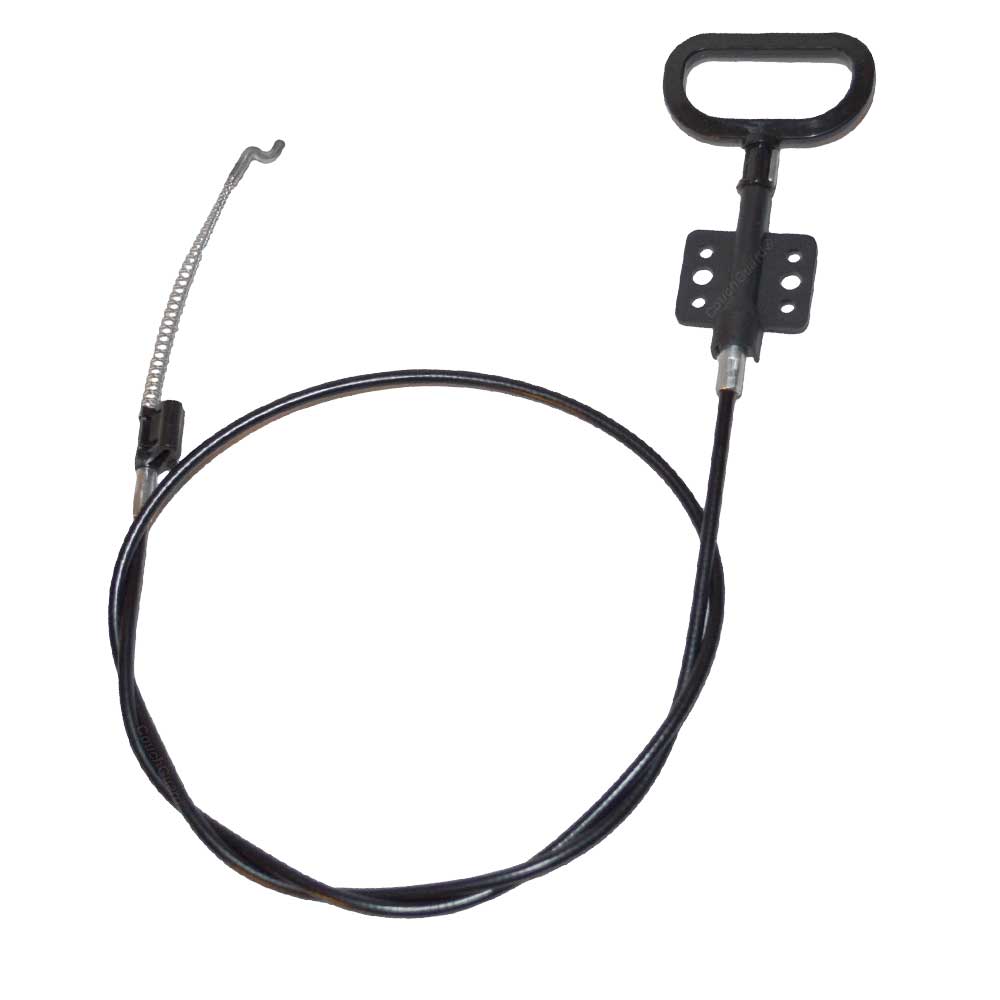

Replace a damaged manual-recliner release cable with this universal parachute or D-style pull handle and cable assembly. Choose the standard or long-neck option with the exposed cable length that matches the original part.
Available options
- Standard cable: 79 mm exposed length
- Standard cable: 123 mm exposed length
- Long-neck cable: 120 mm exposed length
- Long-neck cable: 125 mm exposed length
Key details
- Style: parachute / D-style recliner pull cable
- Includes: pull handle and cable assembly
- Application: compatible manual recliner release mechanisms
- Standard 79 mm and 123 mm options have a 1050 mm overall cable length
Measure before ordering

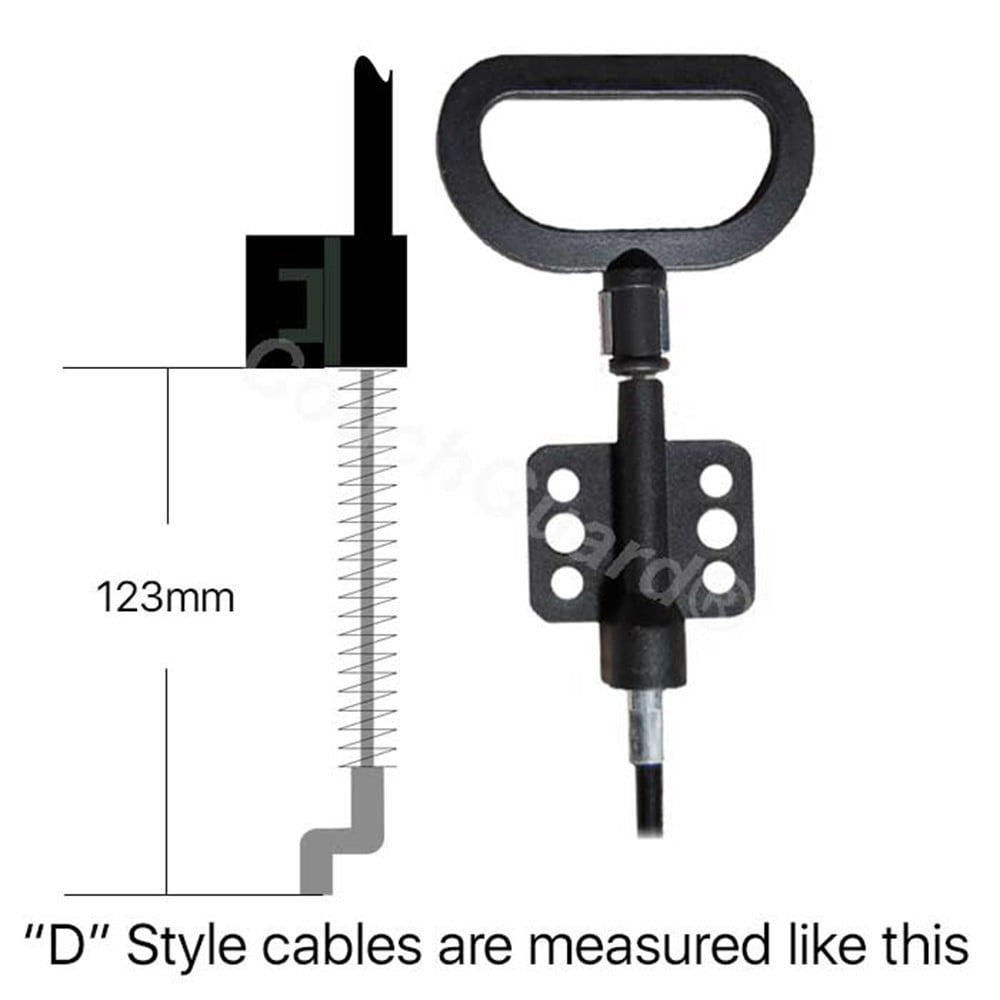

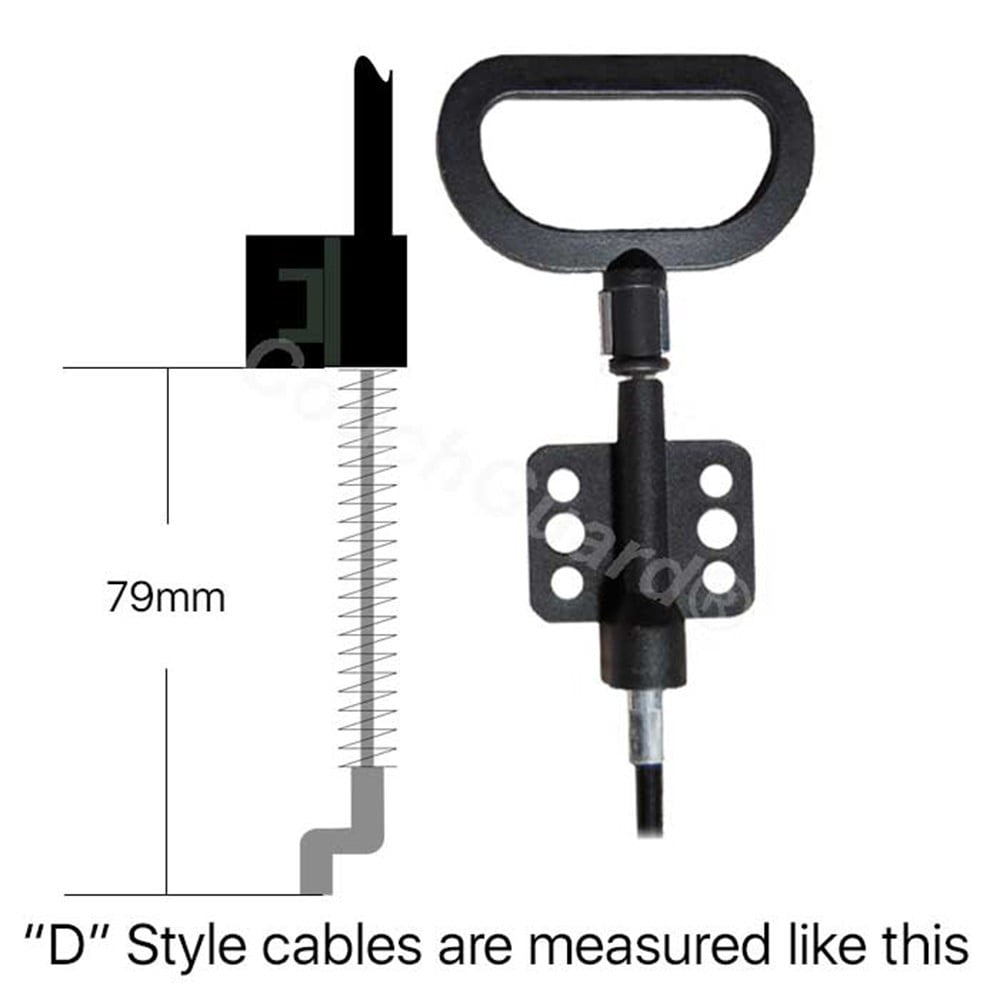

Measure the exposed inner cable from the black plastic sheath clip to the end of the S-shaped hook. Also compare the handle neck, mounting block, sheath length, clip and S-hook with the original assembly. Use the How To Measure tab for the visual guide.
A small measurement difference can be acceptable where the mechanism has adjustment, but select the closest listed option and confirm the complete physical layout before ordering.
Compatibility
This is a universal replacement for manual recliners using a matching parachute or D-style handle and cable arrangement. Chair brand alone does not confirm fit, including La-Z-Boy models. Match the exposed length and all connection points.
Frequently asked questions
What is a recliner parachute pull cable?
It is a D-shaped pull handle connected to a cable that releases a compatible manual recliner mechanism.
Does the handle come with the cable?
Yes. Each option includes the pull handle and cable as one assembly.
How do I choose between 79 mm and 123 mm?
Measure the exposed inner cable from the sheath clip to the end of the S-hook and choose the closest matching standard option.
What is the difference between standard and long-neck options?
The long-neck versions use a different handle-neck and mounting-block configuration. Compare the complete original handle shape as well as the exposed cable length.
Will this fit every manual recliner?
No. Universal fit requires a matching D-style handle, exposed cable length, sheath, clip, hook and mounting arrangement.
Does a recliner that will not open always need a new cable?
No. A broken or frayed cable is one possible cause, but the handle, release mechanism or other linkage can also be faulty. Inspect the assembly before ordering.
What should I send CouchGuard for help?
Send clear photos of the handle, mounting block, sheath clip, S-hook and exposed-length measurement.
Need Assistance?
Need Assistance?
Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
How To Measure Recliner Cable | Couchguard Aus.
How To Measure Recliner Cable
You can print off a pdf where all you have to do is fill in the blank spots with your measurements, A, B and C
Open Full Size Cable Cheat Sheet Here
All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean anything.
- Measure the complete length of the cable C from barrel to the very end of the “S”.,
- Now measure the black plastic sheath B including the clips on both ends.
- Measure the barrel diameter A. This is across the round face not the length and should be 6mm.
- IF your cable is longer then 830mm or 965mm look at the 1100mm cable options. Choose “Cable Only” from the menu above
Remember to remove the cable from the handle before measuring. Cable Only is the whole cable assemble including the black plastic sheath, barrel, “S” end and clips.
The 830mm cable has a 6mm barrel – black plastic sheath 733mm and exposed cable length 97mm – Choose “830mm Cable – 97mm Exposed” from the drop down menu above
The 965mm cable has a 6mm barrel – black plastic sheath 826mm and exposed cable length 139mm – Choose “965mm Cable – 139mm Expoosed” from the drop down menu above
There are many different exposed cable lengths for this handle. The 110mm and 150mm exposed cables have an adjustable end on the cable meaning the exposed cable end can be adjusted back by 7mm maximum. For example the 150mm exposed cable can also be 143mm exposed.
1100mm Cable exposed 100mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 100MM from the drop down menu above
1100mm Cable exposed 139mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 139MM from the drop down menu above.
- Measure the outer face of the handle, left to right.
- Measure the outer face of the handle, top to bottom.
- This recliner handle measures 113mm x 70mm and takes the 6mm barrel. There can be a couple mm tolerances and our trigger will still fit! Choose “Handle Only” from the drop down menu above Choose “Complete” and your cable length from the drop down menu above
Please choose / measure carefully as returns / reorders will incur a handling fee of $10.00
