Couch Guard Aus | SKU: CGEPS-240-AU-AUDIO

Recliner Power Supply - Audio Plug

$48⁰⁰

Select Your Option

Product variants

Couchguard universal electric recliner power supply which has industry standards output of DC 29v – 1.8 amp, 52.2 w and is compatible replacement with 99.9% of audio plug connections We also stock a 9v battery back option compatible with the Okin SP2-B1 Power Supply and ALL our electrical items are “C” Tick Approved – Meets Australian Standards and come with 12 month warranty. Images Shown May Vary Slightly From Actual Part Supplied Buy Premium Parts From CouchGuard®

Description

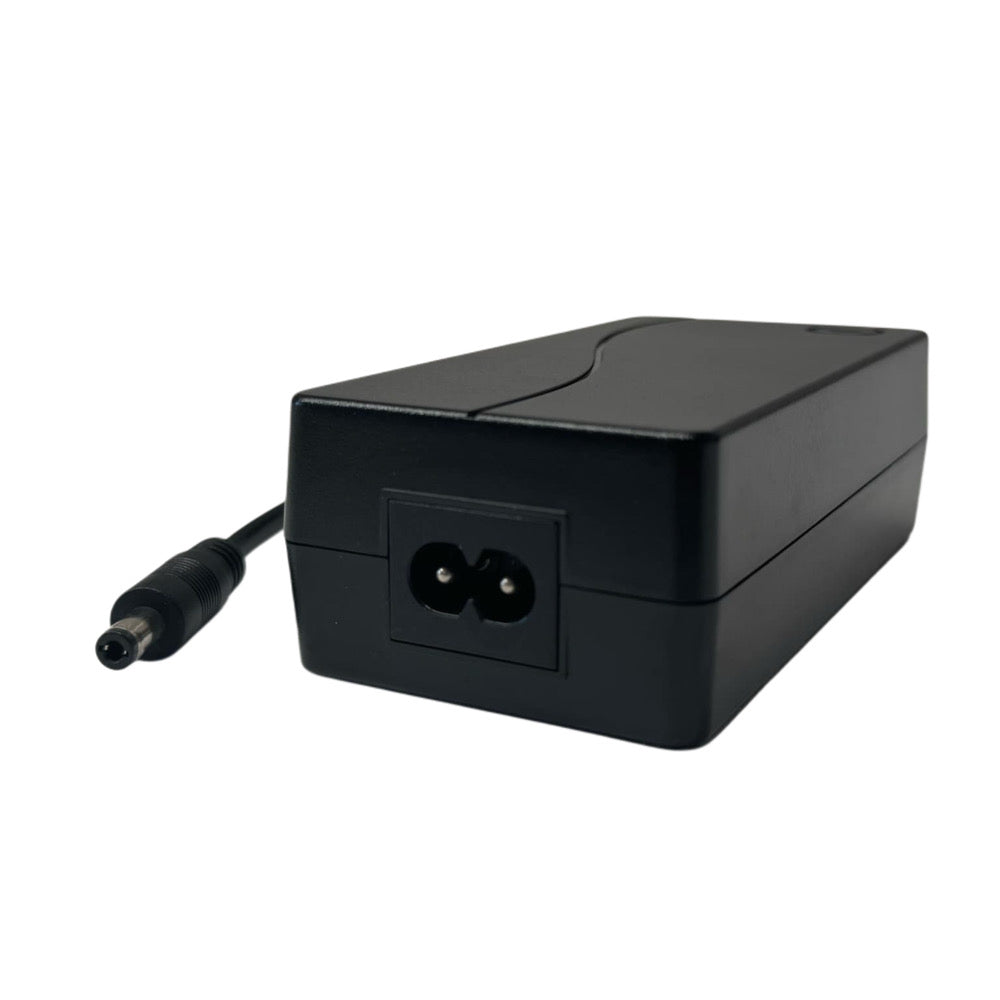

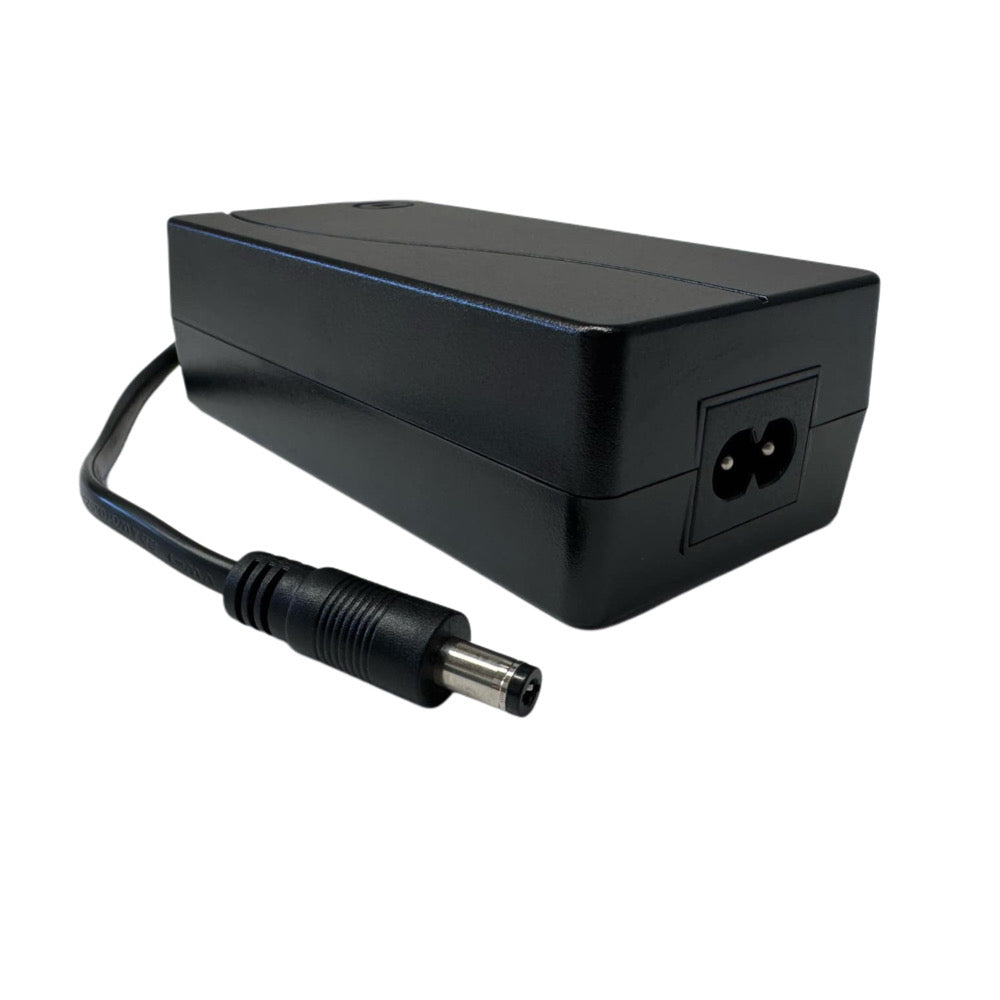

Electric Recliner Power Supply - Audio Plug

This replacement universal power supply for reclining chair, has the audio round pin plug. It takes the figure 8 power cord as standard. Because figure 8 leads area universal fitment, this power supply can be used worldwide. These plug ends are the industry standard and fit 99.9% of the recliners on the market.

Input / Output

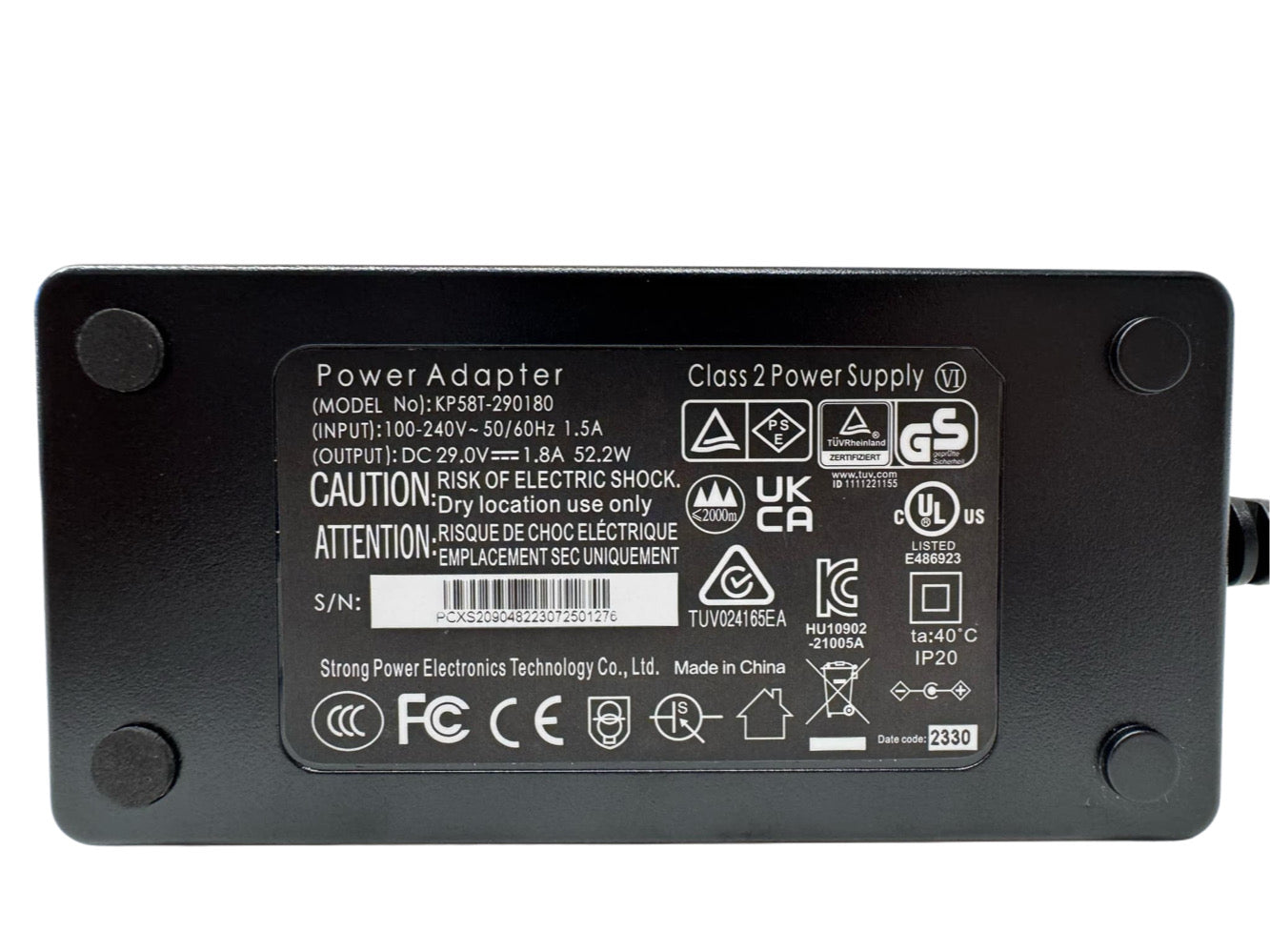

Power Supply Specifications

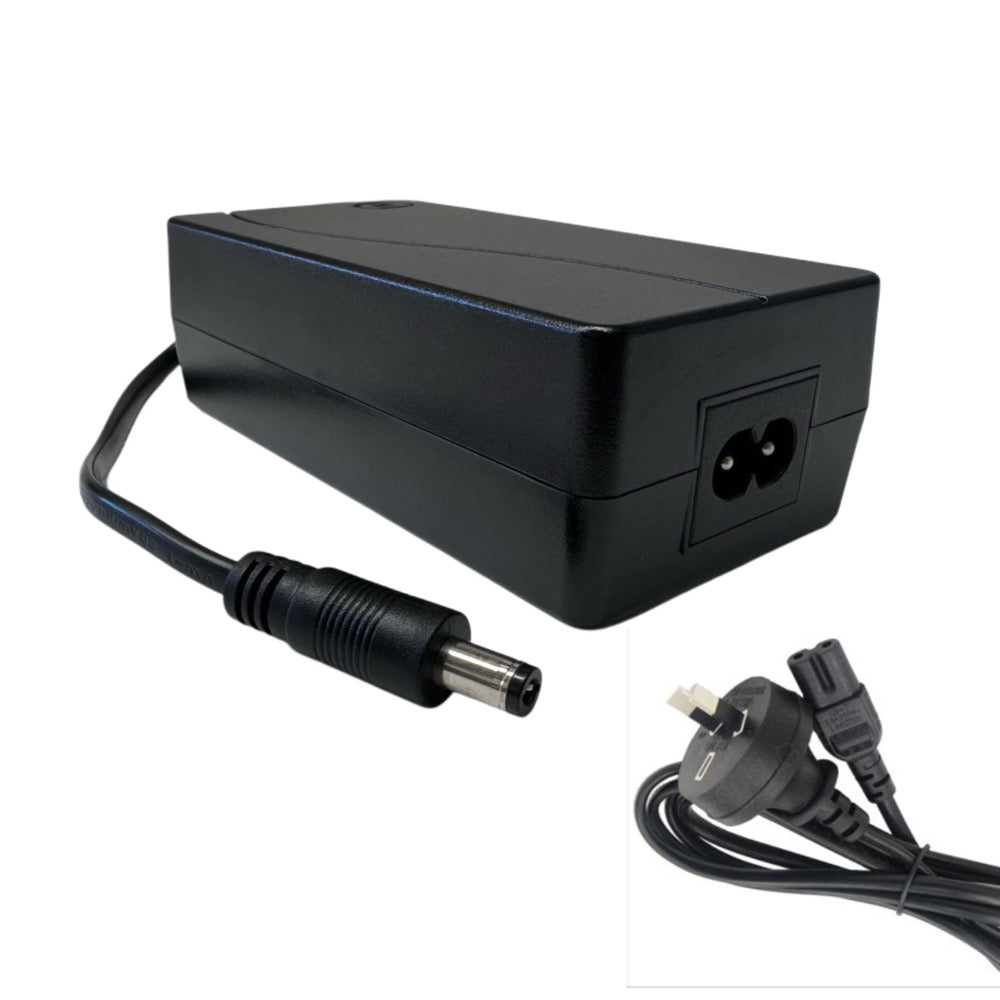

Input: 100 – 240V, 50/60Hz, 1.5amp (Australian figure 8 mains power cord)
Output: DC 29V = 2.0amp

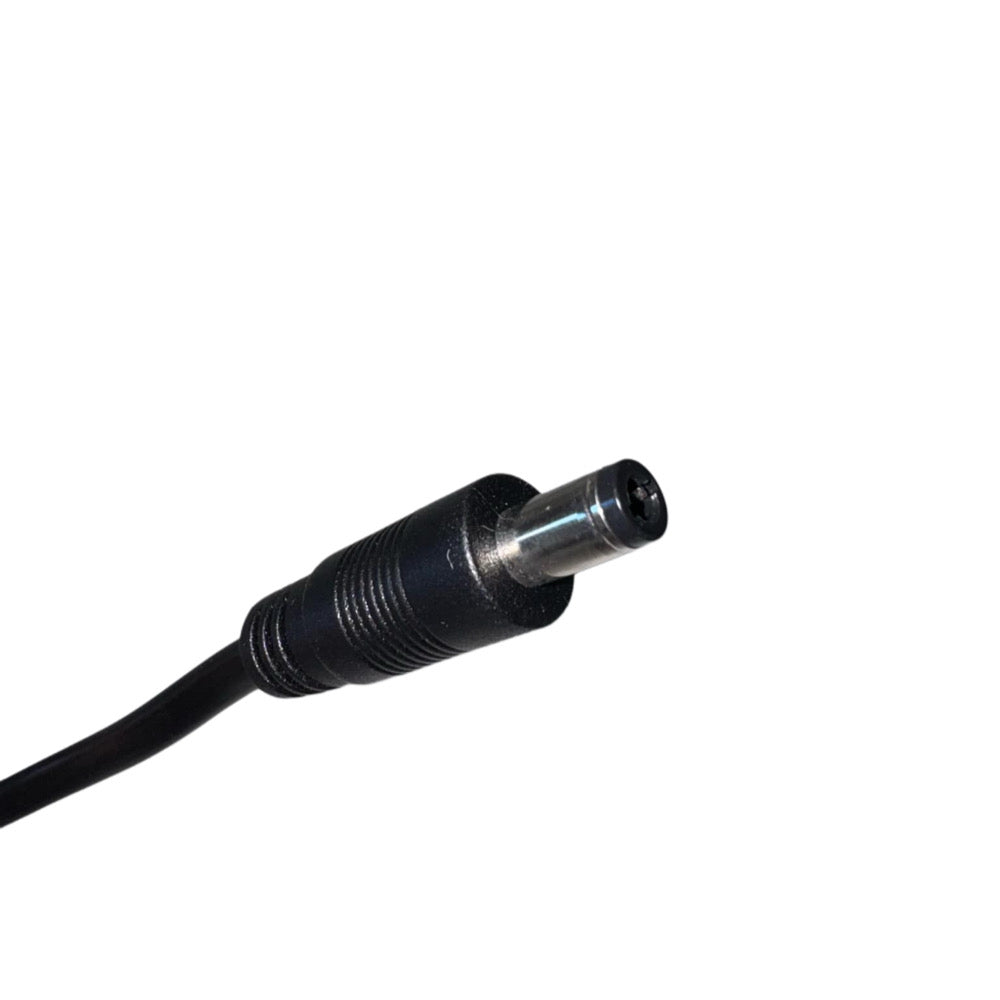

Plug: STD 01 female ( O l Plug)
Duty cycle: Max 10%; Max Time on: 2 min

This is the industry standard power supply for power recliner chairs including lift chairs.

FAQ

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Additional Information

Price Match

Seen the same, Genuine Okin, TiMOTION or Kaidi part cheaper? Click here to Email Us.

Part must from an Australian supplier, in stock and included delivery. Please include the url of the cheaper part in your email.

Before You Buy An Actuator

Check The Power Supply Green Light Is ON
Check the leads for damage
Check the switch isn’t faulty
Check the actuator in another recliner

All these checks can be done on another recliner and may save you hundreds of dollars doing so.

Actuator Warranties

We offer the following warranties:

36 Months Warranty on all our compatible actuators.
24 Months Warranty on all genuine Okin & TiMOTION actuators.
12 Months Warranty on all genuine Kaidi, eMoMo & Mulin actuators.

All of the actuators supplied are rigorously tested by the manufacture prior to leaving their facility. If a defect becomes apparent within 6 (six) months after taking delivery of the actuator, it will be refutably assumed that the defect already existed in the actuator, unless such an assumption with the nature of either the object of the delivery or the defect.

T&C’s apply
