Kaidi Power Supply- KDDY008B

Kaidi Power Supply- KDDY008B: Efficient and Reliable Energy Solution

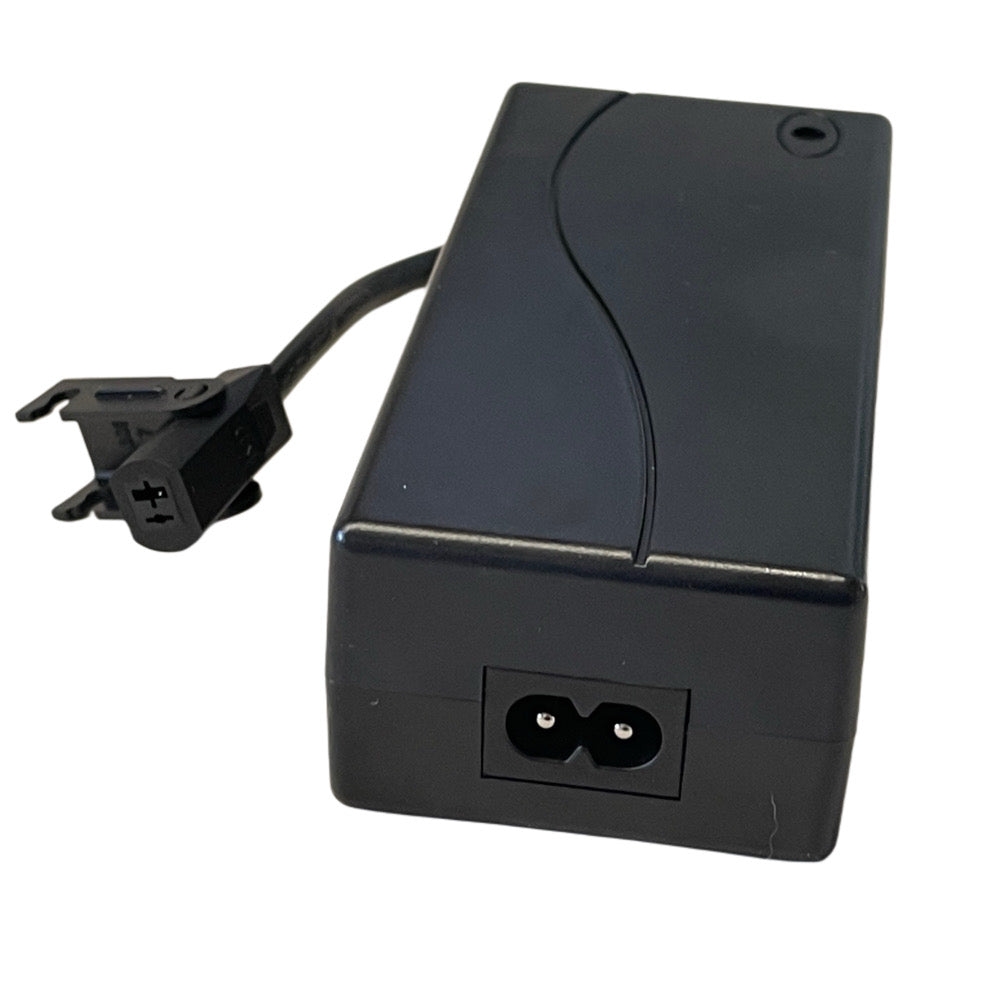

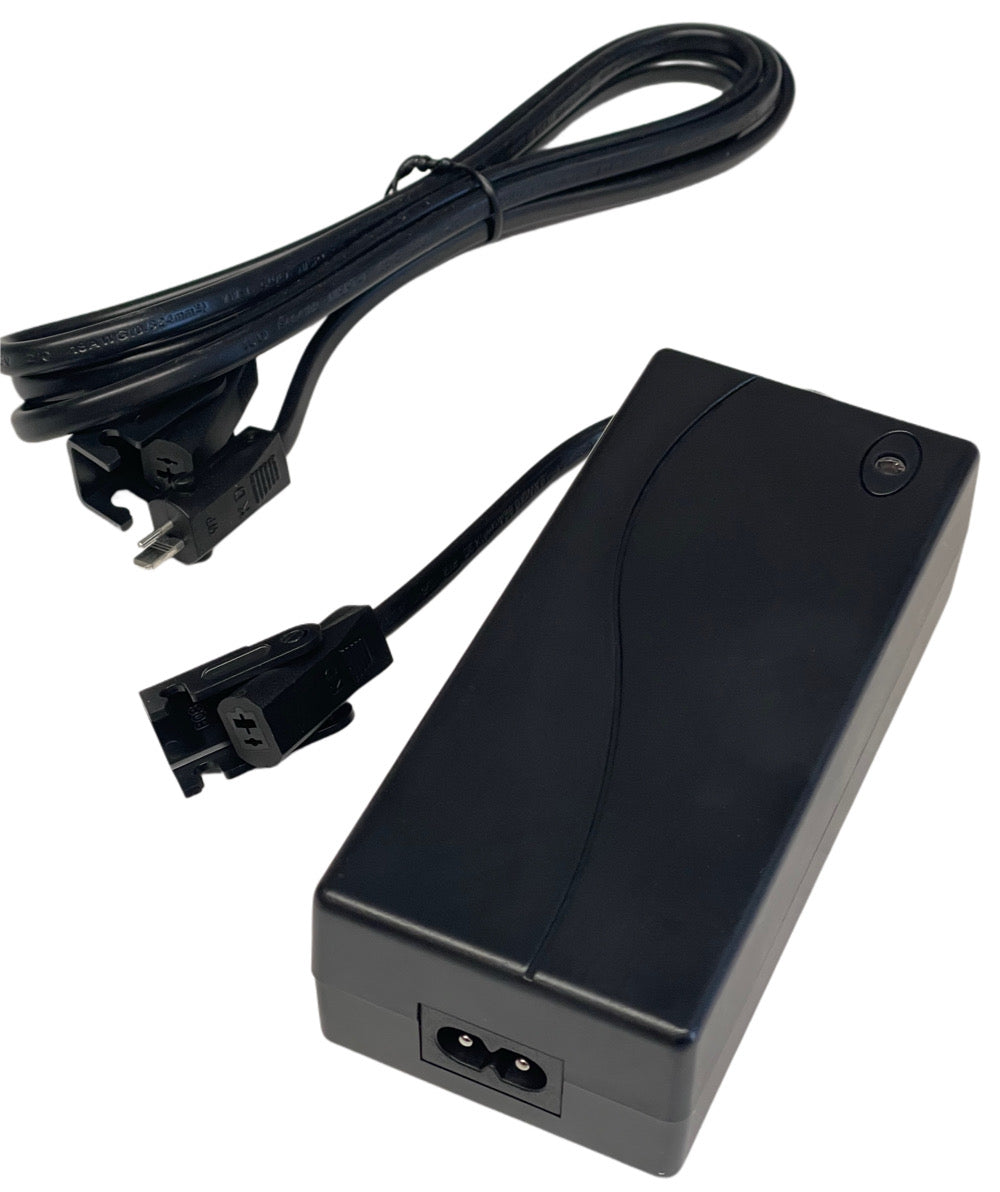

This Kaidi Recliner Power Supply - KDDY-008B replacement power supply for reclining chairs is generally found in Nick Scali & Plush range of couches. It has the "O l" (oh one) flat blade / round pin plug. It takes the

as standard. Because figure 8 leads area universal fitment, this power supply can be used worldwide. These plug ends are the industry standard and fit 99.9% of the recliners on the market.

Buy Genuine Kaidi Replacement Parts from CouchGuard Today with Fast Shipping !

Advanced Performance and Stability

The Kaidi Power Supply- KDDY008B is engineered to provide consistent and reliable power output, which makes it ideal for a wide range of industrial and residential applications. This power supply features advanced circuitry that minimizes voltage fluctuations, ensuring stability and maximizing the lifespan of your connected recliner of lift chairs. Its robust design guarantees efficient energy conversion, offering dependable performance even under demanding conditions.

Built-in Safety and Protection Features

Safety is a critical aspect of the Kaidi Power Supply- KDDY008B. It comes equipped with multiple protective mechanisms such as overvoltage, overcurrent, short circuit, and overheating protections. These features help safeguard both the power supply and connected equipment from potential electrical damages. The high-quality materials and casing also enhance durability, making it a safe and secure choice for various environments.

Recliner Output DC 29V - 3amp

Power Supply Specifications 29V - 3.0amp

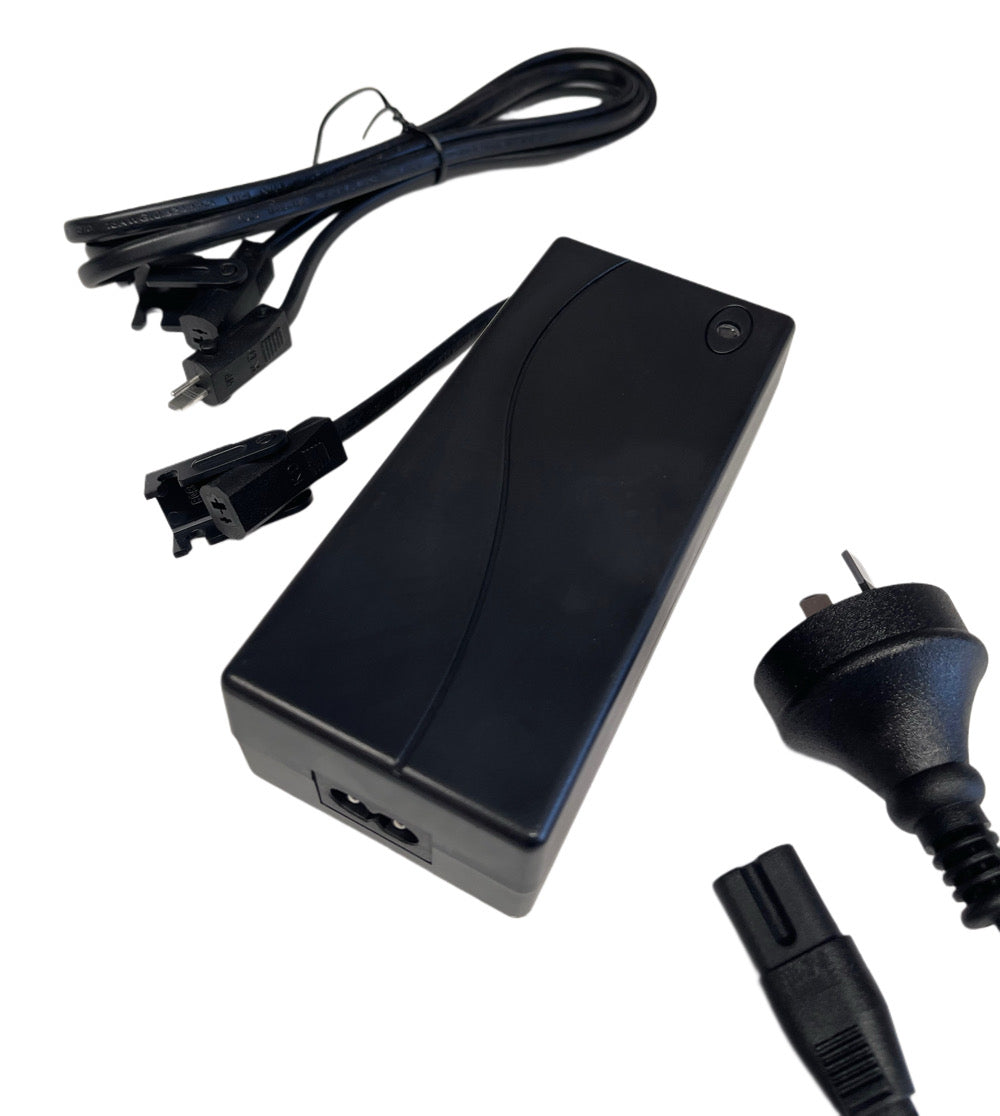

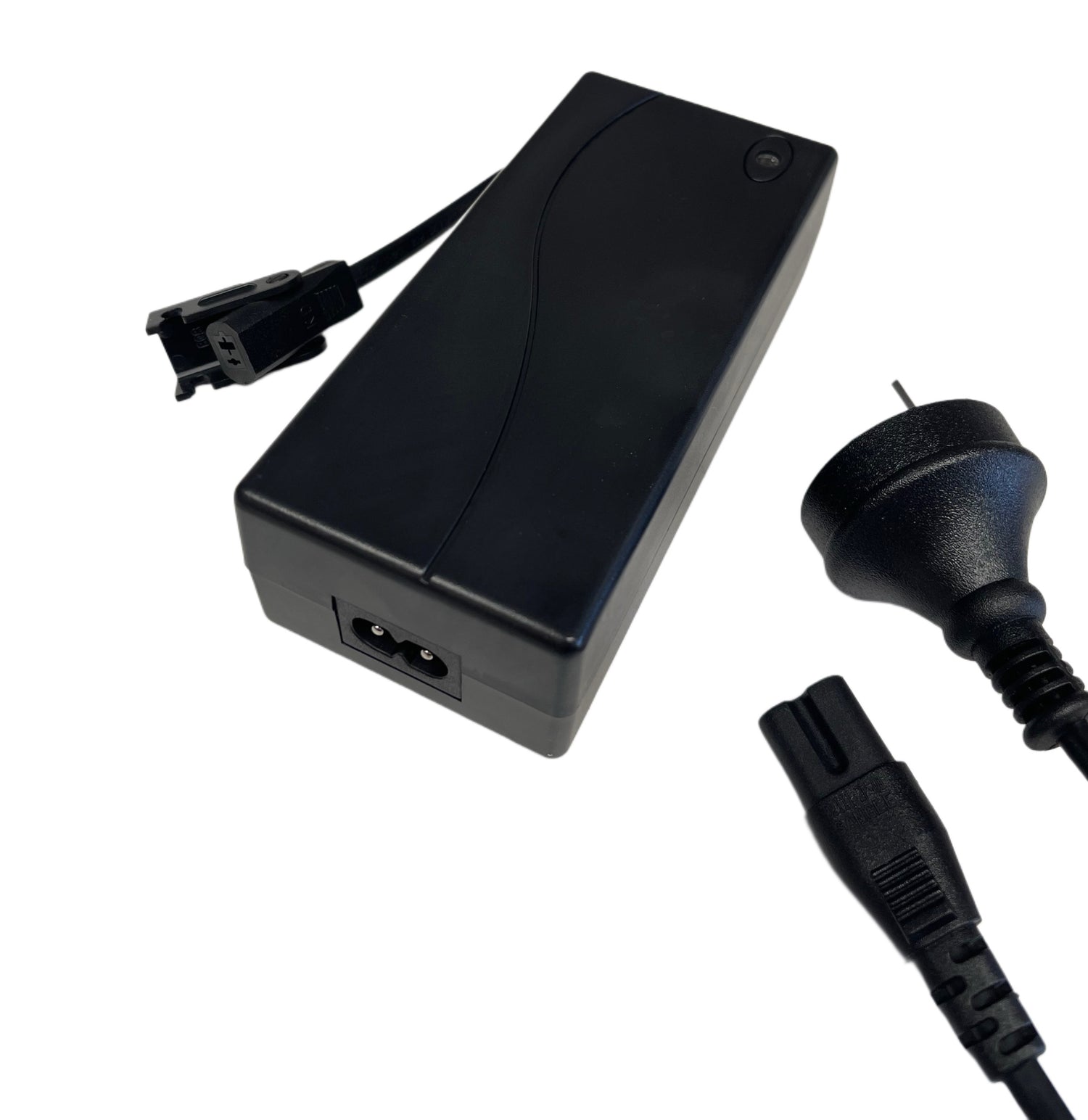

• Input: 100 – 240V, 50/60Hz, 1.8amp (Australian figure 8 mains power cord)

• Output: DC 29V = 3.0amp

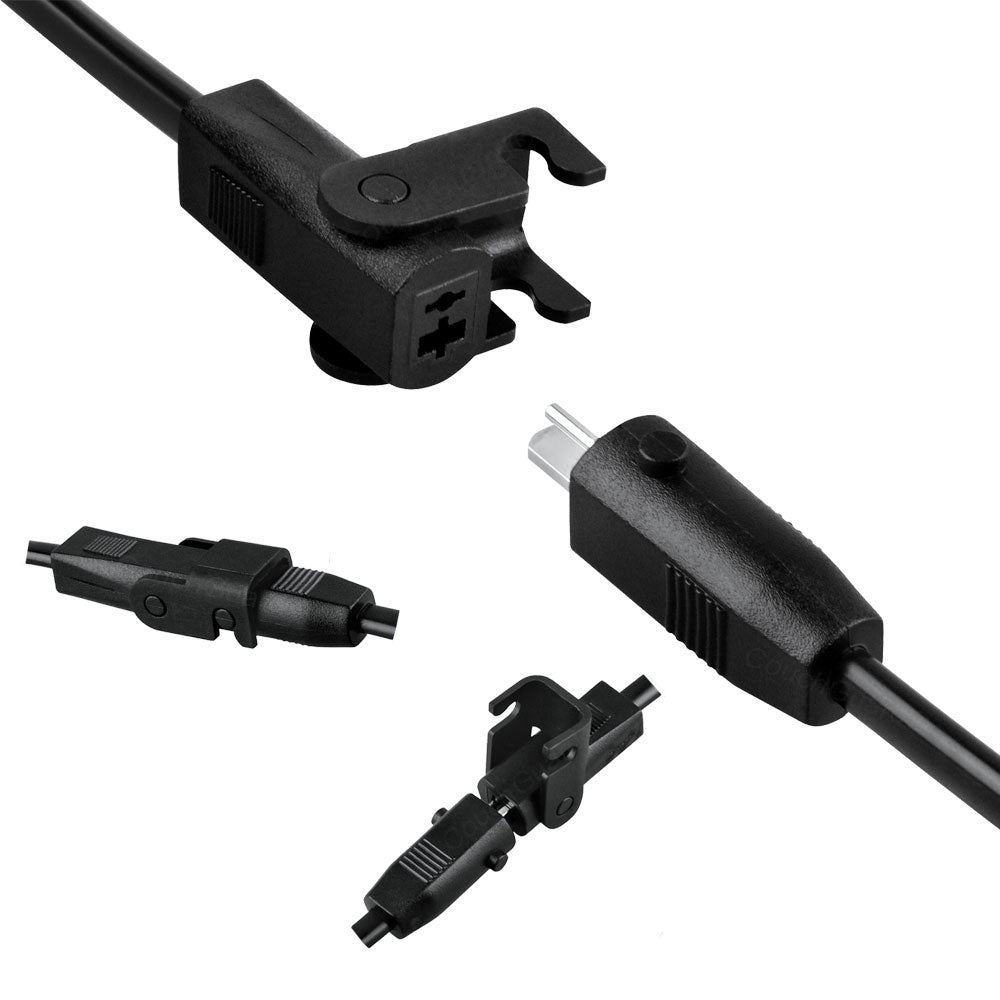

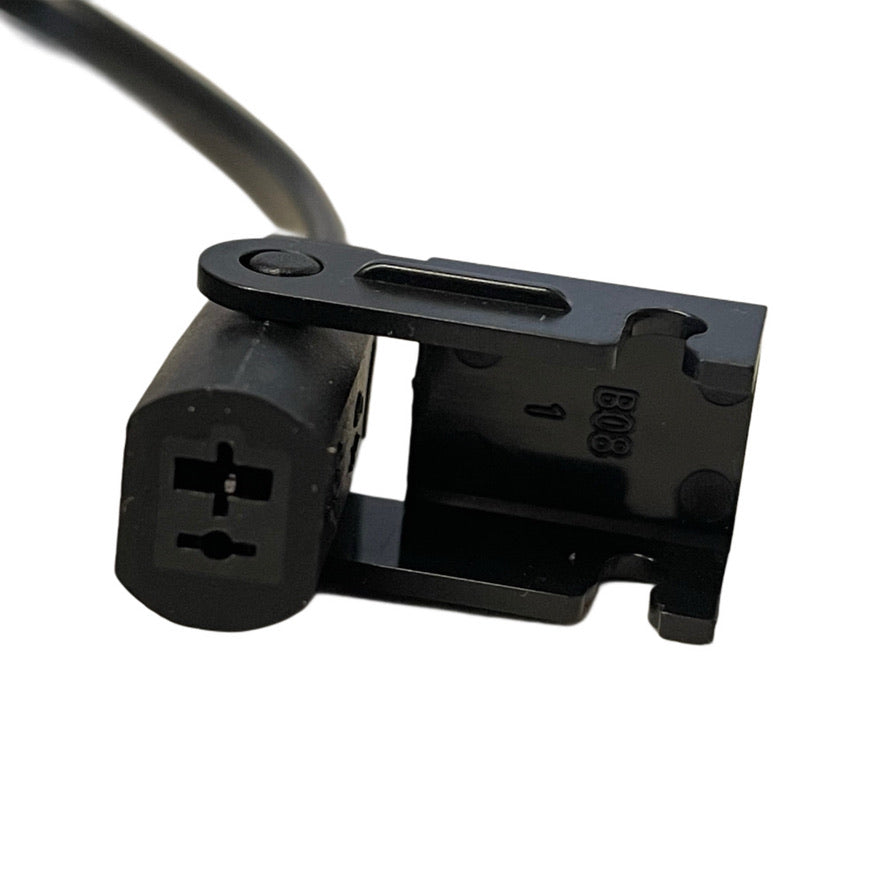

• Plug: STD 01 female ( O l Plug)

• Duty cycle: Max 10%; Max Time on: 2 min

This is the industry standard power supply for power recliner chairs including lift chairs.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
