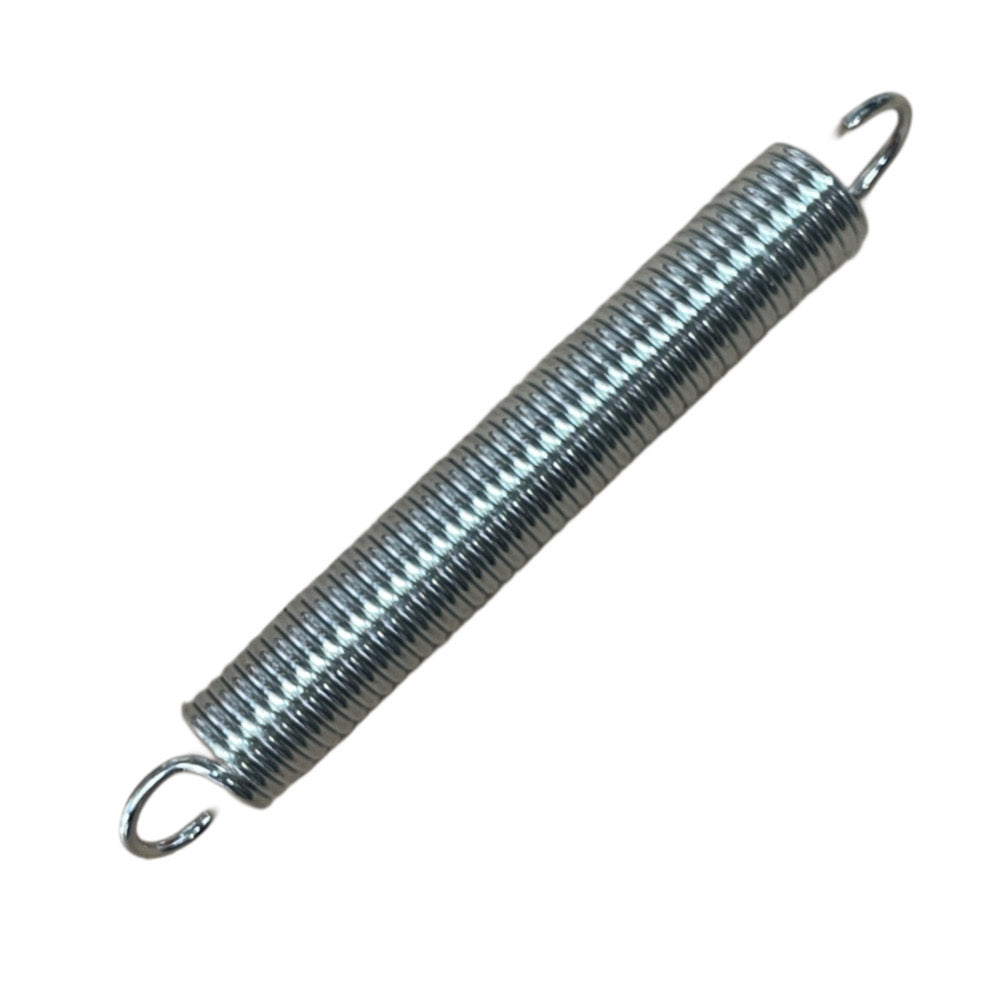

120mm recliner spring

This genuine Leggett & Platt 120mm recliner spring is identified by its red internal foam and replaces a matching spring in a recliner mechanism. Choose it by comparing your original spring and its mounting arrangement, not by chair brand, foam colour or listed length alone.

120mm recliner spring specifications

• Brand: Leggett & Platt
• Listed size: 120mm

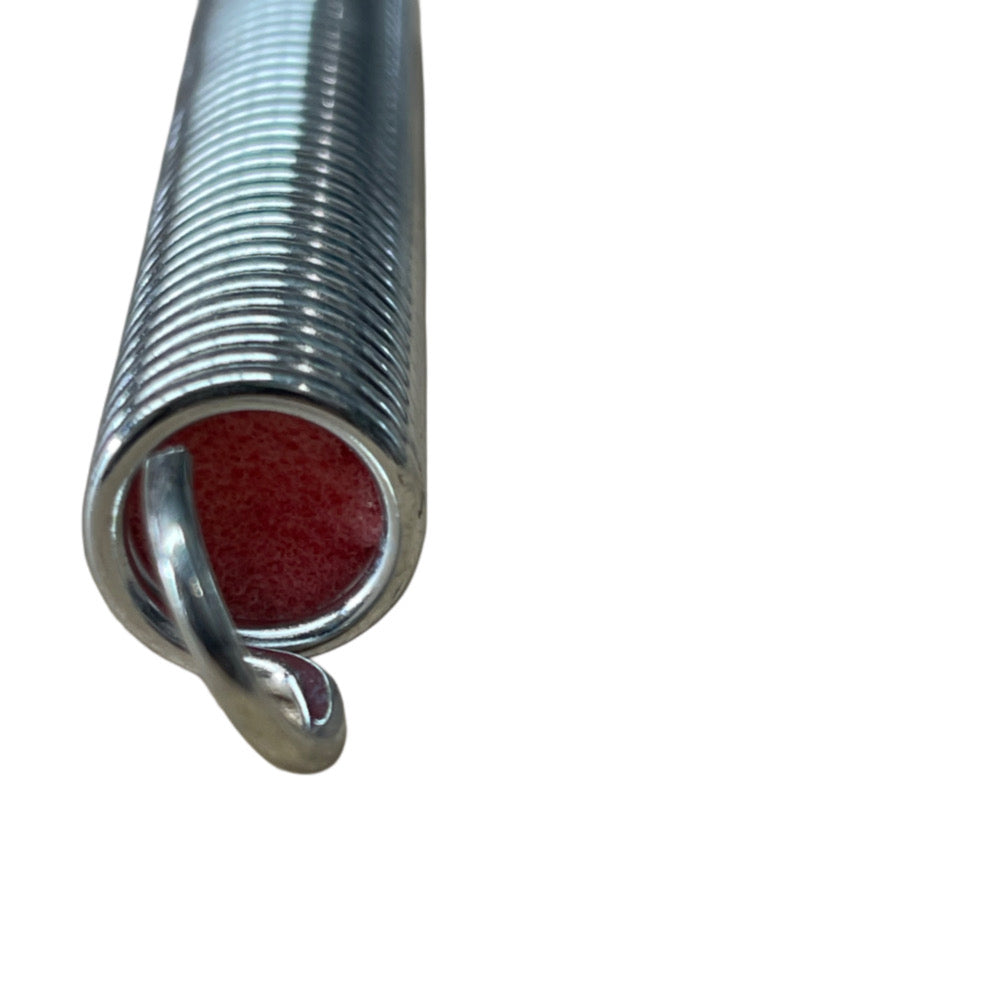

• Identification feature: Red internal foam
• Product type: Recliner Spring
• Application: Matching recliner mechanisms
• Fit checks: Original length, coil diameter, wire thickness, end hooks, hook orientation and attachment points

Choosing the correct replacement

Compare the original spring with the replacement before ordering. Check how the spring sits within the mechanism and how each end attaches. Springs of a similar length can have different hook arrangements, tension and operating functions, so do not assume they are interchangeable.

The 93mm and 117mm lockdown springs, footrest-release springs and backrest-assist springs in our range serve different applications. Do not substitute this 120mm spring for another size or function without confirming the mechanism requirements.

If you are unsure which listed spring matches, send CouchGuard clear photos of your original spring, its measurements and both attachment points within the recliner mechanism. We only stock the spring sizes listed on our website.

Fault checks and safe replacement

A broken or damaged spring can affect recliner operation, but handle, release-cable and mechanism faults can produce similar symptoms. Inspect the original parts before ordering a replacement.

Recliner springs can be under tension. Secure the mechanism, keep clear of moving parts and pinch points, and use suitable tools. Disconnect power before working on an electric chair. Use a furniture repair technician if you are unsure how to remove or install the spring safely.

Frequently asked questions

Is this a genuine Leggett & Platt spring?

Yes. This listing is for a genuine Leggett & Platt recliner spring in the listed 120mm size.

How can I identify this 120mm recliner spring?

It has red internal foam. Use this as an identification feature alongside the original spring dimensions, hook arrangement and attachment points. Foam colour alone does not establish compatibility.

Will this 120mm spring fit every recliner?

No. Match the original spring dimensions, hooks, attachment points and function within the mechanism. Chair brand or listed length alone does not establish compatibility.

What should I compare before ordering?

Compare the original length, coil diameter, wire thickness, hook shape and orientation, and the position of both attachment points.

Is this the same as the 117mm lockdown spring?

No. They have different listed sizes. Do not substitute one for the other without confirming the mechanism requirements and spring function.

Can I stretch a shorter spring to make it fit?

Do not select a replacement on that basis. Use a spring that matches the original specification and mounting arrangement rather than modifying a different size.

Does a recliner that will not open always need a new spring?

No. A handle, release cable or mechanism fault can also prevent movement. Inspect the parts before choosing a replacement.

Do you stock spring sizes that are not listed?

No. Only the spring sizes listed on the CouchGuard website are available.

Can CouchGuard help identify my spring?

Send clear photos of the original spring, its measurements and where both ends attach within the recliner mechanism so we can help compare the listed options.

How To Measure Recliner Chair Springs.

All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean much.

93mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements are – hook = 13mm, coil = 42mm, hook = 38mm TOTAL = 93mm. Wire diameter is 2.1mm.

Choose “93mm – Lockdown” from the drop down menu above, add the quantity required then “Add To Cart”

112mm Spring Measure the total length of the spring including the hooks. The hooks are symmetrical.

Break down of the measurements; hook = 22mm, coil = 68mm, hook = 22mm TOTAL = 112mm. Wire diameter is 2.1mm.

Choose “112mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”

117mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements are – hook = 16mm, coil = 61mm, hook = 40mm TOTAL = 117mm. Wire diameter is 2.1mm.

Choose “117mm – Lockdown” from the drop down menu above, add the quantity required then “Add To Cart”

TIP: To remove and fit a recliner spring, have the recliner footrest in the open position. There is no load on the spring then!

160mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements; hook = 26mm, coil = 89mm, hook = 45mm TOTAL = 160mm. Wire diameter is 2.1mm.

Choose “160mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”

180mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements; hook = 16mm, coil = 104mm, hook = 60mm TOTAL = 180mm. Wire thickness is 2.1mm

Choose “180mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”

Please choose / measure carefully as returns / reorders will incur a return fee or new postage and handling fee of $9.90

How To Install Recliner Springs

Removing & Fitting A Recliner Spring

1. Gently turn the recliner over remember correct lifting methods.
2. Open the recliner footrest.
3. Locate the spring you are replacing. You may want to mark where it come from.
4. Using a pair of pointy noise pliers, remove the recliner spring by un-attaching the hook ends from the recliner action.
5. With the new recliner spring in hand, hook the one hook end in first then using the pliers pull and hook the other end into the the recliner action. You may need to use your figers to help locate it into the hole. Be careful, they can bite!
6. Turn the recliner back over and test the the footrest now stays close in the closed position.
7. Sit in the recliner and open the foot rest using the trigger release and check that it locks closed when returned to the closed position.
