Buy RMT R811A32375198 Recliner Actuator Motor

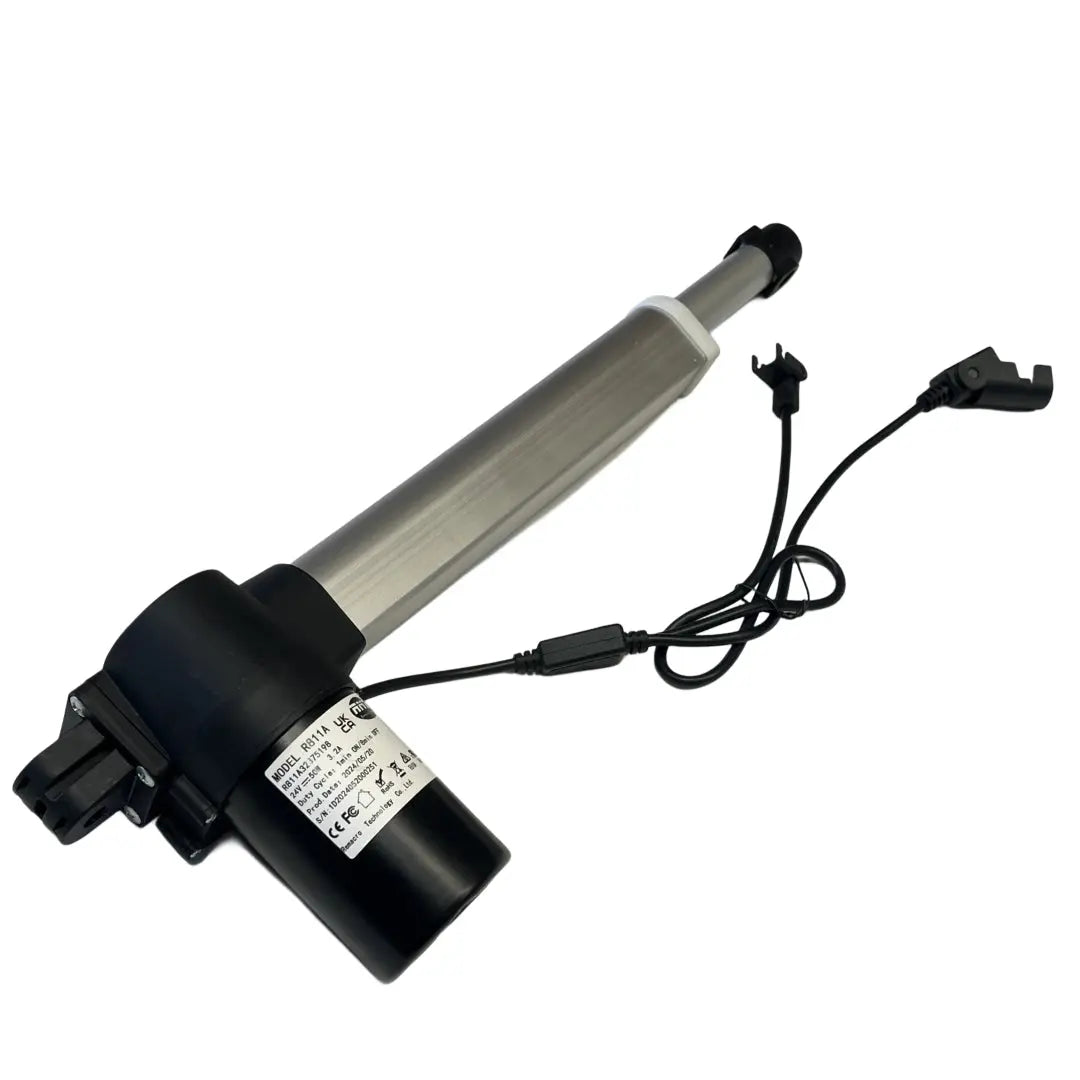

RMT R811A32375198 Recliner Actuator Motor

Replace a matching electric recliner or sofa actuator with this genuine RMT motor, version R811A32375198. The supplied motor label shows the full reference ending in the digit 8, not the letter B. The existing listing describes a 5-pin plug and OI power plug for compatible seating systems; compare the actual plugs with your original unit before ordering.

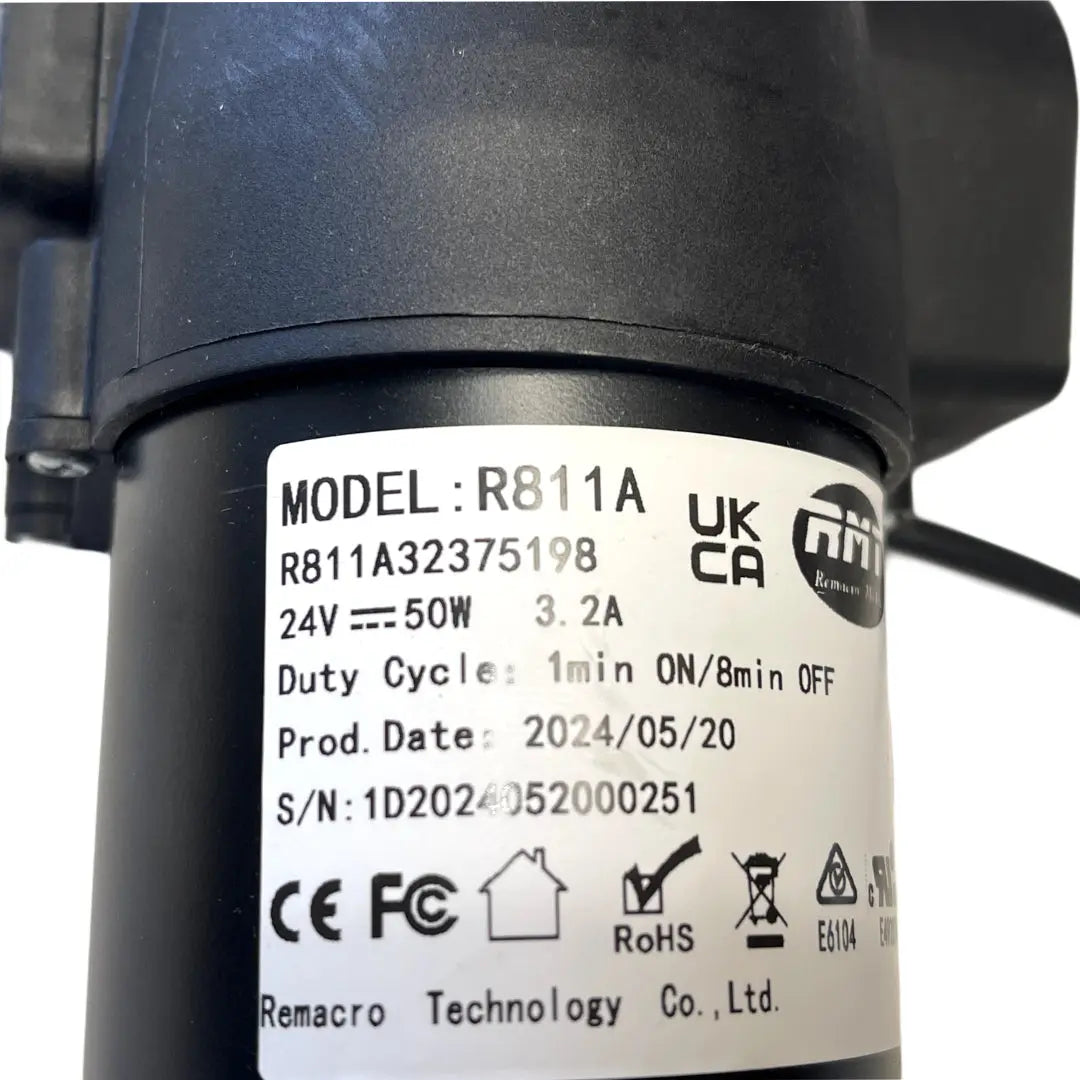

Specifications shown on the supplied label

• Model marking: R811A
• Full printed reference: R811A32375198
• Electrical markings: 24V DC, 50W and 3.2A
• Duty cycle: 1 minute ON / 8 minutes OFF
• Production date shown: 2024/05/20

The label photo does not establish stroke length, maximum load, speed, mounting dimensions or connector pinout. Do not assume those details from another R811A version.

Key features

• Brand: RMT
• Version: R811A32375198
• Connections described in the existing listing: 5-pin plug and OI power plug; confirm against the original
• Application: Compatible electric recliner chairs and sofas, subject to matching the complete version and fit
• Supply: Genuine RMT replacement part from an authorised RMT dealer

Check compatibility before ordering

RMT actuators are produced in multiple versions with different wiring, plugs, dimensions and mounting specifications. Confirm the complete R811A32375198 reference on your original motor, then compare its electrical markings, actual connectors, mounting points, fully retracted and extended lengths and stroke. Do not match by appearance or the R811A family name alone. Send CouchGuard photos of the original label, full actuator, mounting ends and all plug ends if unsure.

Replacement guidance

Disconnect mains power and any backup battery before work, support moving parts, document the original mounting orientation and cable routing, and follow your chair manufacturer's instructions. Do not force mounts or connectors. Stop if wiring catches or the mechanism binds, and ask a qualified repairer if uncertain. Respect the labelled 1 minute ON / 8 minutes OFF duty cycle.

Frequently asked questions

Does the full reference end in B or 8? The supplied label shows R811A32375198, ending in the digit 8.

What ratings are printed on the label? It shows 24V DC, 50W and 3.2A, with a 1 minute ON / 8 minutes OFF duty cycle.

Which connections does it use? The existing listing describes a 5-pin plug and OI power plug. The label close-up does not establish the plug pinout; compare the actual connectors with your original part.

Will it replace any RMT motor? No. Match the complete reference, electrical markings, plugs, mounting points and dimensions before ordering.
