Buy Genuine Okin JLDK.04.04.02 Round 2-Button Recliner Switch

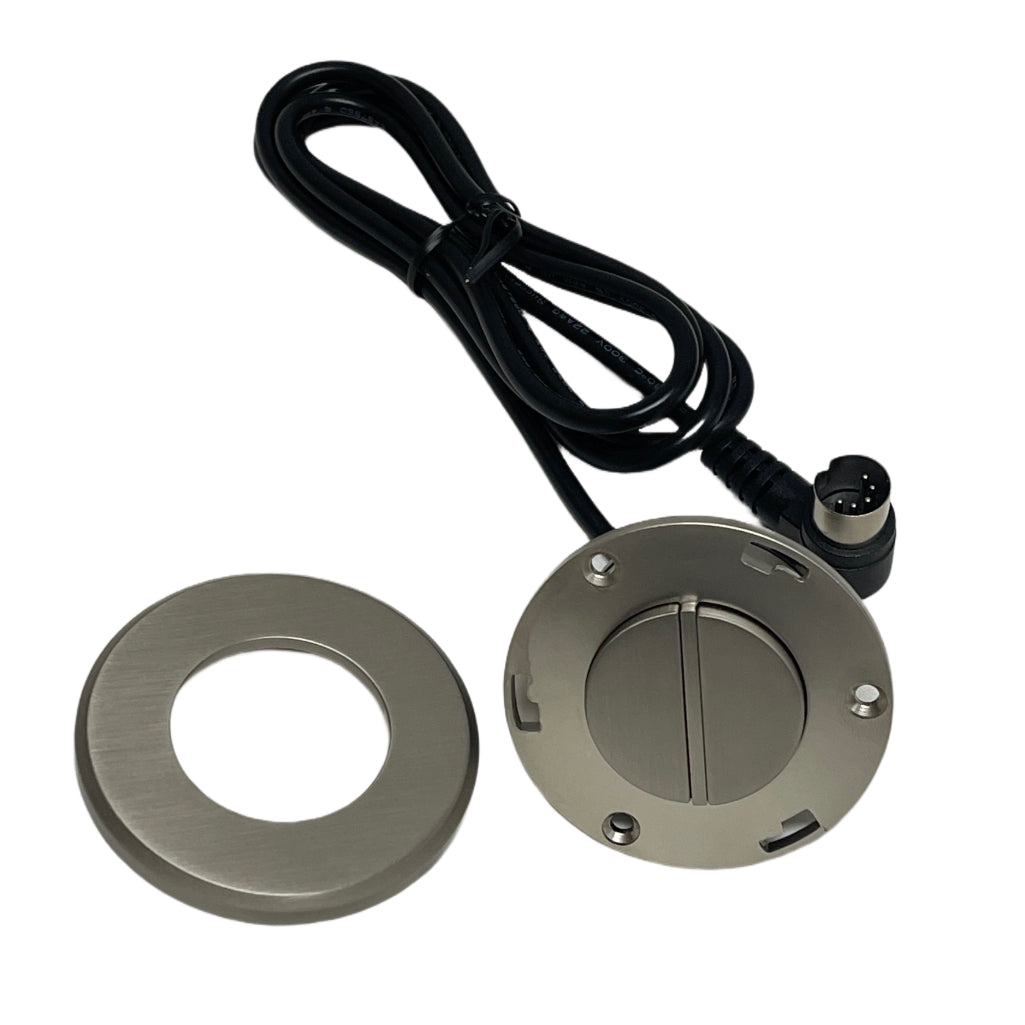

Okin JLDK.04.04.02 round two-button recliner switch

Replace a matching electric recliner control with this genuine Okin JLDK.04.04.02 wired switch. The round two-button control has a brushed stainless steel faceplate and a five-pin plug. Its removable faceplate conceals the retaining screws for a neat installation.

Okin JLDK.04.04.02 Specifications

• Device Type: Wired Power Recliner Switch.
• Model / Series: JLDK-04.
• Part Number: JLDK.04.04.02.
• Power Rating: DC 24V 2A.
• Control Buttons: Two.
• Faceplate: Round, brushed stainless steel.
• Connection: Five-pin plug.
• Mounting Access: Faceplate twists left to unclip and reveal retaining screws.

Compatibility checks

Match the original switch model, electrical requirements, connector keying, pin arrangement, wiring and mounting dimensions before ordering. A five-pin plug or round faceplate alone does not guarantee compatibility. This is not a universal-fit switch.

For help identifying the correct replacement, send CouchGuard clear photos of the original label, switch face, rear housing and connector, together with mounting measurements.

Replacement guidance

Disconnect mains power and any battery supply before replacing the switch. Twist the faceplate left to release it and access the retaining screws. Compare the mounting and connector before installing, do not force the plug or modify wiring, and keep the cable clear of moving parts. Use an experienced repairer if you are unsure.

Frequently asked questions

What is the exact switch model?

Okin JLDK.04.04.02, from the JLDK-04 series.

How many buttons does it have?

Two buttons in a round faceplate.

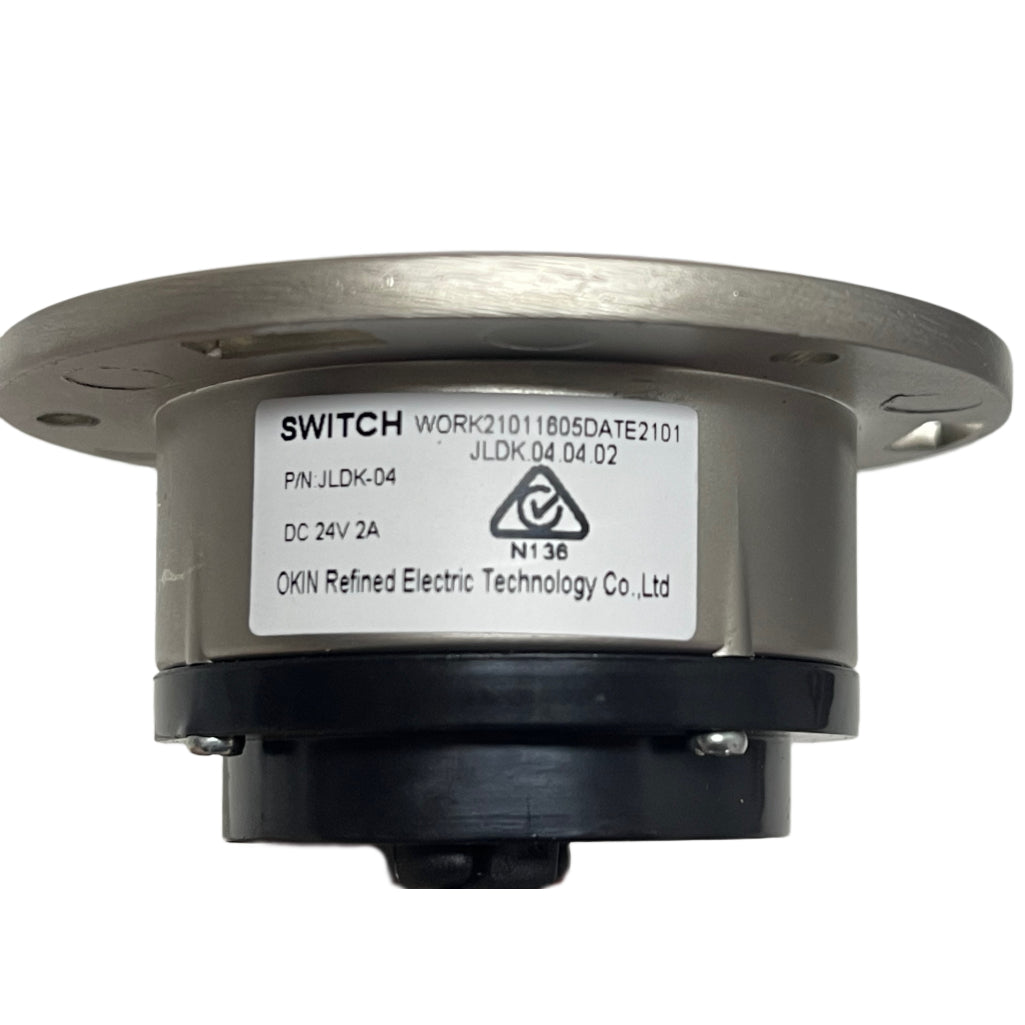

What electrical rating is on the label?

DC 24V 2A.

What plug does it use?

A five-pin plug. Match the original keying, pin arrangement and wiring.

What is the faceplate finish?

Brushed stainless steel.

How do I access the retaining screws?

With power disconnected, twist the faceplate left to unclip it and reveal the retaining screws.

Will it fit any recliner with a five-pin plug?

No. Compare the exact model, electrical requirements, wiring and mounting dimensions as well as the plug.

How can I confirm the right replacement?

Send CouchGuard photos of the original label, front and rear of the switch and connector, plus mounting measurements.
