Small Brown Recliner Handle & Cable Options

Replace a worn manual recliner release handle or choose a matching cable. The small brown handle measures 90mm × 75mm across the outer face. Select a handle only, cable only or complete handle-and-cable option from the dropdown. Compare your existing handle, barrel size and cable measurements before ordering.

Choose your option

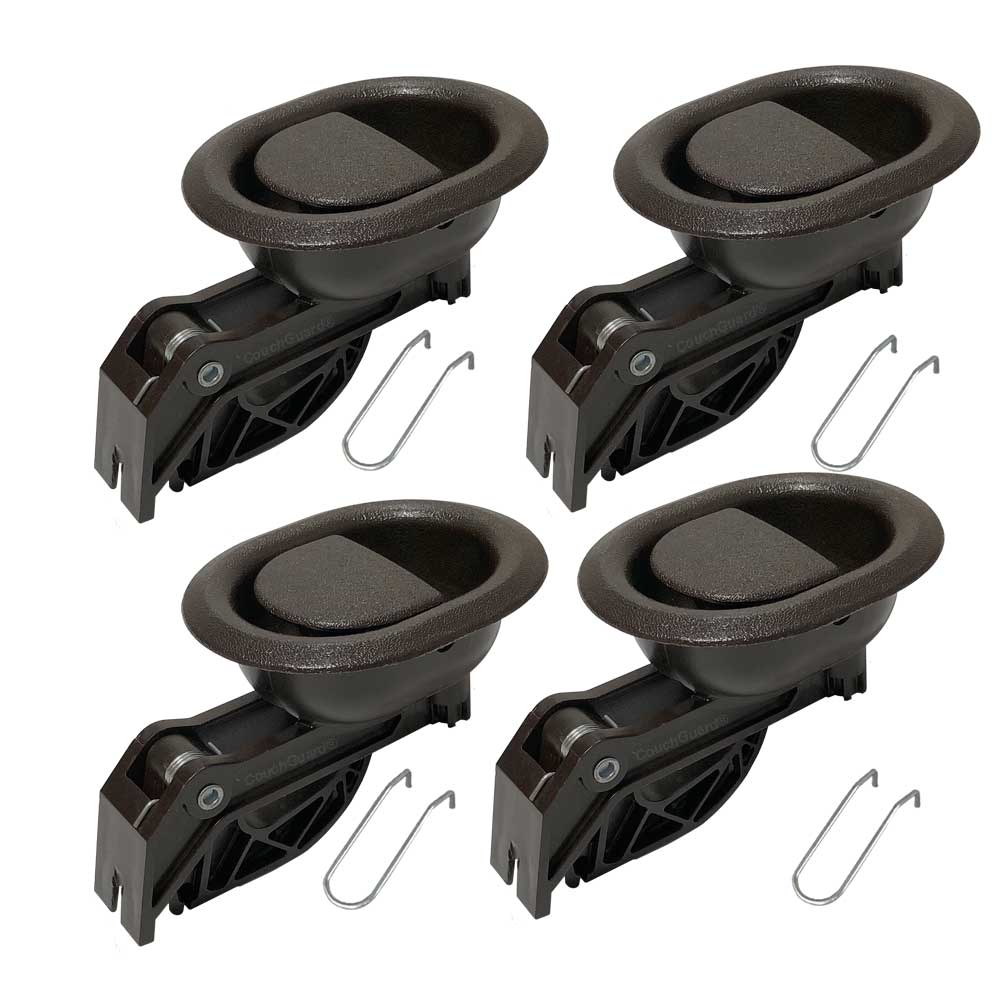

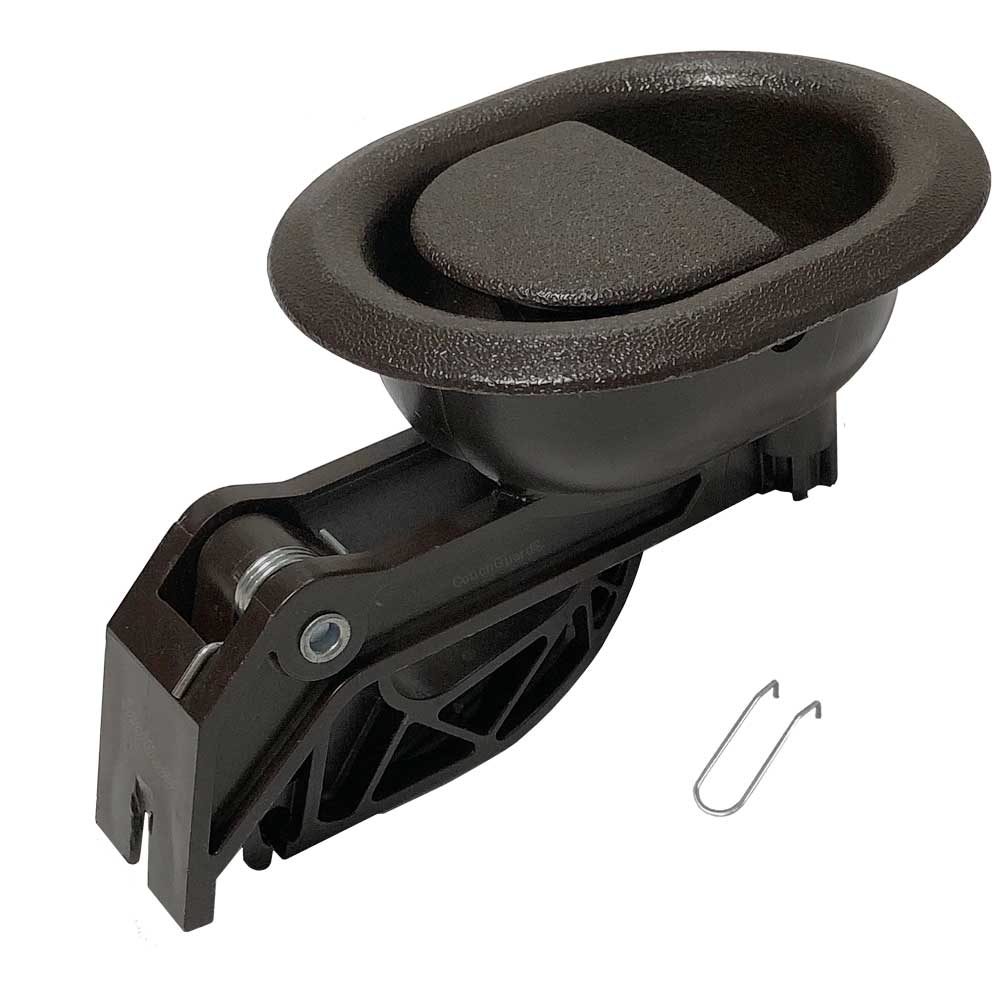

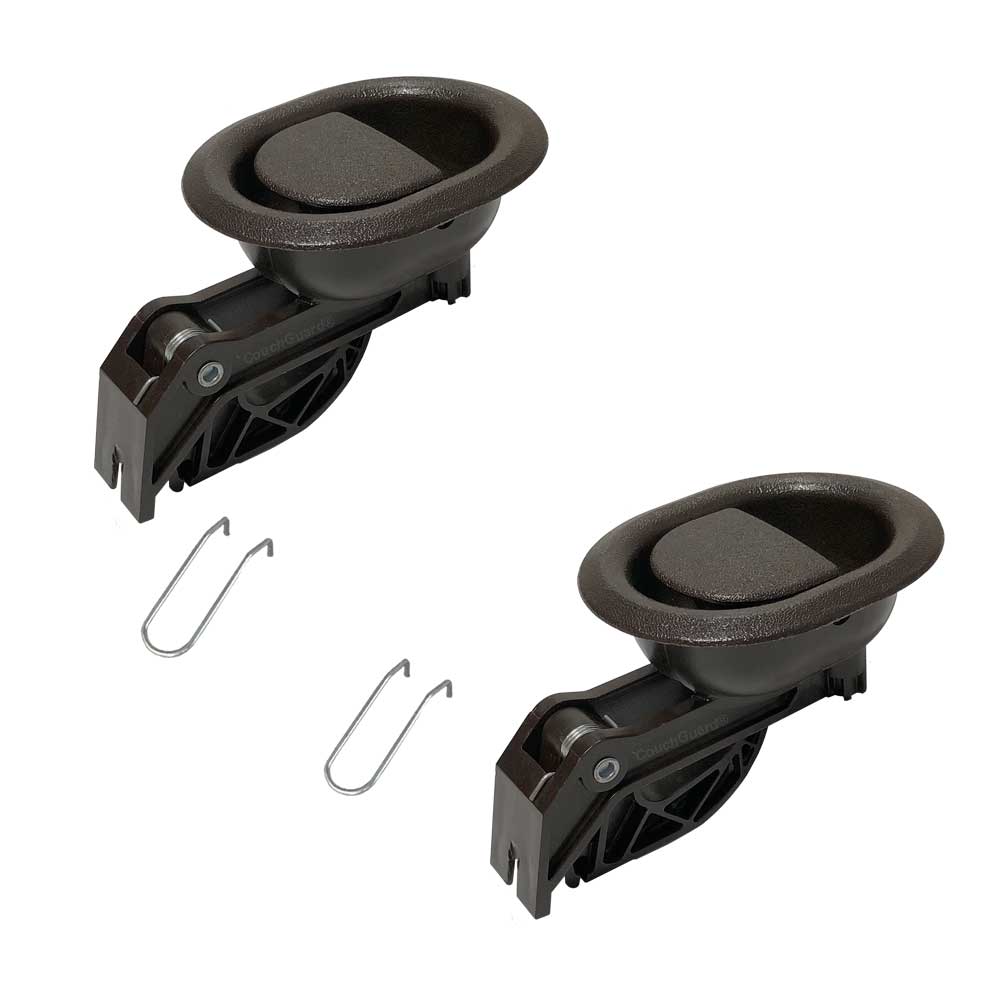

• Handle only: Single handle or two- and four-handle packs are listed, including specifically labelled 6mm barrel handle choices. The standard handle uses a 3.5mm barrel.

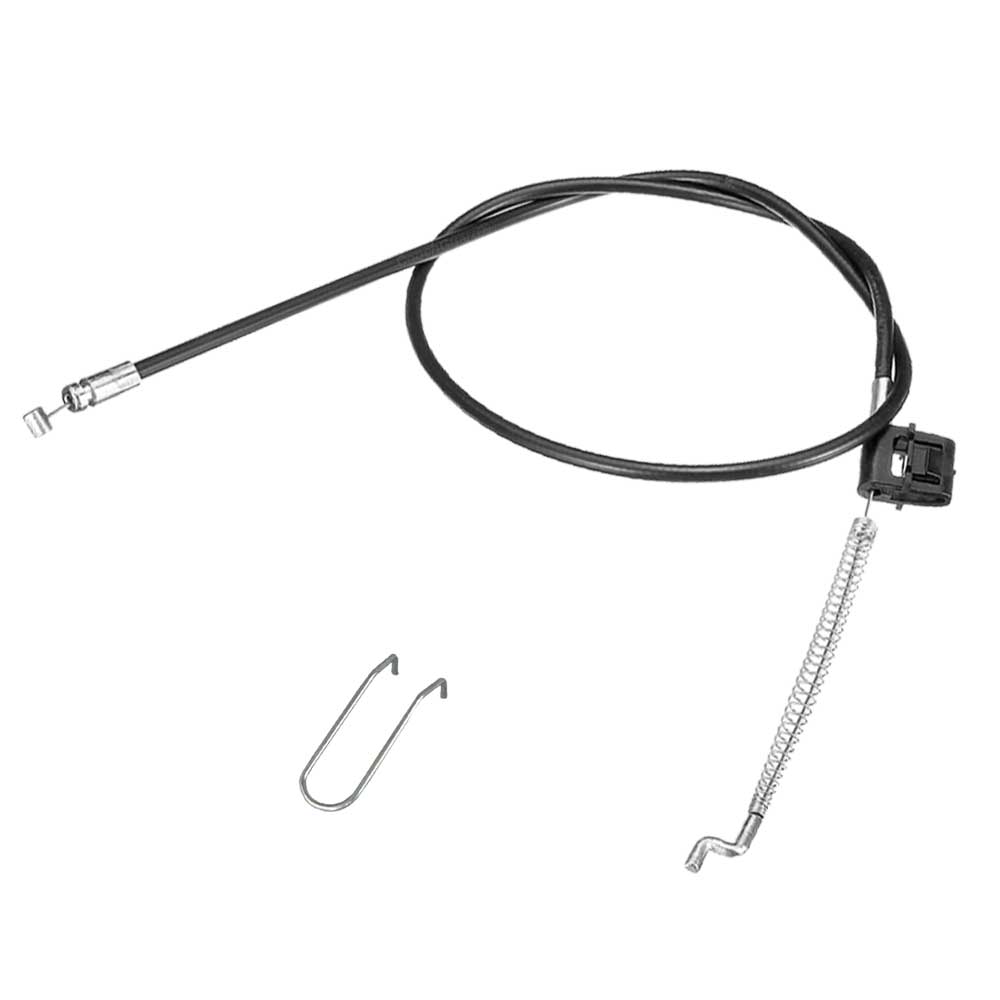

• Cable only: 3.5mm barrel choices include 830mm total cable with 92mm or 100mm exposed, 965mm with 132mm exposed, and a clearance 830mm / 132mm exposed option. A 6mm barrel cable-only option is listed at 830mm total / 100mm exposed.

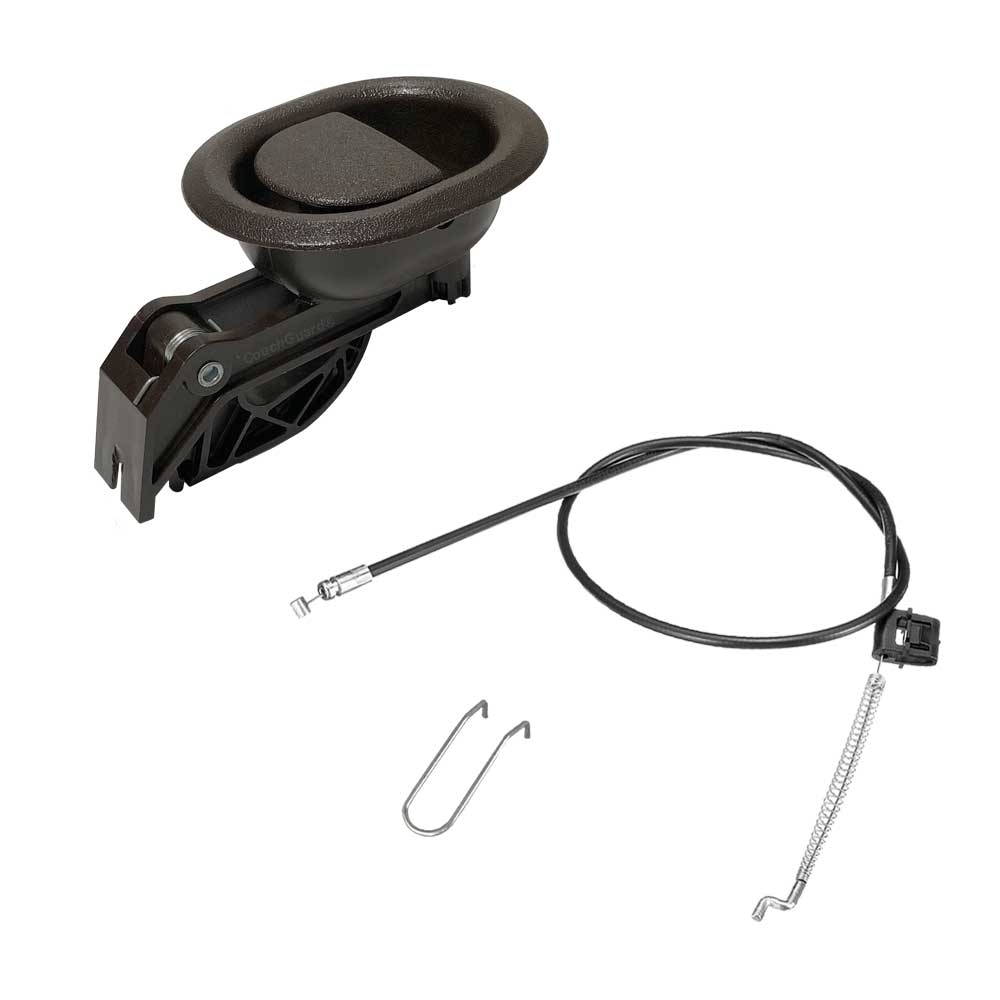

• Complete handle and cable: Select from 830mm cable with 92mm or 100mm exposed, 965mm with 132mm exposed, or a clearance 830mm / 132mm exposed option. Check the exact dropdown selection.

Retaining clip: Every option containing a handle comes with its retaining clip. Cable-only choices do not include a handle or handle retaining clip.

Finish note: The Woodgrain finish on these handles has been stopped due to waste and pollution created during manufacturing. This listing is for the brown handle options shown in the selector.

Measure before ordering

Check the outer face of your old handle, its barrel diameter, the exposed cable length and the cable end fittings. Use the Cable Cheat Sheet in the Measuring tab for exposed-length guidance. If you are unsure which part fits, send CouchGuard clear photos of the existing handle and cable with your measurements.

Frequently asked questions

Do cable-only options include a brown handle? No. Choose a handle-only or complete handle-and-cable option if you need the handle.

Is the retaining clip included? Yes, when the option contains a handle. A cable-only option does not include a handle retaining clip.

Which cable length should I choose? Match the exposed length, total cable length, barrel diameter and end fittings to the old part. The Measuring tab can help with exposed cable length.

Is a 6mm barrel option available? Yes, select an explicitly labelled 6mm handle or cable option; do not assume the standard 3.5mm choice will fit.

How To Measure Recliner Cable

You can print off a pdf where all you have to do is fill in the blank spots with your measurements, A, B and C

Open Full Size Cable Cheat Sheet Here

All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean anything.

1. Measure the complete length of the cable C from barrel to the very end of the “S”.,
2. Now measure the black plastic sheath B including the clips on both ends.
3. Measure the barrel diameter A. This is across the round face not the length and should be 6mm.

4. IF your cable is longer then 830mm or 965mm look at the 1100mm cable options. Choose “Cable Only” from the menu above

Remember to remove the cable from the handle before measuring. Cable Only is the whole cable assemble including the black plastic sheath, barrel, “S” end and clips.

The 830mm cable has a 6mm barrel – black plastic sheath 733mm and exposed cable length 97mm – Choose “830mm Cable – 97mm Exposed” from the drop down menu above
The 965mm cable has a 6mm barrel – black plastic sheath 826mm and exposed cable length 139mm – Choose “965mm Cable – 139mm Expoosed” from the drop down menu above

There are many different exposed cable lengths for this handle. The 110mm and 150mm exposed cables have an adjustable end on the cable meaning the exposed cable end can be adjusted back by 7mm maximum. For example the 150mm exposed cable can also be 143mm exposed.

1100mm Cable exposed 100mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 100MM from the drop down menu above
1100mm Cable exposed 139mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 139MM from the drop down menu above.

1. Measure the outer face of the handle, left to right.
2. Measure the outer face of the handle, top to bottom.

3. This recliner handle measures 113mm x 70mm and takes the 6mm barrel. There can be a couple mm tolerances and our trigger will still fit! Choose “Handle Only” from the drop down menu above Choose “Complete” and your cable length from the drop down menu above

Please choose / measure carefully as returns / reorders will incur a handling fee of $10.00

How to Fit A Recliner Cable

Removing & Fitting A Recliner Cable From Handle

1. With the handle already out, locate where the black cable sheath clips into the handle.
2. Remove the wire retaining clip that loops over the cable with a small flat blade screw driver.
3. Unclip the cable from the handle, remove the barrel from the holder and dispose.
4. With the new cable, guide the barrel into the plastic handle barrel holder then clip the plastic sheath clip back into handle.
5. Replace the wire retainer over the cable and clip one side at a time back into place.
6. Test the new cable for smooth operation before refitting to recliner.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
