Couch Guard Aus | SKU: CGSBH-X1

Small Oval Recliner Handle Black

$15⁵⁰

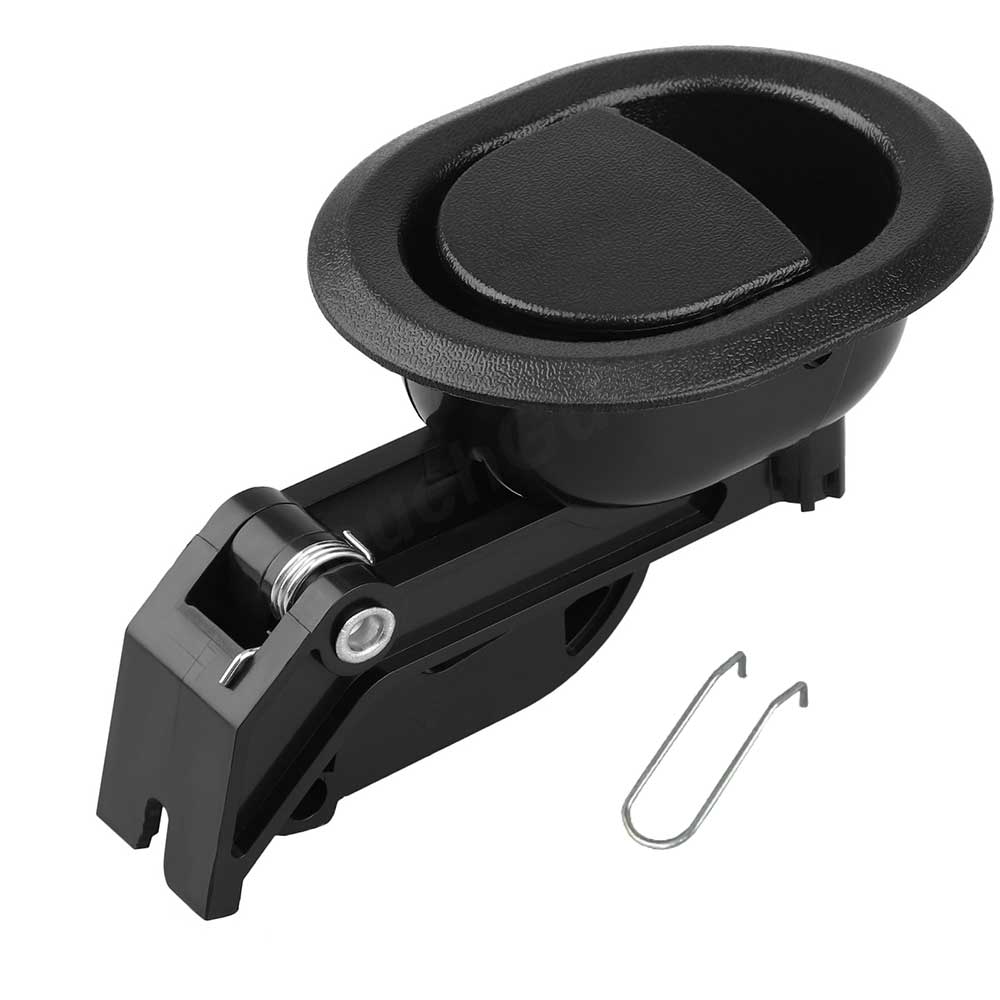

The small black recliner handle measures 90mm x 75mm across the outer face and takes the 3.5mm barrel. If you require the 6mm barrel option, please select that from the drop down menu. You’ll find a list of recliner cables that generally pair with this handle. The only 6mm barrel cable option for this style handle is the 100mm exposed. Some of our recliner cables come with the inline spring on the cable. This is easily removed if you don’t require it. Simply unwind it off. Buy Quality Recliner Chair Parts From CouchGuard®

Description

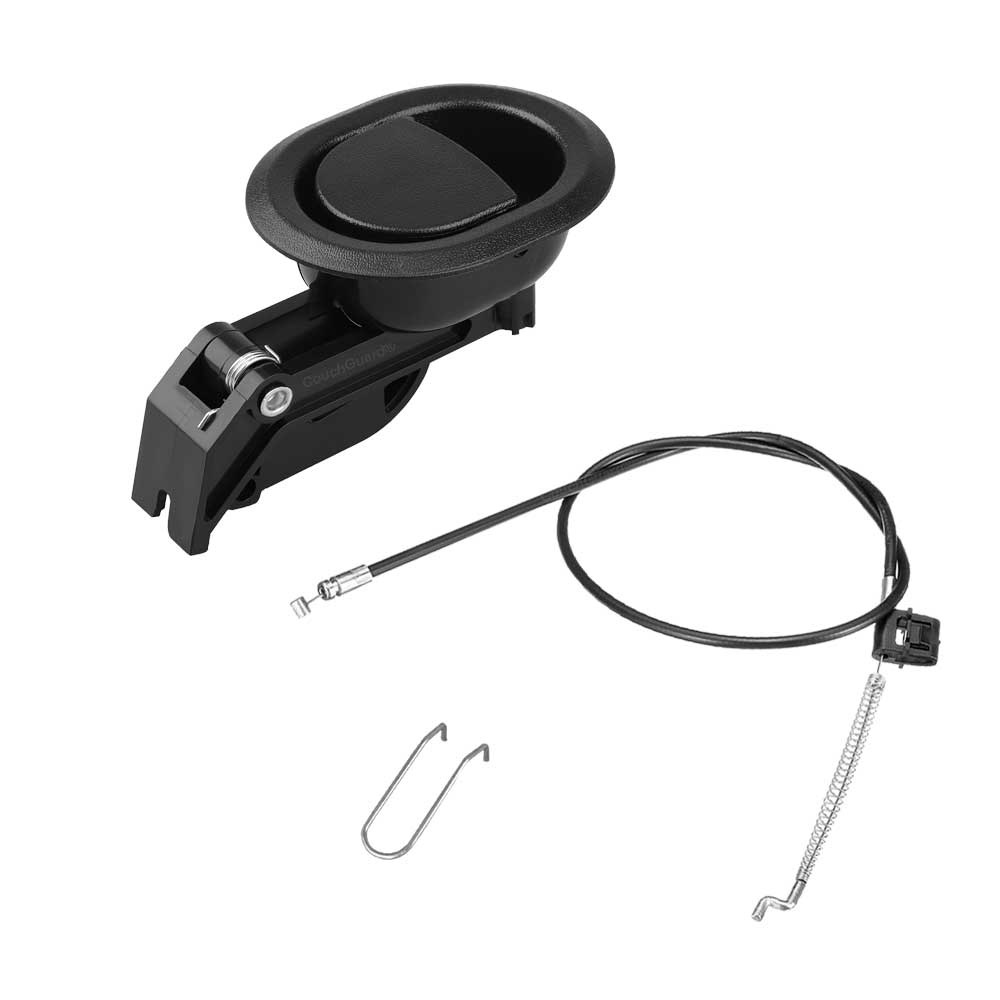

The small oval recliner handle measures 90mm x 75mm across the outer face, takes a 3.5mm barrel and can either be ordered as individual recliner handle or as a complete unit, handle and cable. There exposed cable length is the key to selecting the correct recliner cable. This is easily measured by using the Cable Cheat Sheet that is on this page. Tap or click on the Measuring tab. Once you know your exposed cable length, choose from one of the "Options" in the dropdown menu.

Measuring

You can print off a pdf where all you have to do is fill in the blank spots with your measurements, A, B and C

Open Full Size Cable Cheat Sheet Here

All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean anything.

Measure the complete length of the cable C from barrel to the very end of the “S”.,
Now measure the black plastic sheath B including the clips on both ends.
Measure the barrel diameter A. This is across the round face not the length and should be 6mm.
Sub track the complete cable length from the black plastic sheath length and this gives you the exposed cable length. This is the most important measurement. Your old cable can be shorter but still have the same exposed cable length as ours.
IF your cable is longer then 830mm or 965mm look at the 1100mm cable options. Choose “Cable Only” from the menu above

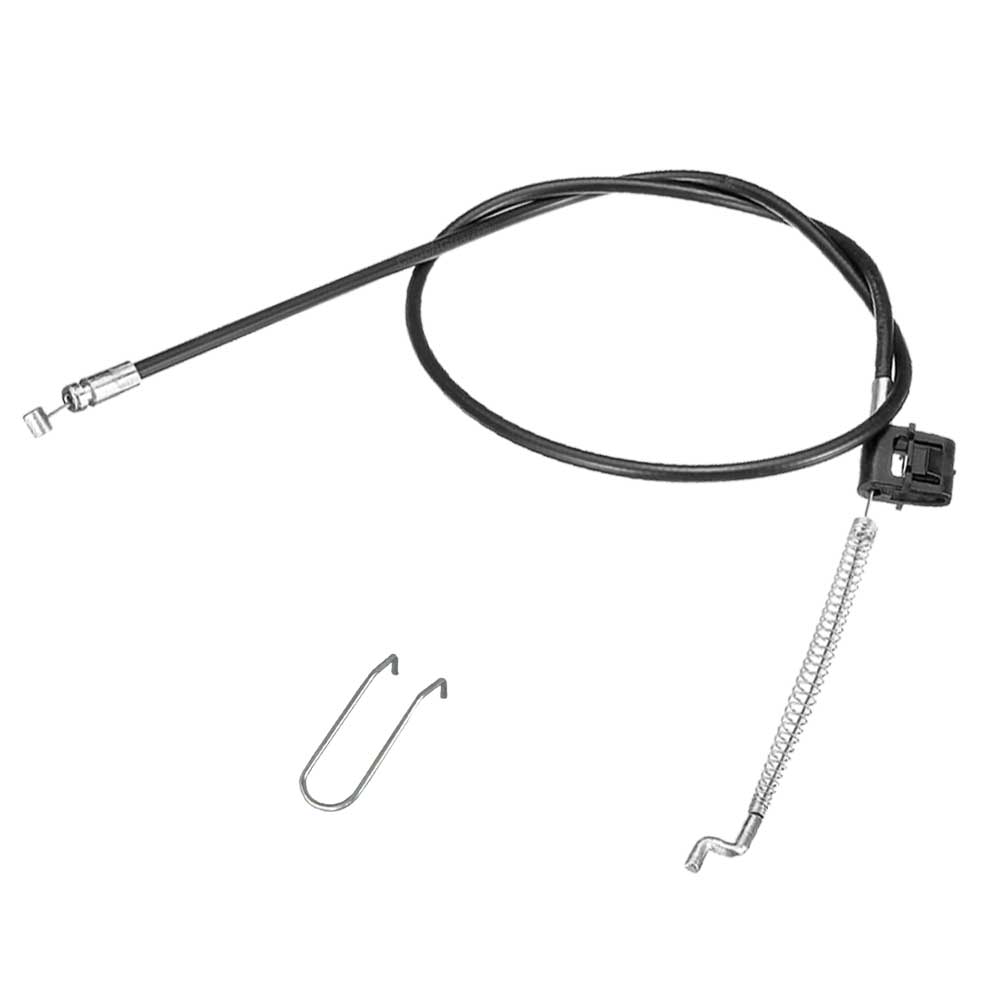

Remember to remove the cable from the handle before measuring. Cable Only is the whole cable assemble including the black plastic sheath, barrel, “S” end and clips.

The 830mm cable has a 6mm barrel – black plastic sheath 733mm and exposed cable length 97mm – Choose “830mm Cable – 97mm Exposed” from the drop down menu above.
The 965mm cable has a 6mm barrel – black plastic sheath 826mm and exposed cable length 139mm – Choose “965mm Cable – 139mm Expoosed” from the drop down menu above

There are many different exposed cable lengths for this handle. The 110mm and 150mm exposed cables have an adjustable end on the cable meaning the exposed cable end can be adjusted back by 7mm maximum. For example the 150mm exposed cable can also be 143mm exposed.

1100mm Cable exposed 100mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 100MM from the drop down menu above
1100mm Cable exposed 139mm – If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the “S”. Choose 1100mm Cable EXPOSED 139MM from the drop down menu above.

Measure the outer face of the handle, left to right.
Measure the outer face of the handle, top to bottom.
This recliner handle measures 113mm x 70mm and takes the 6mm barrel. There can be a couple mm tolerances and our trigger will still fit! Choose “Handle Only” from the drop down menu above Choose “Complete” and your cable length from the drop down menu above.

Please choose / measure carefully as returns / reorders will incur a handling fee of $10.00

Directions & Video

Removing & Fitting A Recliner Cable From Handle

With the handle already out, locate where the black cable sheath clips into the handle.
Remove the wire retaining clip that loops over the cable with a small flat blade screw driver.
Unclip the cable from the handle, remove the barrel from the holder and dispose.
With the new cable, guide the barrel into the plastic handle barrel holder then clip the plastic sheath clip back into handle.
Replace the wire retainer over the cable and clip one side at a time back into place.
Test the new cable for smooth operation before refitting to recliner.

FAQ

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Additional Information

How To Measure Recliner Cable

You can print off a pdf where all you have to do is fill in the blank spots with your measurements, A, B and C

Click here to open the full size cable cheat sheet.

Limited Stock - Limited Time

Buy Metal Handles only for the following prices:

2 x Metal Handles Only - $33

4 x Metal Handles Only $63

ALL of our handles and cables come with the cable retaining clip FREE
