Buy Genuine SUTA 3.0 Control Box & Wireless Handset Set

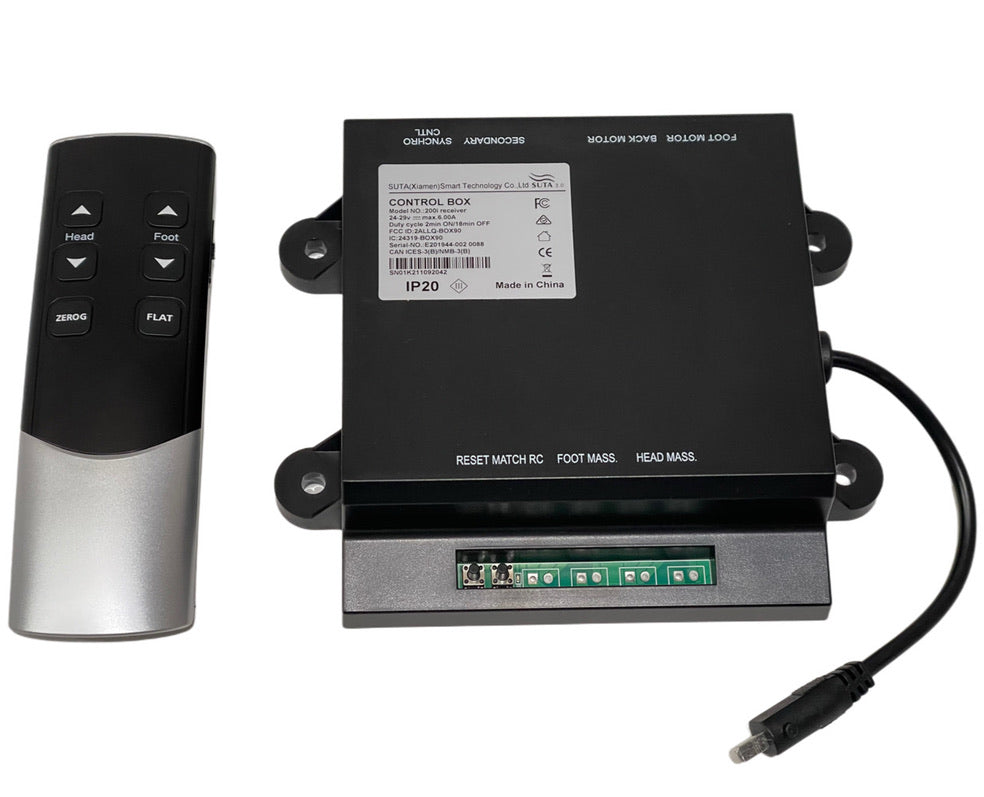

SUTA 3.0 control box and wireless handset set

This genuine SUTA 3.0 set includes a control box and matching six-button wireless handset. SUTA components can be found in bed and lift-chair systems. Match the original model, generation, connectors and system configuration before ordering; this set is not a universal replacement for every bed or lift chair.

SUTA 3.0 Set Specifications

• Device Type: Control Box and RF Wireless Handset Set.
• System Generation: SUTA 3.0.

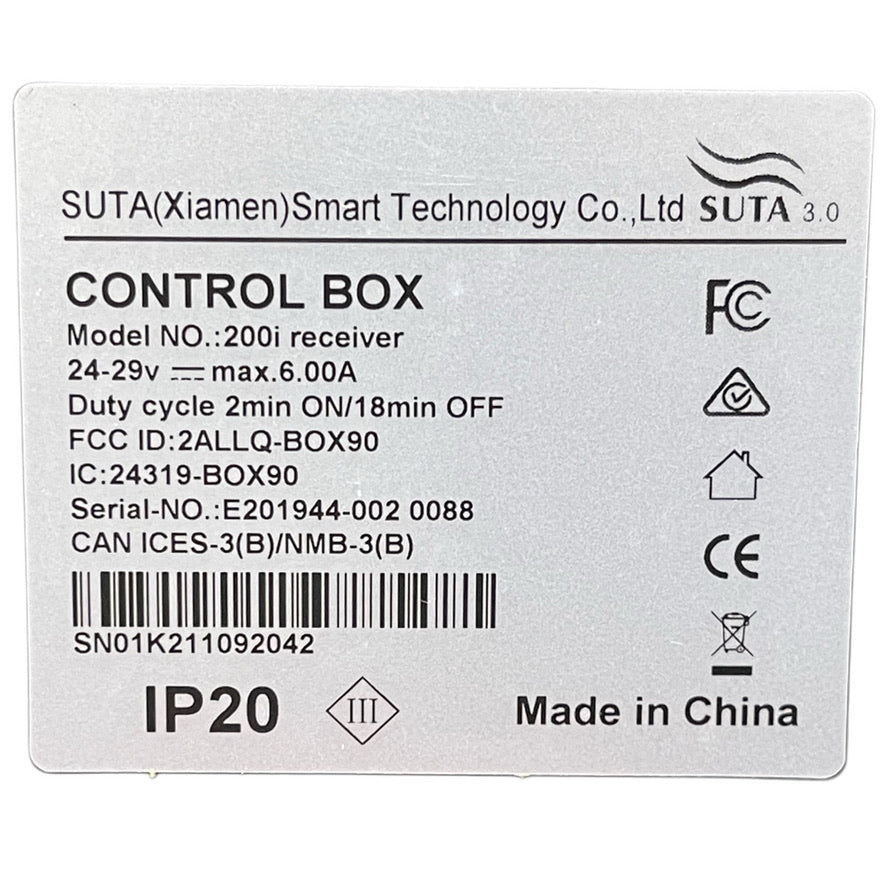

• Control Box Label Model: 200i receiver.
• Control Box Electrical Rating: 24–29V DC, maximum 6.00A.
• Control Box Duty Cycle: 2 minutes ON / 18 minutes OFF.
• Protection Rating: IP20 on both pictured component labels.

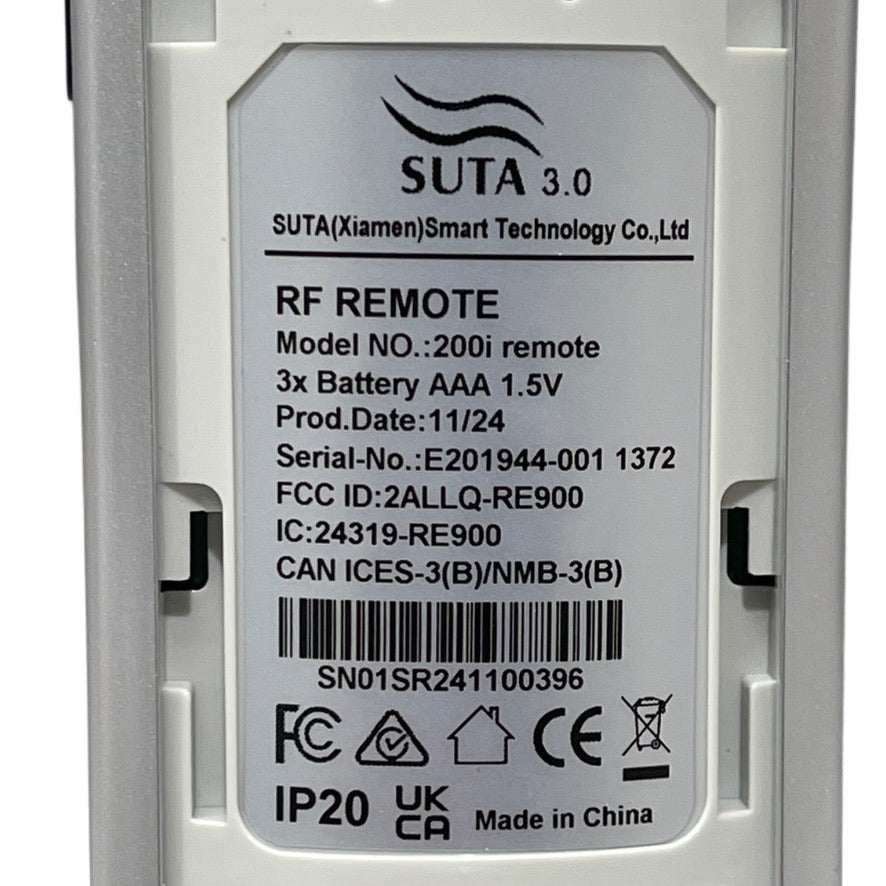

• Handset Label Model: 200i remote.
• Handset Power: Three AAA 1.5V batteries.

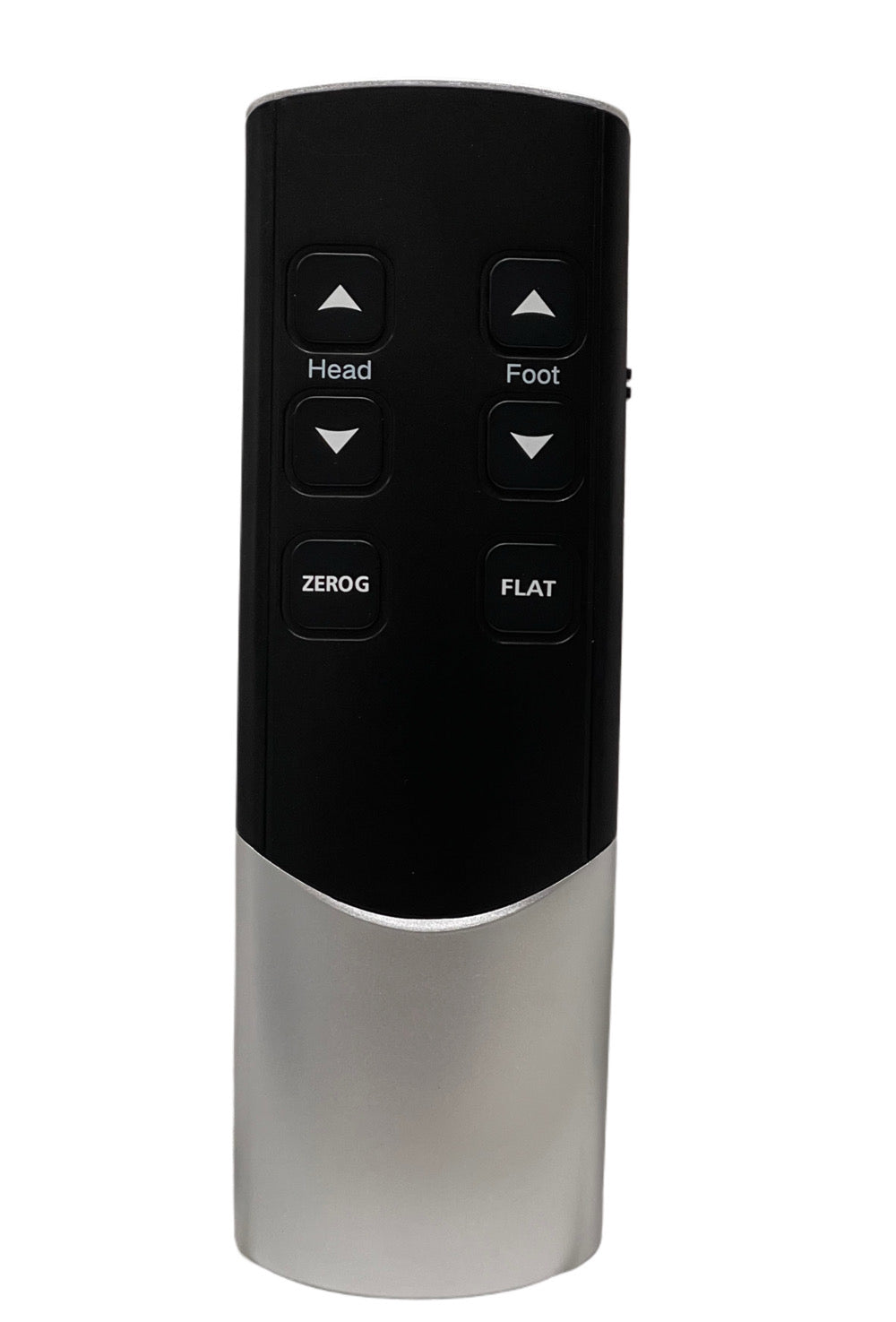

• Handset Layout: Six buttons, Head and Foot up/down, ZERO G and FLAT.

The pictured SUTA 3.0 labels also show 200i receiver and 200i remote. The 200i wording alone does not establish compatibility with older SUTA 200i or 200iB equipment. Functions depend on the connected mechanism and system configuration.

What is included?

• One SUTA 3.0 control box.
• One matching SUTA 3.0 wireless handset.

Batteries, a power supply and additional accessories are not specified as included. Confirm installation accessories before ordering.

Replacing an older SUTA system

Replacement SUTA 2.0 handsets are obsolete. Replacing that system may require a matching 3.0 set, subject to compatible system connections. Do not assume an old 2.0 handset will pair with a 3.0 box or mix 300i components with this set.

Send CouchGuard photos of the original box label, handset, connectors and bed or lift-chair wiring for help checking suitability.

Pairing and safe setup

Disconnect mains and backup power before changing connections. Connect matching components without forcing plugs, then follow the pairing instructions supplied for the exact set. Do not guess a sequence from another generation. Check batteries, supply power and wiring if the system does not respond.

Frequently asked questions

Are SUTA parts found in beds and lift chairs?

Yes. SUTA components can be found in bed and lift-chair systems, but fit depends on the exact model, generation, connections and configuration.

Does this include both a box and handset?

Yes, one SUTA 3.0 control box and matching wireless handset.

Why do the labels say 200i?

The pictured 3.0 components are labeled 200i receiver and 200i remote. Match the complete label and generation, not the 200i wording alone.

What is the box rating?

24–29V DC, maximum 6.00A, with 2 minutes ON / 18 minutes OFF.

Which batteries does the handset use?

Three AAA 1.5V batteries, not specified as included.

What controls are provided?

Head up/down, Foot up/down, ZERO G and FLAT. Movement depends on the connected compatible mechanism.

Can I retain an old 2.0 handset?

Do not assume cross-generation pairing. Check a complete matching set and system connections.

How do I pair it?

Use the supplied instructions for this exact 3.0 set, not another model's sequence.

Will it fix every non-responsive system?

No. Batteries, power supply, wiring or other components may also cause the fault.
