Buy Genuine SUTA 3.0 Control Box Only

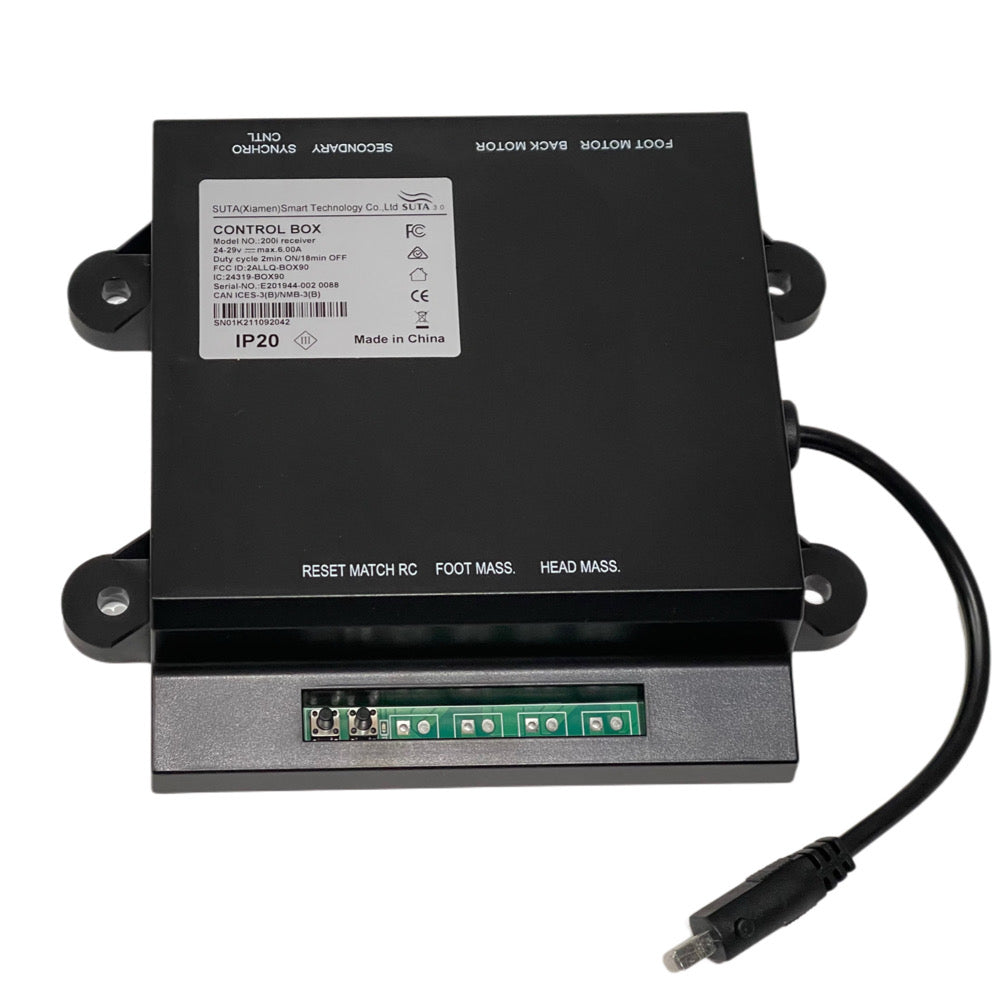

Genuine SUTA 3.0 replacement control box

Replace a compatible SUTA 3.0 control box without buying a complete box-and-handset set. SUTA components can be found in bed and lift-chair systems. Match the original model, generation, connectors and system configuration before ordering. This listing is control box only; no handset is included.

SUTA 3.0 Control Box Specifications

• Device Type: Replacement Control Box / RF Receiver.
• System Generation: SUTA 3.0.
• Label Model: 200i receiver.
• Electrical Rating: 24–29V DC, maximum 6.00A.
• Duty Cycle: 2 minutes ON / 18 minutes OFF.
• Protection Rating: IP20.

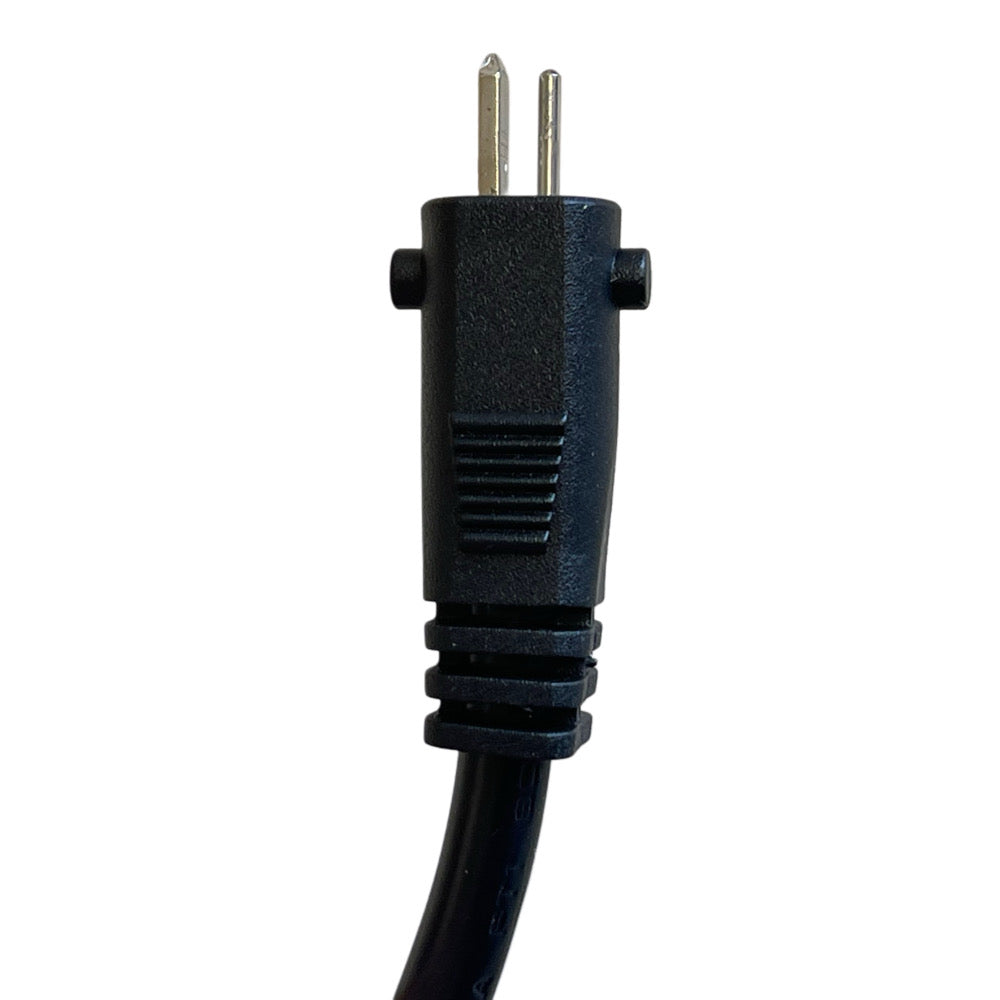

• Power Connection: Pictured two-pin plug with one flat and one round pin.
• Supply Scope: Control box only, without handset.

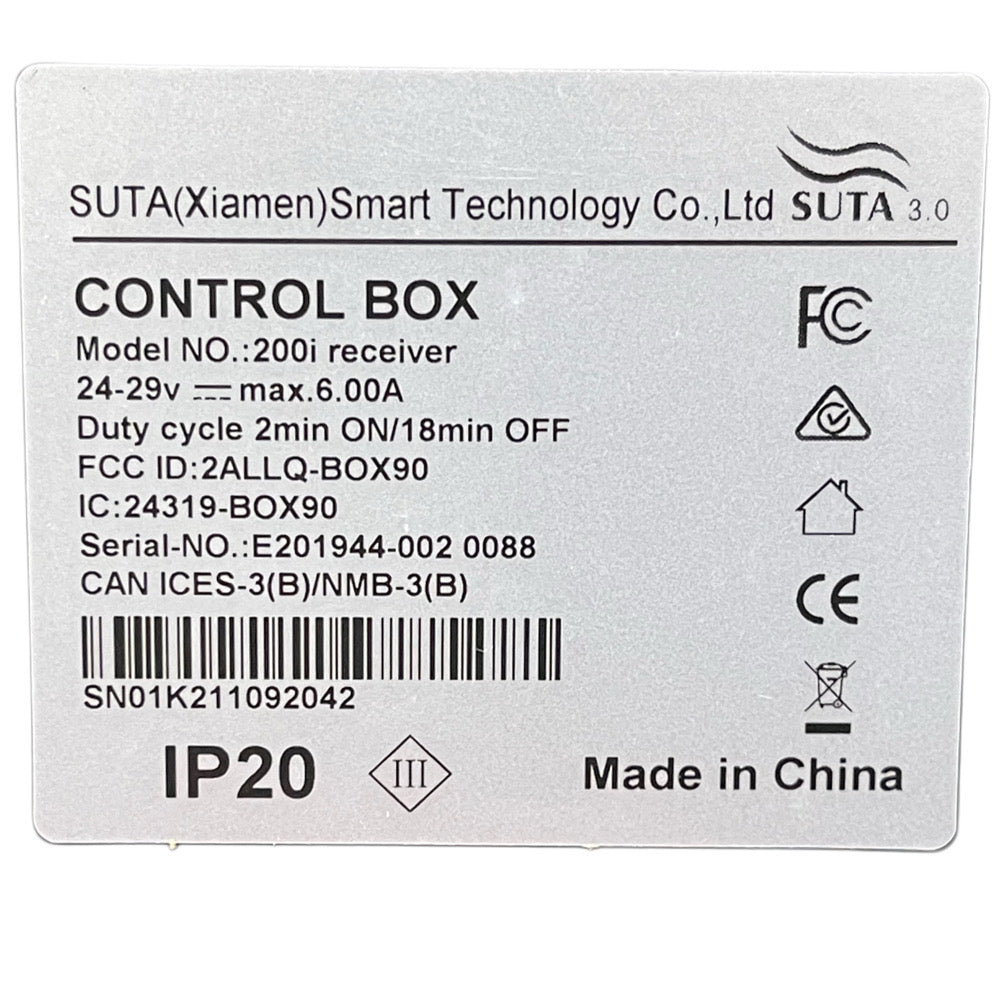

The pictured label shows both SUTA 3.0 and 200i receiver. The 200i wording alone does not establish compatibility with older 200i or 200iB systems. Match the full original label and connection layout.

Compatibility checks

Use a matching compatible SUTA 3.0 handset. Do not mix SUTA 2.0 or 300i equipment with this box. Compare motor ports, original plugs, power connection and polarity, and bed or lift-chair wiring. A matching voltage or similar connector alone does not establish fit.

If changing from SUTA 2.0, ask CouchGuard to check a complete matching 3.0 box-and-handset set against the original system. Send clear label, handset and connector photos before ordering if uncertain.

Safe setup and pairing

Disconnect mains and backup power before changing connections. Connect matching plugs without forcing them. Follow the instructions for the exact 3.0 box and handset rather than another generation's sequence. Check power, handset batteries and wiring if the system does not respond.

Frequently asked questions

Are SUTA parts used in beds and lift chairs?

Yes. SUTA components can be found in bed and lift-chair systems, subject to exact model and configuration compatibility.

Is a handset included?

No. This is the control box only.

Why is the model labeled 200i receiver?

The pictured box bears both SUTA 3.0 and 200i receiver markings. Match the full label, not 200i alone.

What electrical rating is shown?

24–29V DC, maximum 6.00A, with 2 minutes ON / 18 minutes OFF.

Can I use a SUTA 2.0 or 300i handset?

No. Use the matching compatible SUTA 3.0 equipment.

How do I pair the handset?

Follow instructions for the exact 3.0 box and handset, not a sequence from another model.

Will it fix every non-responsive system?

No. Power supply, batteries, wiring and other components may also cause the fault.

What photos help confirm suitability?

Send photos of the box label, original handset, power plug, motor connectors and system wiring.
