Buy Genuine SUTA 300i Control Box & Wireless Handset Set

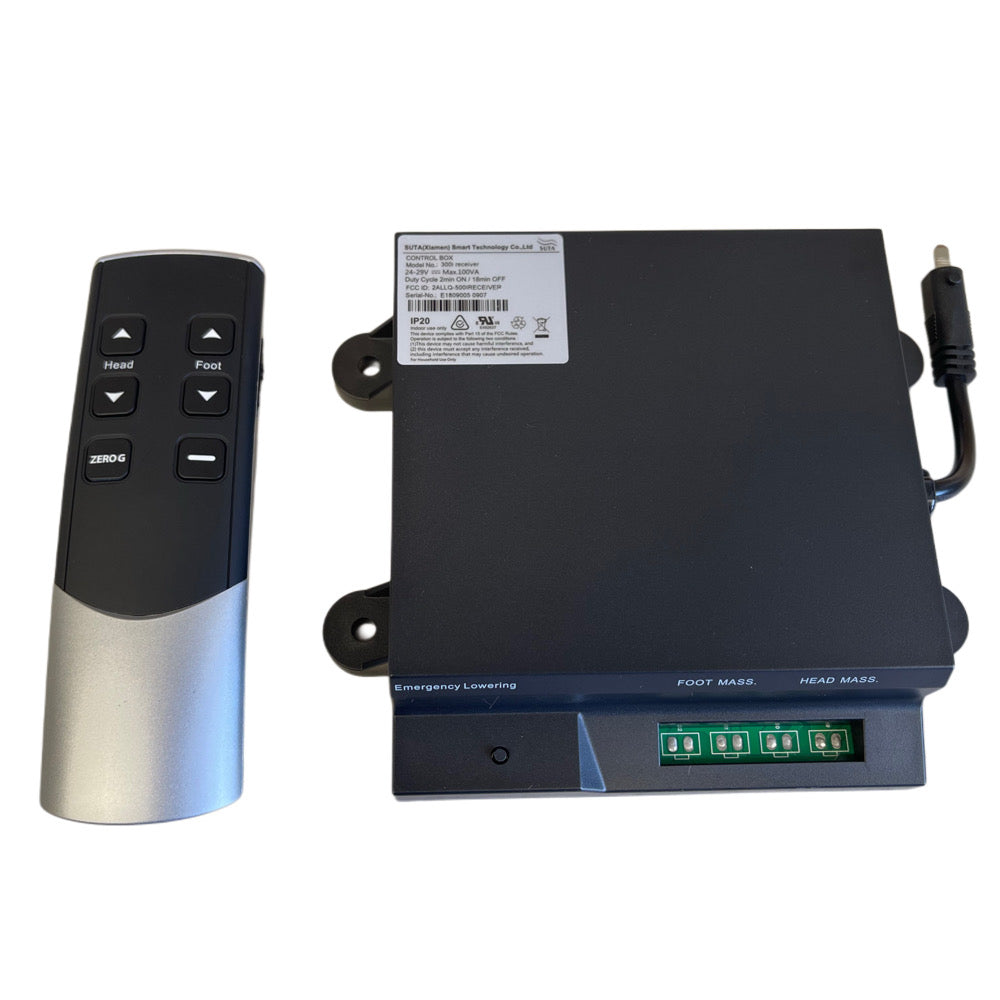

SUTA 300i control box and wireless handset set

This genuine SUTA 300i set includes a matching control box and six-button RF wireless handset. SUTA components can be found in bed and lift-chair systems. Match the original model, generation, connectors and system configuration before ordering. This is a set, not a box or handset sold on its own.

SUTA 300i Set Specifications

• Device Type: Control Box and RF Wireless Handset Set.
• System Series: SUTA 300i.

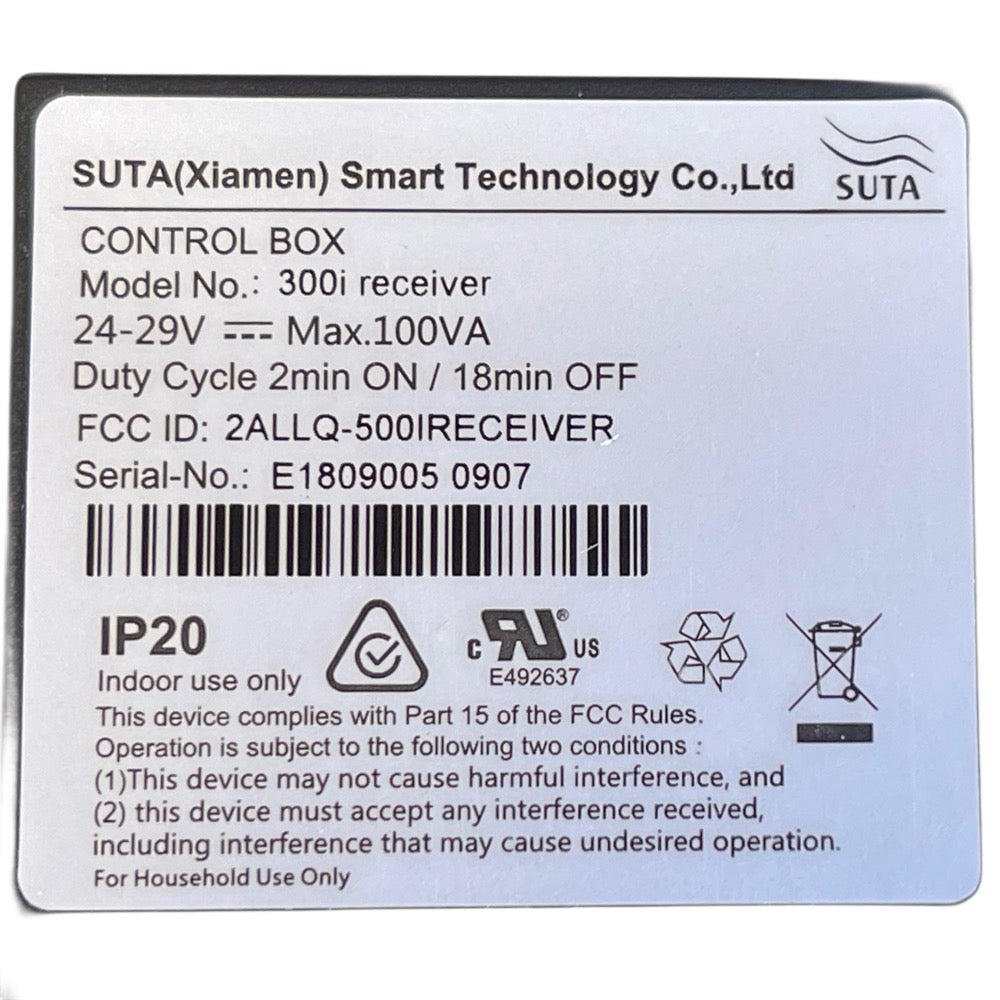

• Control Box Label Model: 300i receiver.
• Control Box Rating: 24–29V DC, maximum 100VA.
• Control Box Duty Cycle: 2 minutes ON / 18 minutes OFF.

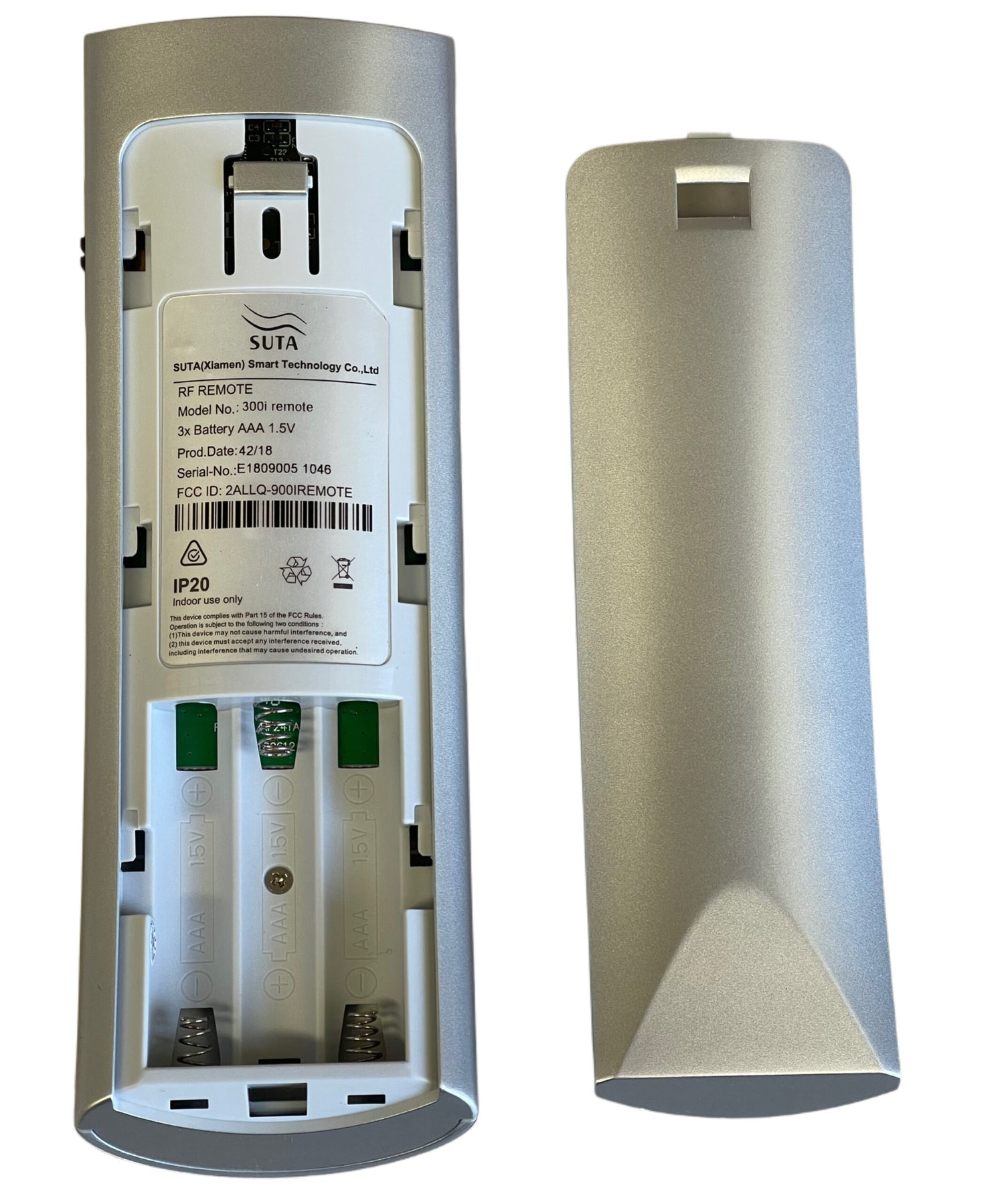

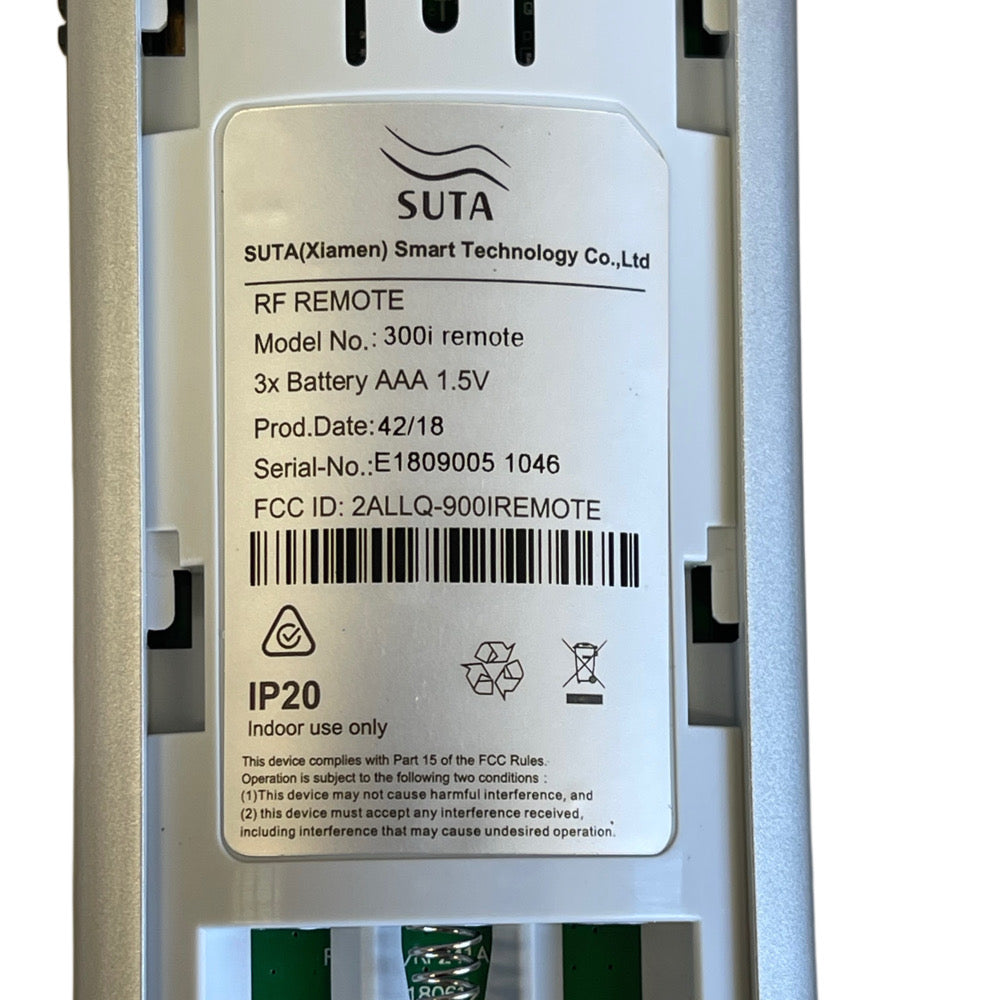

• Handset Label Model: 300i remote.
• Handset Power: Three AAA 1.5V batteries.
• Protection Rating: IP20; indoor use only.

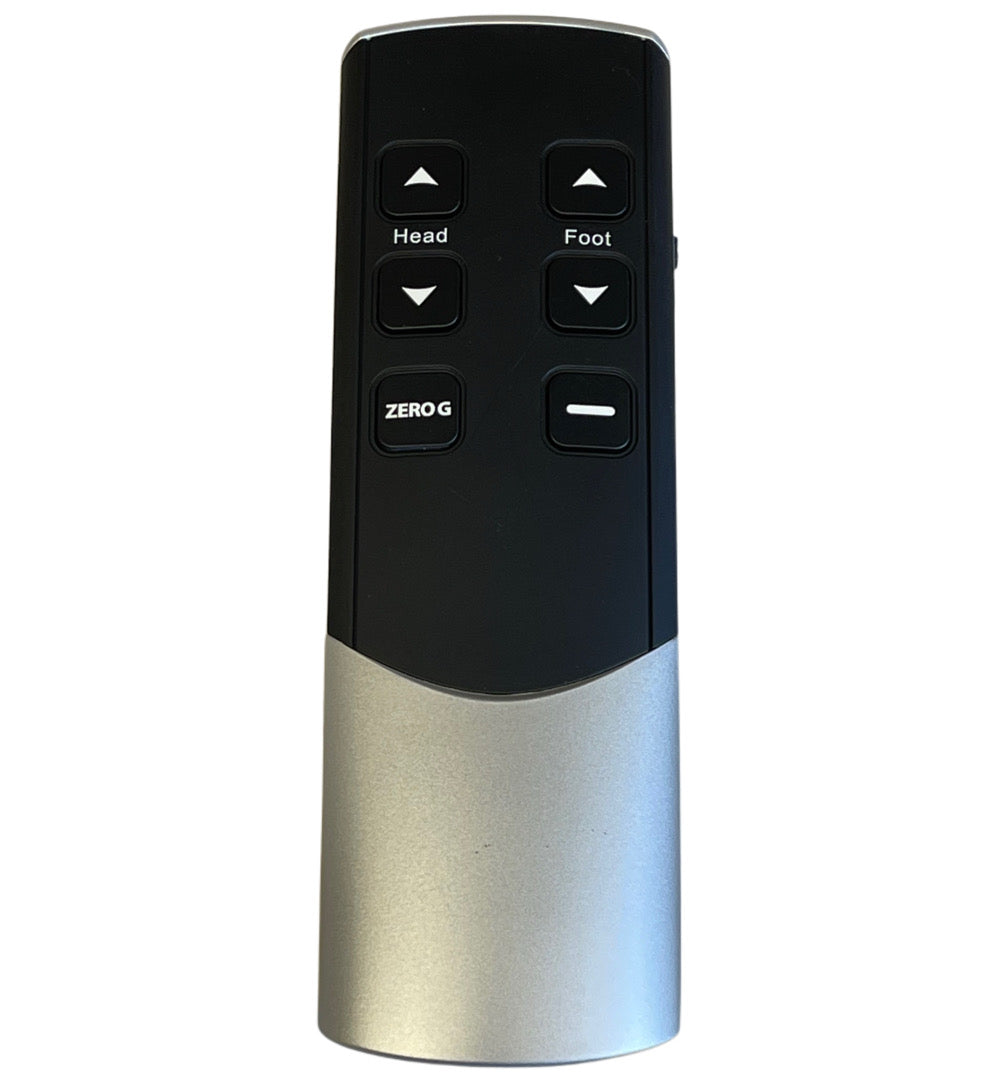

• Handset Layout: Six buttons, Head and Foot up/down, ZERO G and a horizontal-bar symbol.

Available movements and accessory functions depend on the connected mechanism and configuration. Housing labels and buttons do not establish universal fit or mean massage accessories are included.

What is included?

• One genuine SUTA 300i control box.
• One matching SUTA 300i wireless handset.

Batteries, power supply and additional accessories are not specified as included. Confirm any required installation accessories before ordering.

Compatibility checks

Match the 300i markings on the original parts and compare power, motor and accessory connectors, polarity and bed or lift-chair wiring. SUTA 2.0 and 3.0 systems are not interchangeable with this 300i set. Send CouchGuard photos of the original labels, handset and connectors for help checking suitability.

Pairing and safe setup

Disconnect mains and backup power before changing connections. Connect matching parts without forcing plugs. Follow instructions for the exact 300i set, including pairing and emergency lowering. Do not guess sequences from another generation. Check batteries, supply power and wiring if the system does not respond.

Frequently asked questions

Are SUTA parts used in beds and lift chairs?

Yes. SUTA components can be found in bed and lift-chair systems; fit depends on the exact model and configuration.

What does the set include?

One SUTA 300i control box and matching wireless handset.

What are the component label models?

300i receiver and 300i remote.

What is the control box rating?

24–29V DC, maximum 100VA, with 2 minutes ON / 18 minutes OFF.

Which batteries does the handset use?

Three AAA 1.5V batteries, not specified as included.

Can I mix this set with SUTA 2.0 or 3.0 parts?

No. Use matching compatible 300i components and confirm the system connections.

How do I pair it?

Follow the instructions supplied for the exact 300i set rather than another model's sequence.

Will this repair every non-responsive system?

No. Batteries, supply power, wiring or other components may also cause the fault.
