Buy Genuine TiMotion TA6-1015-002 Lift Chair Actuator

Genuine TiMotion TA6-1015-002 Lift Chair Actuator

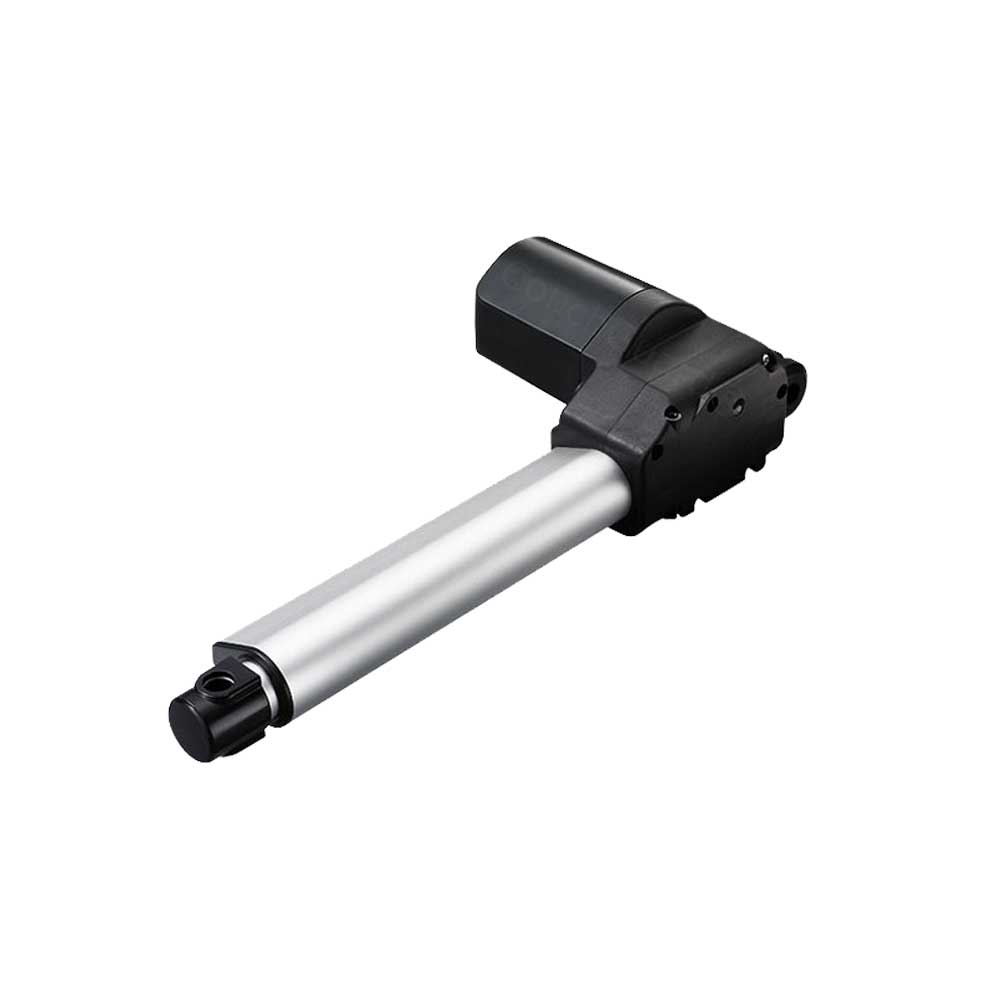

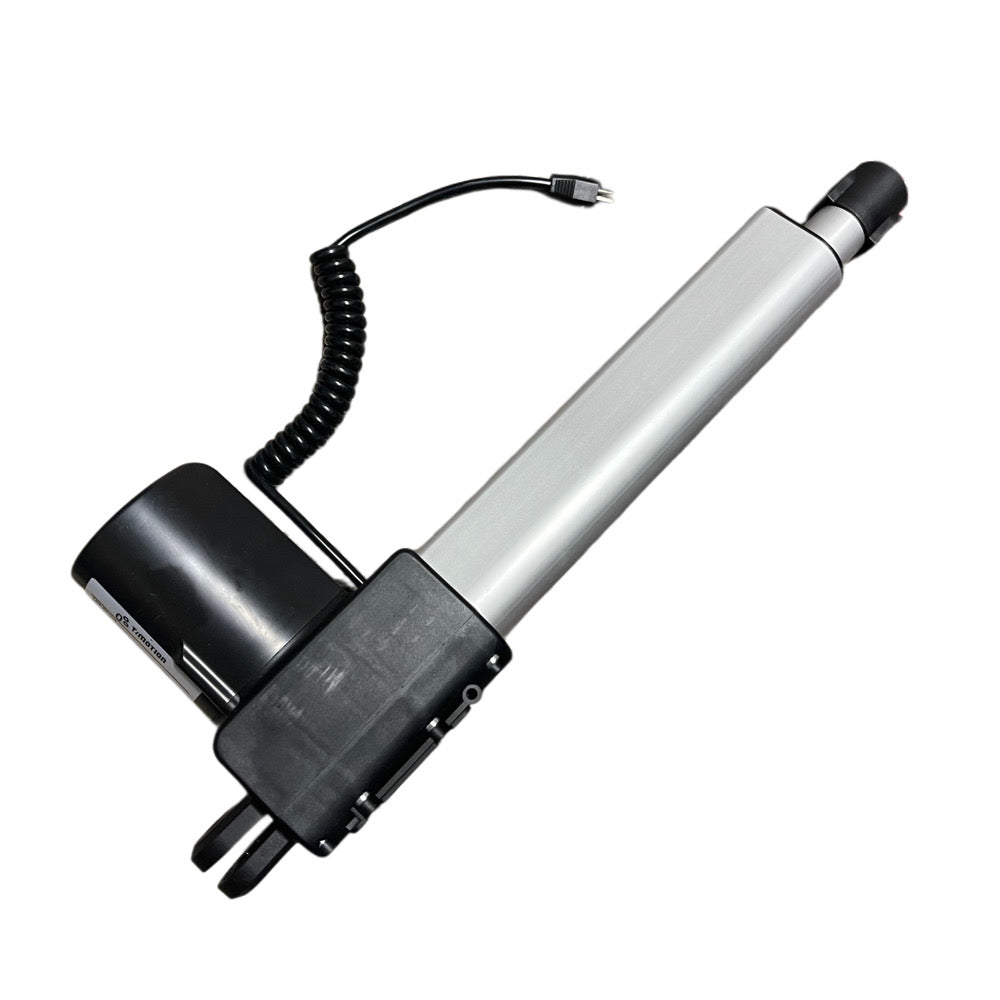

Restore powered movement to a compatible lift chair with the genuine TiMotion TA6-1015-002 linear actuator. This actuator is also identified by La-Z-Boy part number 10.0000.30.0102. It comes with the matching I/O power lead for a plug-and-play electrical connection in a compatible system.

Key details

• Brand: TiMotion
• Model: TA6-1015-002
• La-Z-Boy part number: 10.0000.30.0102
• Part type: electric lift chair linear actuator
• Includes the matching I/O power lead
• Plug-and-play electrical connection in a compatible system

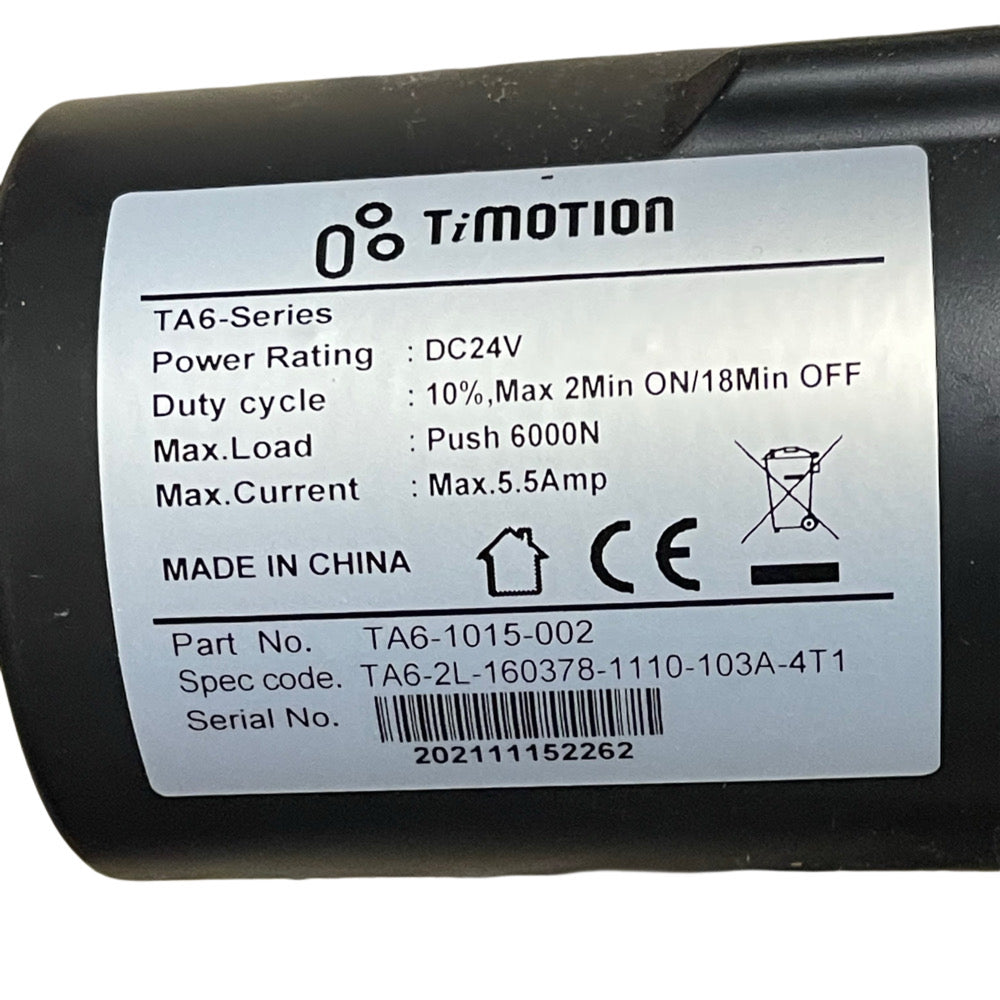

Technical specifications

• Series: TA6
• Power rating: DC 24V
• Maximum load: 6000N push
• Maximum current: 5.5A
• Duty cycle: 10%, maximum 2 minutes on followed by 18 minutes off
• Specification code: TA6-2L-160378-1110-103A-4T1
• Country of manufacture: China

Compatibility

Order by the exact actuator model and physical configuration, not the chair brand alone. La-Z-Boy and other powered-chair ranges can use different motors, connectors, stroke lengths and mounting points.

Before ordering, confirm TA6-1015-002 or La-Z-Boy part number 10.0000.30.0102 on the original part information and compare the connectors, mounting points and dimensions. If you need confirmation, call or email CouchGuard with clear photos of the original label, connectors and complete actuator.

How to remove and replace the actuator

Important: Powered-chair mechanisms are heavy and can move or pinch unexpectedly. If you cannot safely support the chair and moving frame, use a qualified furniture or lift-chair technician.

1. Disconnect all power. Unplug the chair from the wall and disconnect any battery backup. Do not work on the mechanism while power is connected.
2. Position and support the chair. Place it where the underside can be reached safely. Support the chair and moving sections securely so they cannot drop, close or shift.
3. Record the original installation. Photograph the actuator orientation, mounting points, cable routing, connectors, pins, clips, washers and spacers before removing anything.
4. Disconnect the electrical plugs. Release connector tabs where fitted and pull on the plug housings, not the wires. Do not twist, cut or force the connectors.
5. Support the actuator. Hold its weight before removing mounting hardware. Remove the retaining clips, clevis pins or bolts one end at a time and keep all reusable hardware in its original order.
6. Compare old and new parts. Confirm the model, connectors, mounting points and overall physical configuration match before installation. Do not force a mismatched actuator into place.
7. Fit the replacement. Install the TA6-1015-002 in the same orientation as the original. Align the mounting holes without using the motor to force alignment, then refit the original pins, clips, washers, spacers or bolts securely.
8. Reconnect and route cables. Push matching connectors fully home and route cables as originally fitted, clear of linkages, sharp edges and pinch points.
9. Check the mechanism by hand. Remove tools and confirm that hardware is secure and nothing obstructs the chair mechanism.
10. Restore power and test carefully. Keep people and objects clear. Test briefly in both directions while watching the actuator, mounts and wiring. Stop immediately if the chair binds, makes unusual noises or moves incorrectly.

Do not operate the actuator for more than 2 minutes continuously. Allow at least 18 minutes off before further operation, in line with its rated duty cycle.

Frequently asked questions

Is this a genuine TiMotion actuator?

Yes. This is a genuine TiMotion TA6-1015-002 lift chair actuator.

What is the La-Z-Boy part number?

The associated La-Z-Boy part number is 10.0000.30.0102.

What are its electrical and load ratings?

The label specifies DC 24V power, a maximum current of 5.5A and a maximum push load of 6000N.

What is the duty cycle?

The rated duty cycle is 10%, with a maximum of 2 minutes running followed by 18 minutes off.

Will it fit every La-Z-Boy lift chair?

No. It is found in selected La-Z-Boy lift chairs, but the exact model or part number, connectors, mounting points and dimensions must match the original actuator.

Does it include a power lead?

Yes. It comes with the matching I/O power lead for a plug-and-play connection in a compatible system.

Can CouchGuard help confirm compatibility?

Yes. Call or email us with clear photos of the original actuator label, connectors and full actuator so we can help compare it before you order.
