Buy Universal Light Brown Recliner Lever & Drive Tube Options

Universal Light Brown Recliner Lever and Drive Tube Options

Repair a compatible manual recliner with the light brown replacement lever, extension-tube and 595 mm drive-tube options in this listing. Select the individual part or complete kit that matches the original mechanism.

Available options

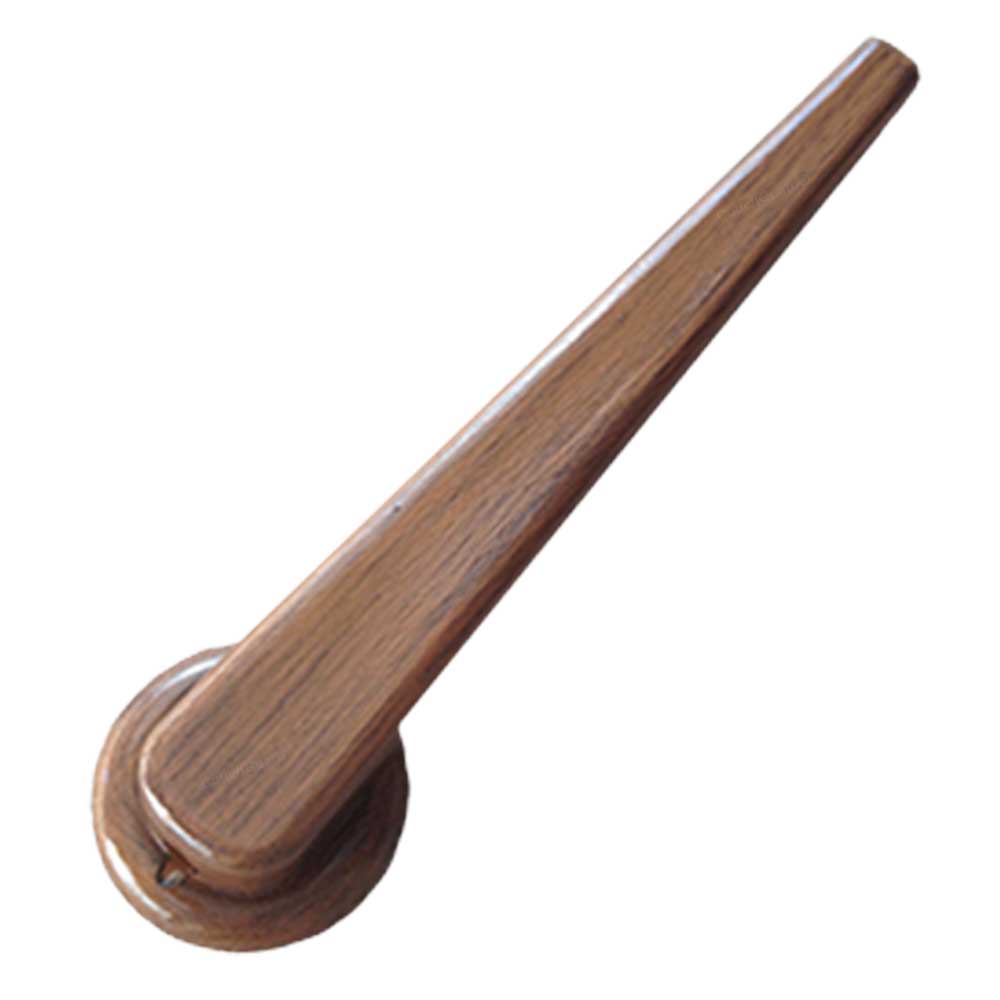

• Lever for 1/2-inch / 12.7 mm input shaft
• Lever for 15 mm input shaft

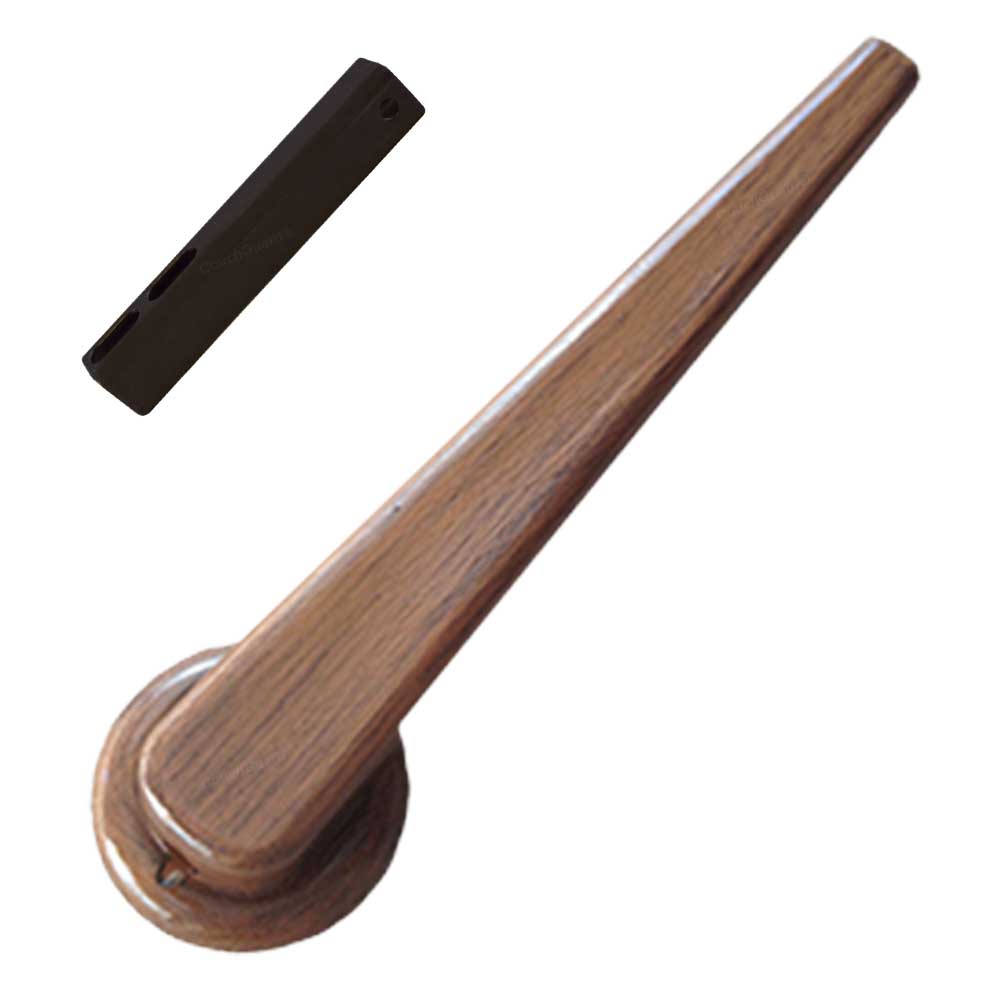

• 5/8-inch lever with extension tube

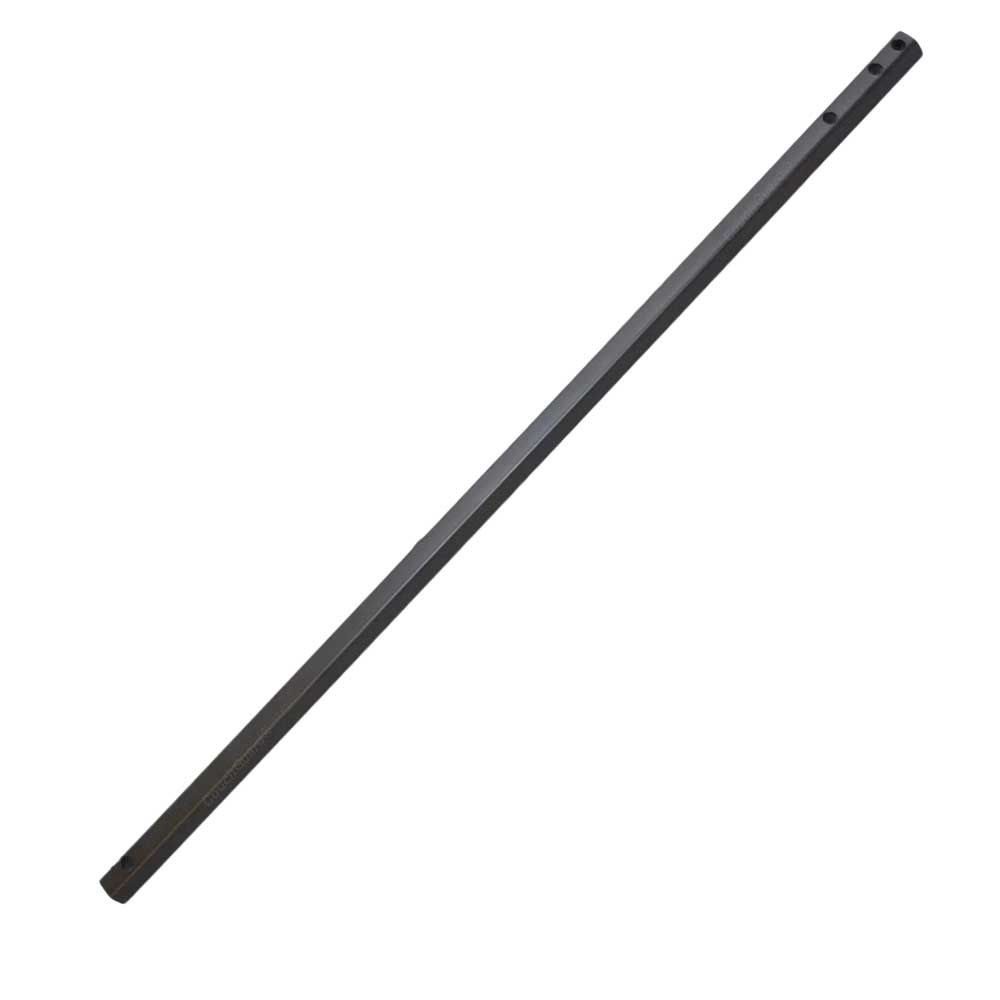

• 595 mm drive tube for a 5/8-inch lever

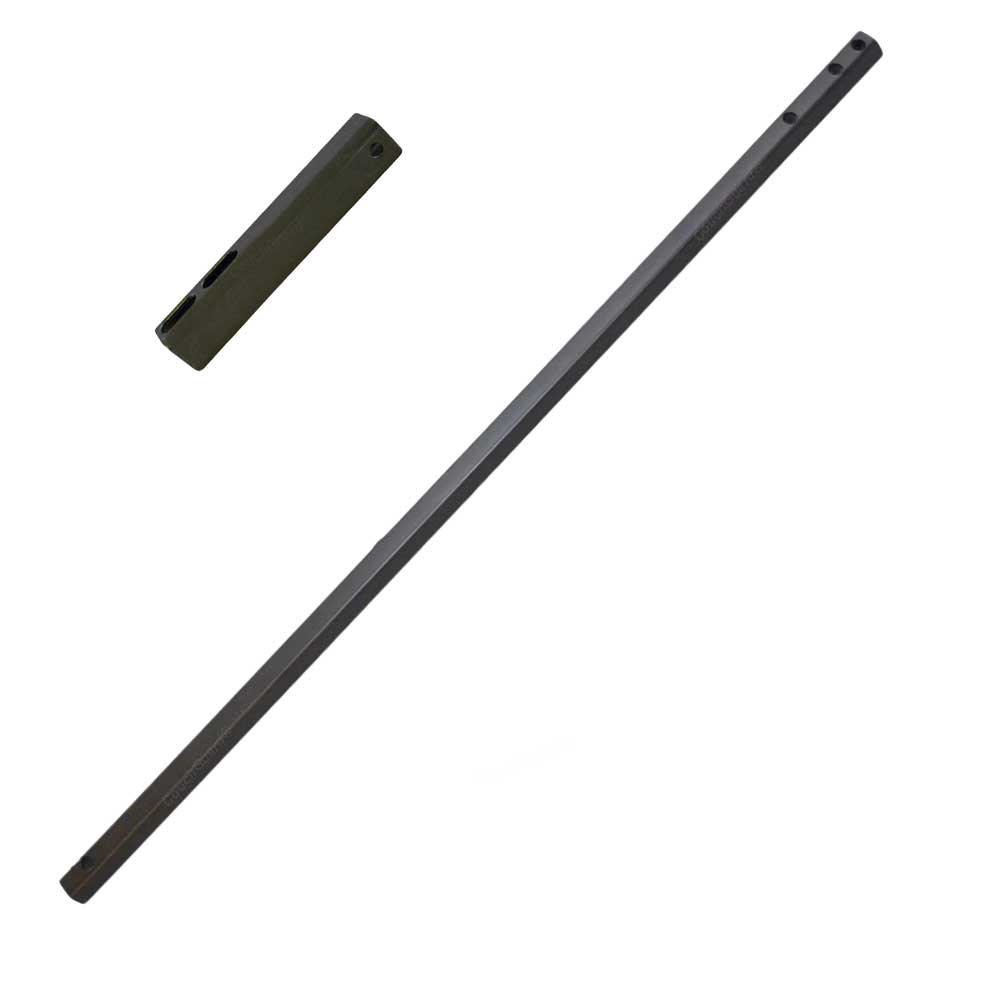

• 595 mm drive tube with extension tube

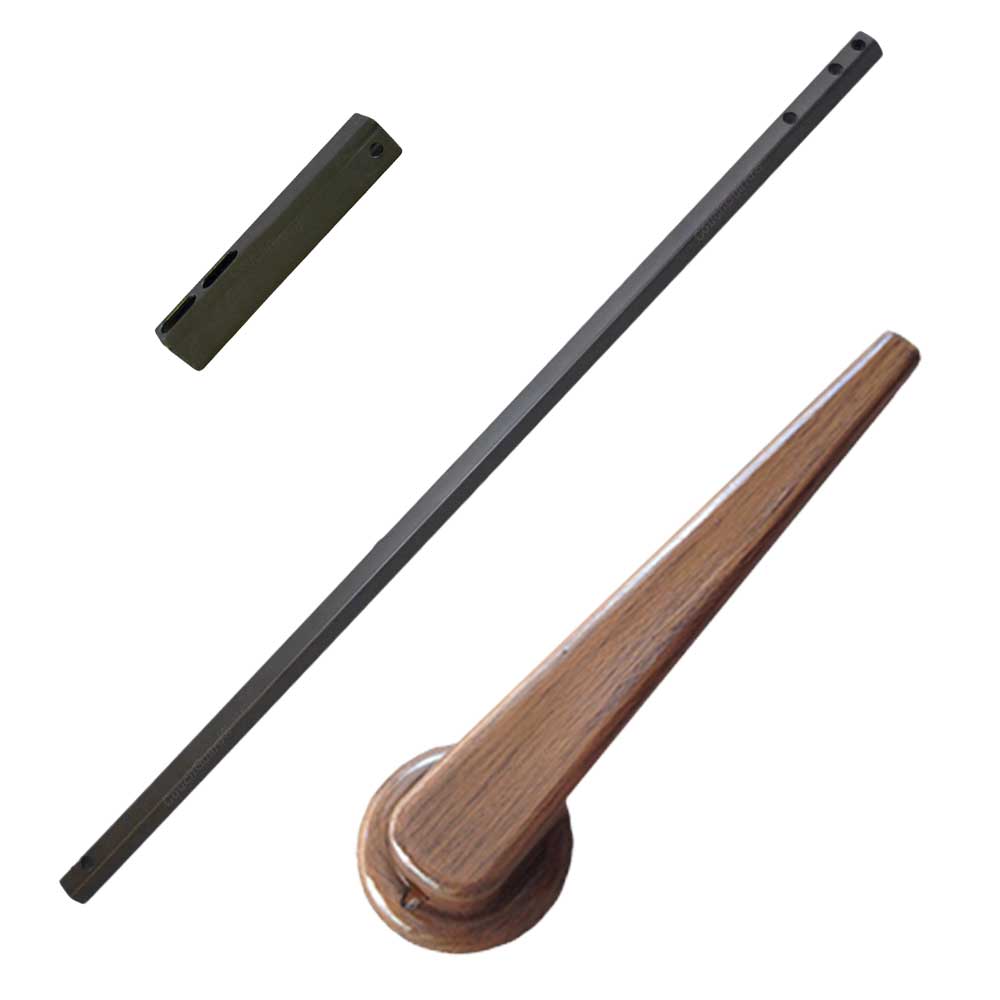

• Complete 595 mm drive-tube kit with extension tube and 5/8-inch lever

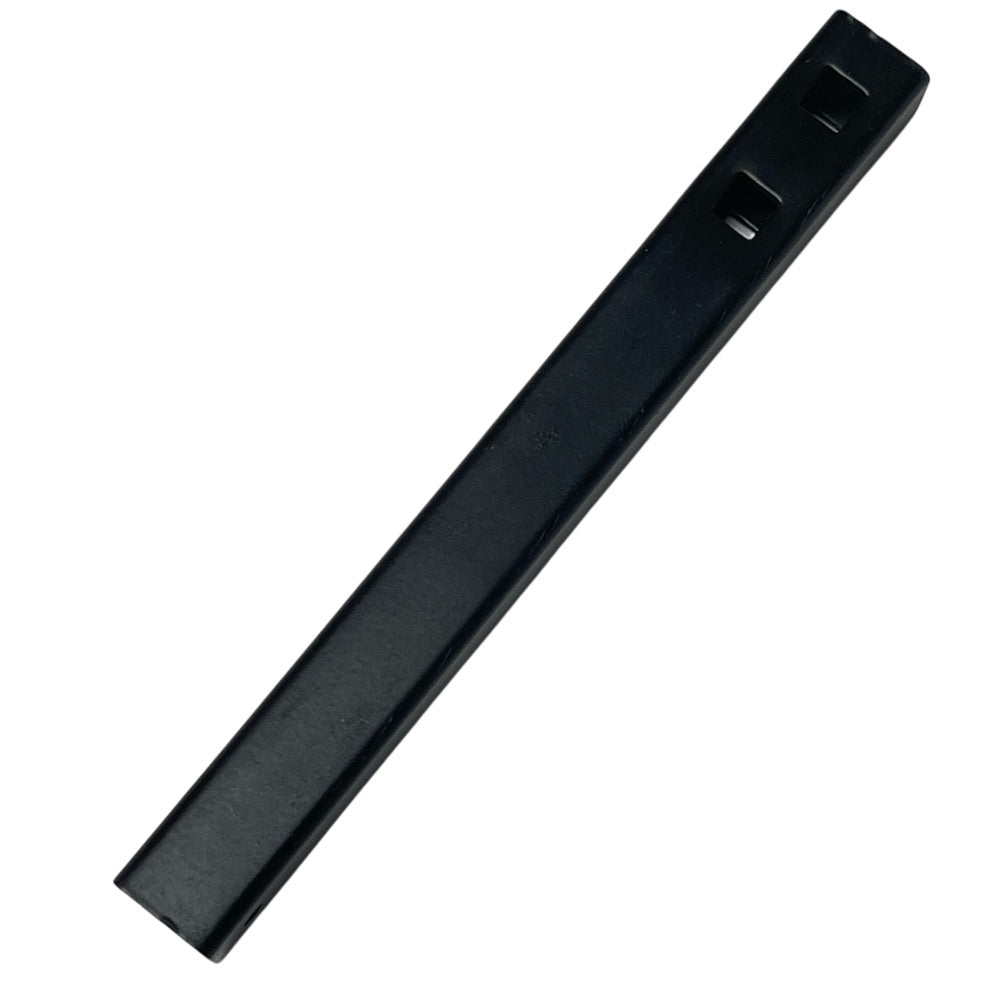

• 5/8-inch extension tube only

Measure before ordering

Universal fit requires matching dimensions. Measure the original lever input shaft, drive-tube length and extension-tube profile before choosing an option. The listed drive tube is 595 mm long. The 5/8-inch extension tube is approximately 150 × 16 mm and has two small square holes at one end and one small round hole at the other.

Compatibility

These parts suit many manual recliners with matching lever shafts and drive-tube dimensions. Brand name alone does not confirm fit. La-Z-Boy and other recliners can use different mechanisms, so compare the original measurements and connection points.

Frequently asked questions

How do I choose the correct lever size?

Measure the diameter of the original input shaft accurately. Select the 12.7 mm, 15 mm or 5/8-inch option that matches it.

What is the 595 mm drive tube?

It is the cross-drive tube used by compatible manual recliner mechanisms. Measure the full original tube before ordering.

When do I need an extension tube?

Choose an extension-tube option when the original tube is twisted, worn or missing and its dimensions and hole pattern match the listed part.

What is included in the complete drive-tube kit?

The complete option includes the 595 mm drive tube, extension tube and 5/8-inch lever.

Will these parts fit every recliner?

No. They are universal replacement options for mechanisms with matching shaft sizes, tube length, profile and connection points.

Will they fit a La-Z-Boy recliner?

Only when the original shaft and drive components match the selected option. Confirm measurements rather than relying on the chair brand.

What should I send CouchGuard for help?

Send clear photos of the lever, shaft, drive tube, extension tube and all measurements before ordering.
