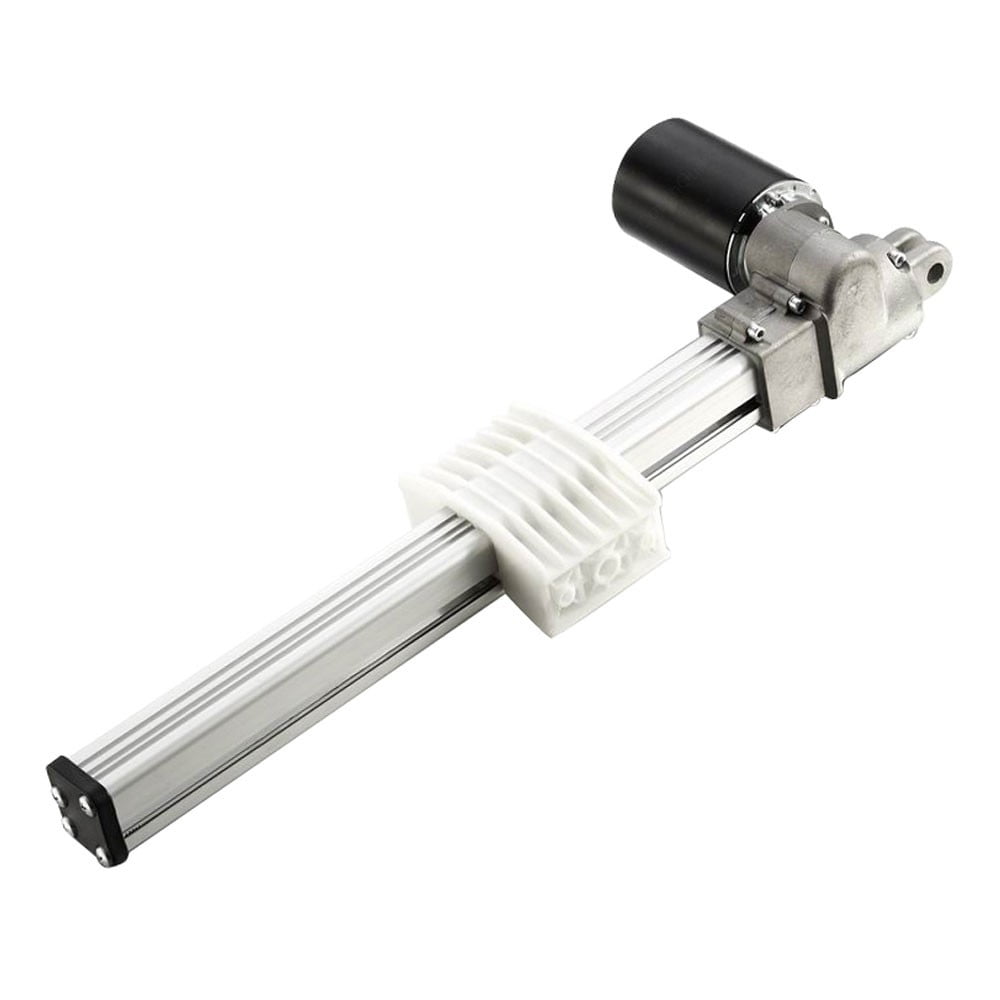

Kaidi KDPT006-20 Recliner Actuator Motor

Looking for the KDYJT006-20? Click here to view the Kaidi KDYJT006-20 actuator. Check the complete model number on your original actuator before ordering.

Replace a faulty matching recliner motor with the genuine Kaidi KDPT006-20 actuator. It has a 266mm stroke, 4000N maximum load and 10mm/s operating speed, with a DC 29V, 75W input. A single attached lead ends in a five-pin male DIN plug.

This is a model-specific replacement, not a universal recliner motor. Match your original actuator's complete reference, mounting measurements and electrical connections before ordering.

Technical specifications

• Manufacturer: Changzhou Kaidi Electrical Inc.
• Model and manufacturer part number: KDPT006-20
• Stroke: 266mm
• Maximum load: 4000N
• Operating speed: 10mm/s
• Rated voltage: DC 29V
• Rated input power: 75W
• Maximum duty cycle: 2 minutes ON followed by 18 minutes OFF (10%)
• Connection: five-pin male DIN plug on a single attached lead

Check compatibility before ordering

Compare the full KDPT006-20 model number, mounting-end shapes, fixing-pin sizes, retracted and extended mounting-pin centre distances, stroke, connector orientation and wiring with your original assembly. A matching five-pin plug alone does not confirm compatibility. Do not assume another Kaidi model or a higher load rating makes an actuator interchangeable.

Installation and fault diagnosis

Disconnect mains power and any battery supply before inspection. Support the chair mechanism against unexpected movement and follow the chair manufacturer's service instructions. Keep wiring clear of moving parts, do not force connectors or alter wiring, and use a qualified repair technician if unsure. Observe the maximum duty cycle and use a matching Kaidi power supply.

A chair that will not move can also have a power-supply, handset, controller or cable fault. Confirm the cause before ordering a replacement actuator.

Help matching your replacement

Contact CouchGuard on 1300 268 244 with clear photos of your original model label, mounting ends and connector, together with the mounting measurements and chair details.

Frequently asked questions

What is the Kaidi KDPT006-20?

It is a genuine Kaidi replacement linear actuator for a matching powered recliner installation. Use the full model reference and installation measurements to identify the correct replacement.

What are its stroke, speed and load ratings?

The KDPT006-20 has a 266mm stroke, 10mm/s operating speed and 4000N maximum load. Stroke describes travel, not overall motor length or mounting length.

What voltage and power does it require?

Its rated input is DC 29V, 75W. Use a compatible Kaidi supply and matching chair control system; do not connect the actuator directly to mains electricity.

Which connector does it have?

It has a five-pin male DIN plug on a single attached lead. Check pin layout, keying, orientation and wiring against your original connection before ordering.

How long can the actuator run?

The maximum duty cycle is 2 minutes ON followed by 18 minutes OFF, equivalent to 10%. Do not operate it continuously or exceed this duty cycle.

Will it fit every recliner with a Kaidi motor?

No. Match the KDPT006-20 model, stroke, mounting dimensions, fixing points, voltage and complete connection configuration. Similar appearance or plug shape is not enough.

Will replacing the actuator fix a recliner that has stopped moving?

Only if the actuator is the cause. A failed supply, handset, controller or damaged cable can produce similar symptoms, so diagnose the fault before replacing parts.

Can CouchGuard help confirm the correct part?

Yes. Call 1300 268 244 with the original actuator model, clear label and connector photos, chair details and mounting measurements so the configuration can be checked before purchase.
